Description

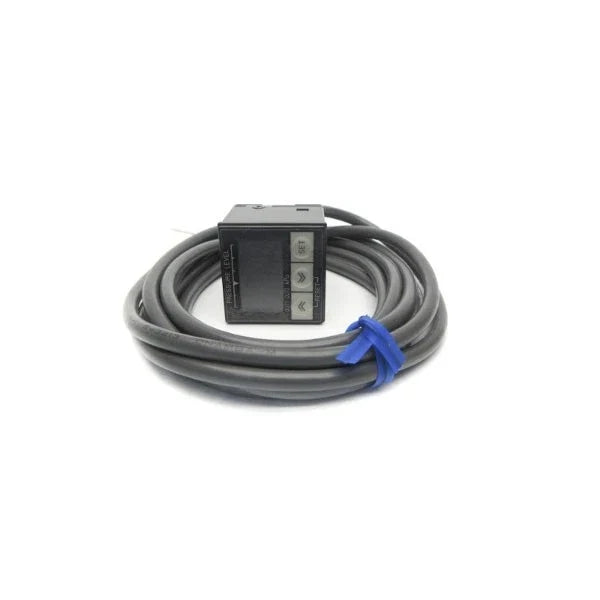

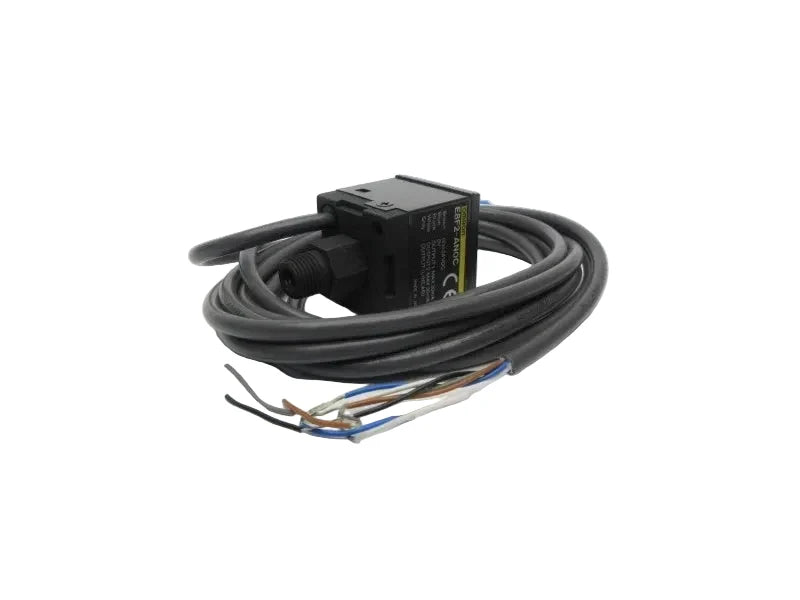

The Omron E8F2-AN0C is a compact vacuum pressure sensor designed for precise monitoring of negative pressure in industrial automation systems. It measures pressure in the range of 0 to -101 kPa and provides both analog and digital output signals for control applications. This sensor is commonly used in vacuum systems, pneumatic equipment, and process monitoring environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Sensors & Switches |
| Part Number |
E8F2-AN0C |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
E8F2 |
| Pressure Type |
Vacuum / Gauge |
| Operating Pressure Range |
0 to -101 kPa |
| Maximum Pressure |
-400 kPa |
| Output Type |
Analog voltage and NPN open collector |
| Analog Output Range |
1–5 VDC |
| Supply Voltage |
12–24 VDC |
| Accuracy |
±3% |
| Port Size |
M5 female / 1/8 in threaded |
| Mounting Type |
Panel mount |
| Operating Temperature |
0°C to 55°C |
| Dimensions |
36 × 28 × 28 mm |
| Weight |
3.88 oz |
Information About E8F2-AN0C

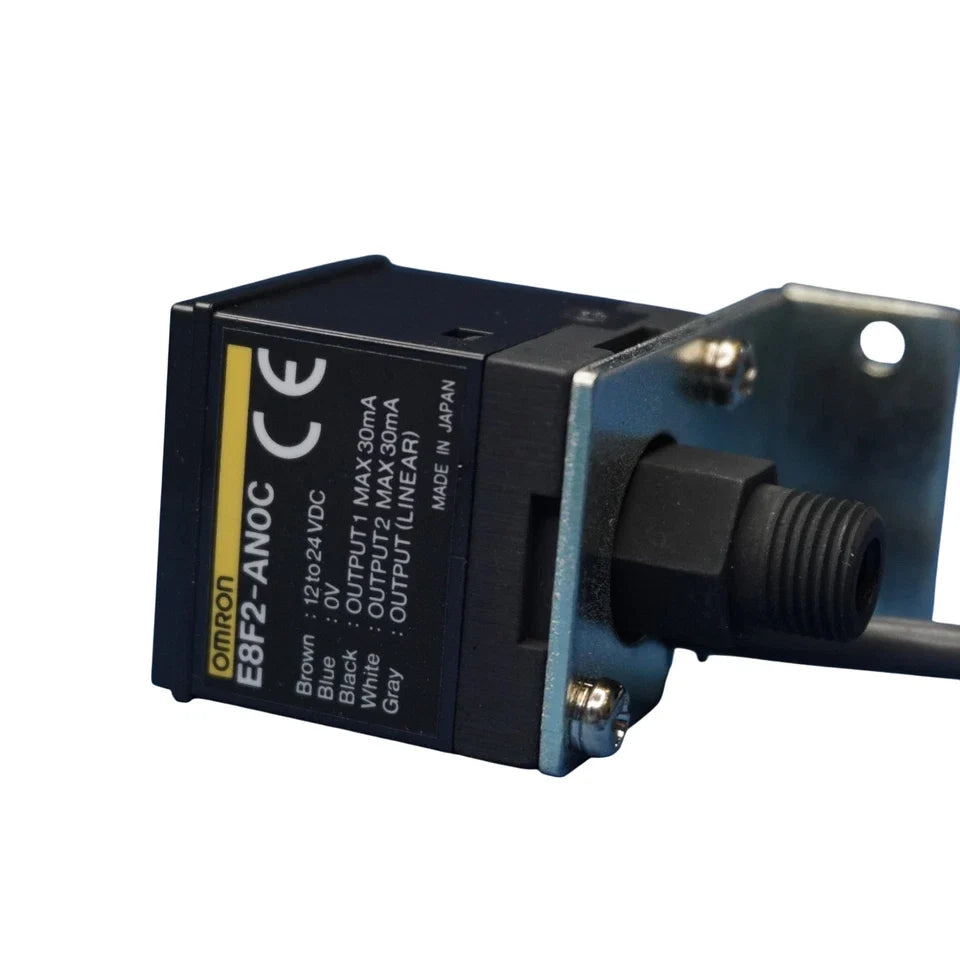

The E8F2-AN0C is part of the Omron E8F2 series of compact pressure sensors engineered for industrial automation and pneumatic control systems. It uses a vacuum sensing mechanism to detect pressure changes and converts them into electrical signals for monitoring and control equipment. The sensor provides a 1–5 V analog output along with digital open-collector outputs for integration with PLCs and control circuits. Its compact cube-style housing with panel mounting capability allows installation in machinery, control panels, and vacuum systems where space is limited.
Key Features:
-
Vacuum Pressure Measurement: Detects negative pressure from 0 to -101 kPa for vacuum system monitoring.
-
Analog Output Signal: Provides a linear 1–5 VDC output for accurate process measurement.
-
Digital Switching Output: Includes NPN open-collector outputs for direct PLC interface.
-
Compact Sensor Design: Mini-cube housing allows installation in tight industrial spaces.
-
Panel Mount Installation: Designed for mounting in machine panels or equipment frames.
-

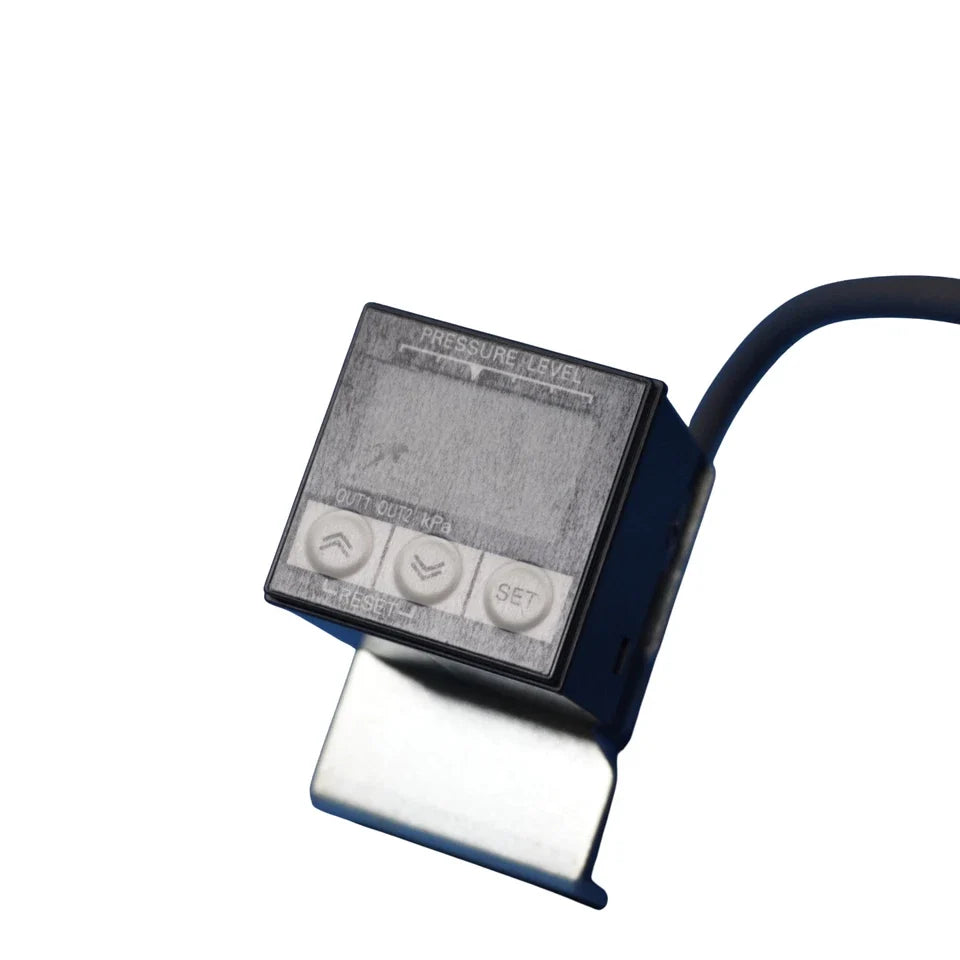

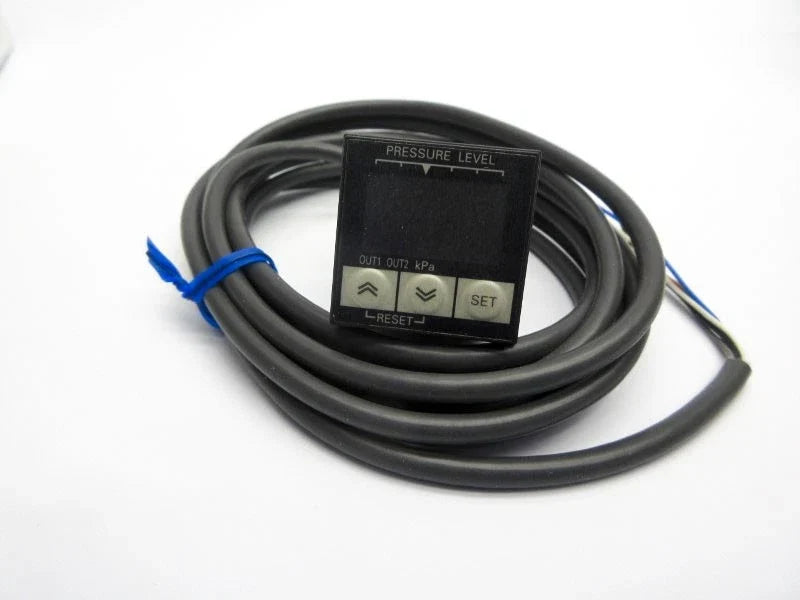

LED Display Integration: Enables visual monitoring of pressure levels during operation.
-

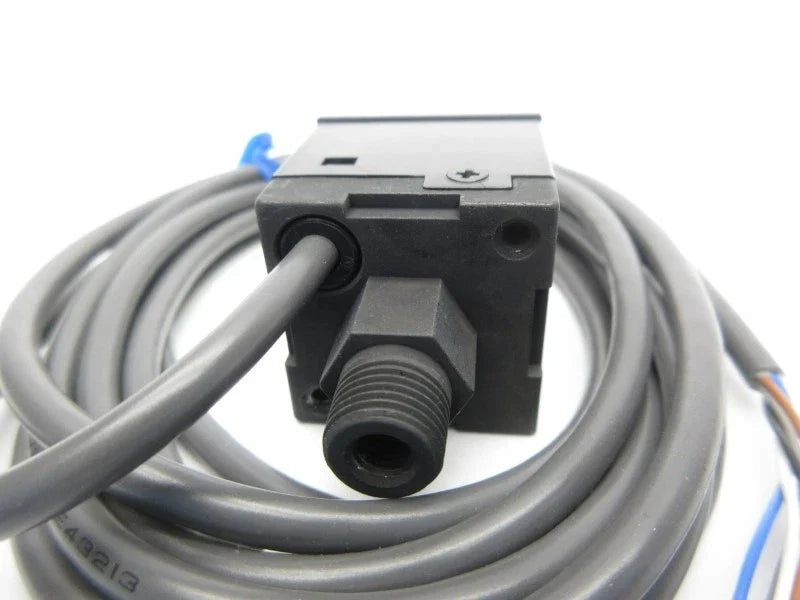

Dual Port Compatibility: Supports M5 female and 1/8-inch threaded pressure ports.
-
Industrial Automation Integration: Suitable for vacuum control, pneumatic systems, and process monitoring.
The E8F2-AN0C delivers the reliability and precision required for vacuum pressure monitoring in industrial automation and pneumatic control systems.
