Description

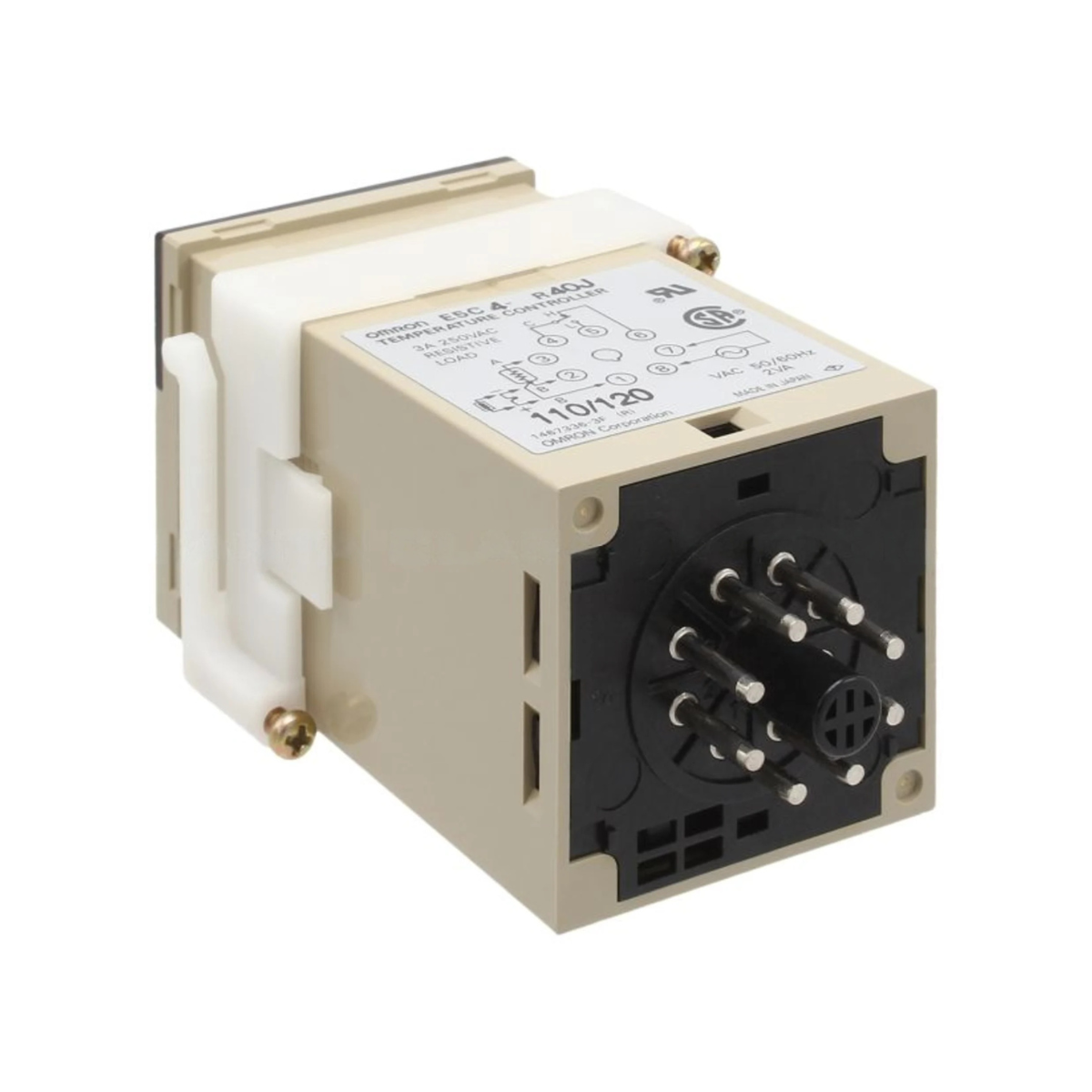

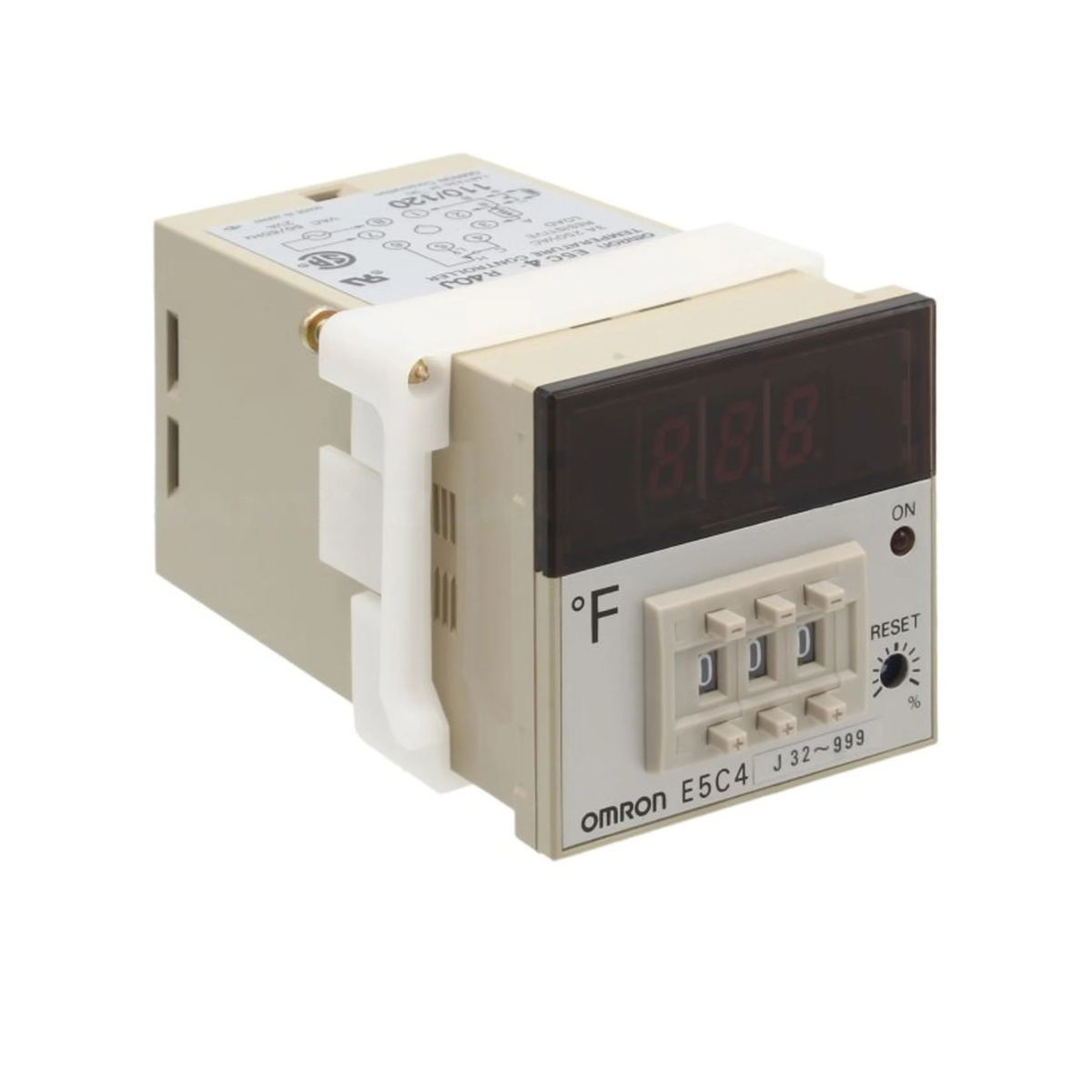

The Omron E5C4-R40J is a compact 1/16 DIN temperature controller that combines digital indication and digital setting for precise thermal management. Designed for applications using Type J thermocouples, it offers reliable proportional-derivative (PD) control and relay output for heating or cooling operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
E5C4-R40J |
| Subcategory |
Temperature/Process Control |
| Series |
E5C4 |
| Control Method |
Proportional Derivative (PD) |
| Input Type |
Thermocouple Type J |
| Temperature Range |
0 to 399°C (32 to 999°F) |
| Output Type |
Relay |
| Power Supply |
110/120 VAC |
| Mounting Type |
Panel Mount (1/16 DIN) |
| Setting Method |
Digital |
| Weight |
0.46 lbs |
Information About E5C4-R40J
The E5C4-R40J is part of Omron’s E5C4 series of compact temperature controllers, offering easy-to-read digital indication and adjustable digital setpoint functionality. With an input range of 0 to 399°C (32 to 999°F), it is compatible with Type J thermocouples and is ideal for medium-temperature process control. This model operates on a 110/120 VAC power supply and provides relay output for switching external loads. Its PD control algorithm helps reduce overshoot and improve stability in temperature-sensitive applications. Its 1/16 DIN form factor ensures easy integration into control panels and process equipment.
Key Features:
- Wide Temperature Range: Supports 0 to 399°C (32 to 999°F), suitable for industrial heating and cooling processes.
- Digital Setting and Indication: Ensures accurate input and real-time monitoring of temperature values.
- PD Control Algorithm: Offers proportional-derivative control for stable and responsive thermal regulation.
- Thermocouple Compatibility: Supports Type J input for general-purpose industrial temperature sensing.
- Relay Output: Allows direct switching of heating or cooling devices via built-in electromechanical relay.
- Standard Power Supply: Operates on 110/120 VAC, compatible with common industrial voltage standards.
- Compact Size: 1/16 DIN panel mount design fits neatly into instrumentation panels or OEM systems.
- Reliable Performance: Designed for continuous temperature monitoring in production, ovens, or packaging machinery.
The E5C4-R40J provides precise, stable, and easily configurable thermal control for a wide range of industrial and OEM applications.
