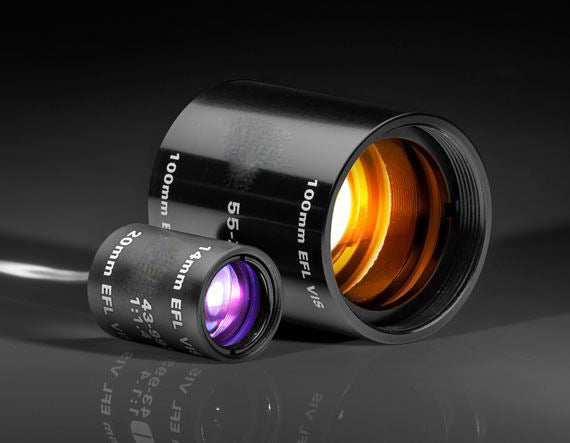

E-55272 1:1 with 50mm and 50mm EFL Achromats, 15mm Achromatic Pair
Product MGF2 Coating Curve
Clear Aperture CA (mm): 9.5
Center Air Spacing (mm): 3.01
Coating: MgF2 (400-700nm)
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Effective Focal Length EFL A (mm):50.00
Effective Focal Length EFL B (mm): 50.00

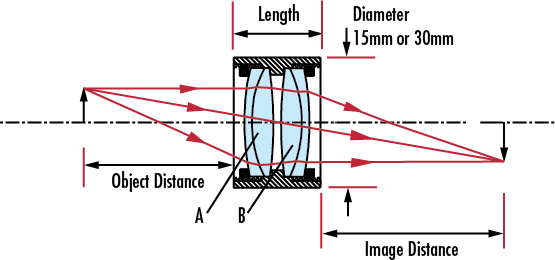

Housing Diameter (mm): 15 +0.0/-0.10
Housing Length (mm): 21 ±0.2
Lens Edge Spacing at Mount (mm):4
Object Distance (mm): 43.47
Image Distance (mm): 43.47
Construction: Achromat Pair in Anodized Aluminum Housing
Wavelength Range (nm): 400 - 700
Product Family Description
- 15mm and 30mm Diameter Options
- AR Coated Lenses
- Mounted Achromatic Pairs Kits Available
Our 15.0mm and 30.0mm Mounted Achromatic Pairs combine our popular TECHSPEC® achromats into common configurations used for relay and projection applications. Packaged in a slim-line aluminum housing, each pair is ready for integration into a host of OEM applications, eliminating the need to handle loose optics. Our 15.0mm pairs can be coupled into our C-mount components using our Helicoid Barrel Accessory. Each lens has also been oriented for optimum system performance. All lenses AR coated. Lower f/# pairs may not be ideal for imaging applications depending on the performance requirements. Cylinder lenses can be incorporated into empty barrels in order to generate lines or sheets of light.
