Description

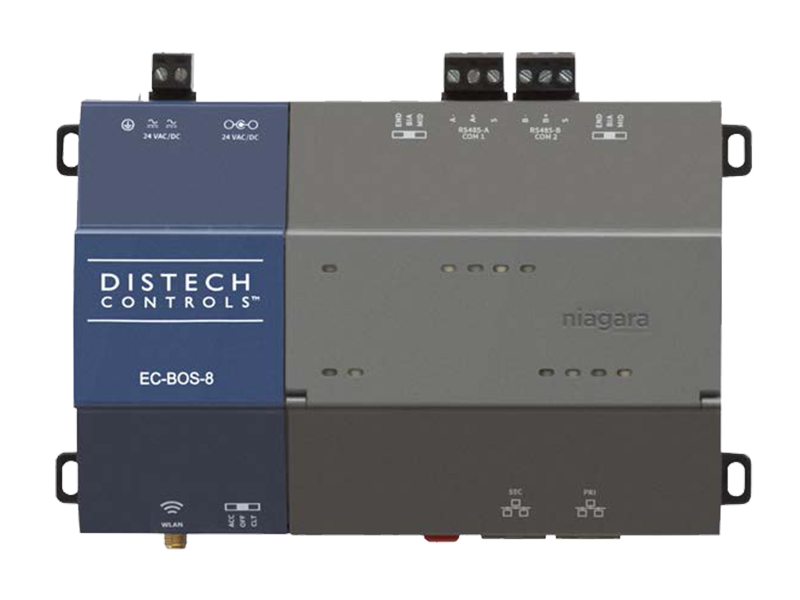

The Distech Controls EC-BOS-8 is an embedded building management controller and server designed to integrate HVAC, lighting, energy, security, and other automation systems into a single platform. Powered by the Niagara Framework®, it provides web-based supervision, data logging, alarming, scheduling, and network management for commercial facilities.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Distech Controls |
| Part Number |
EC-BOS-8 |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Module/Rack |
| Product Type |
Embedded Building Management Controller |
| Platform |
EC-Net™ Powered by Niagara Framework® |
| Primary Functions |
Network Management, Supervision, Data Logging, Alarming, Scheduling |
| Network Connectivity |
Ethernet, Wireless LAN, Internet |
| RS-485 Ports |
2 Isolated |
| Supported Protocols |
BACnet MS/TP, Modbus RTU, Wiegand |
| Expansion Options |
LonWorks® FTT-10A, RS-232, RS-485, Wiegand Modules |
| USB Interface |
USB Type-A |
| Applications |
HVAC, Lighting, Energy Management, Fire & Smoke, Access Control, Video Integration |
| Weight |
2.00 lb |
Information About EC-BOS-8
The EC-BOS-8 is part of the Distech Controls EC-Net™ building automation platform, serving as a central controller and integration server for multiple building systems. It supports Internet connectivity and browser-based management, allowing users to monitor and control facilities locally or remotely. The controller integrates numerous industry-standard communication protocols and offers modular expansion options for additional network interfaces. Its scalable architecture makes it suitable for applications ranging from small commercial buildings to large multi-building campuses.
Key Features:
- Niagara Framework® Platform: Delivers advanced building automation and system integration.
- Web-Based Management: Supports browser access for monitoring, configuration, and supervision.
- Multi-System Integration: Connects HVAC, lighting, energy, fire, access control, video, and industrial systems.
- Dual RS-485 Ports: Supports BACnet MS/TP, Modbus RTU, Wiegand, and other field networks.
- Expandable Communication: Compatible with optional LonWorks®, RS-232, RS-485, and Wiegand modules.
- Data Logging and Alarming: Provides historical trending, event notifications, and scheduling functions.
- Remote Connectivity: Supports Ethernet, wireless LAN, and Internet-based access.
- USB Backup Port: Enables station backup and restore using a USB Type-A connection.
The EC-BOS-8 delivers the reliability, scalability, and performance required for advanced building automation and network management.
