Description

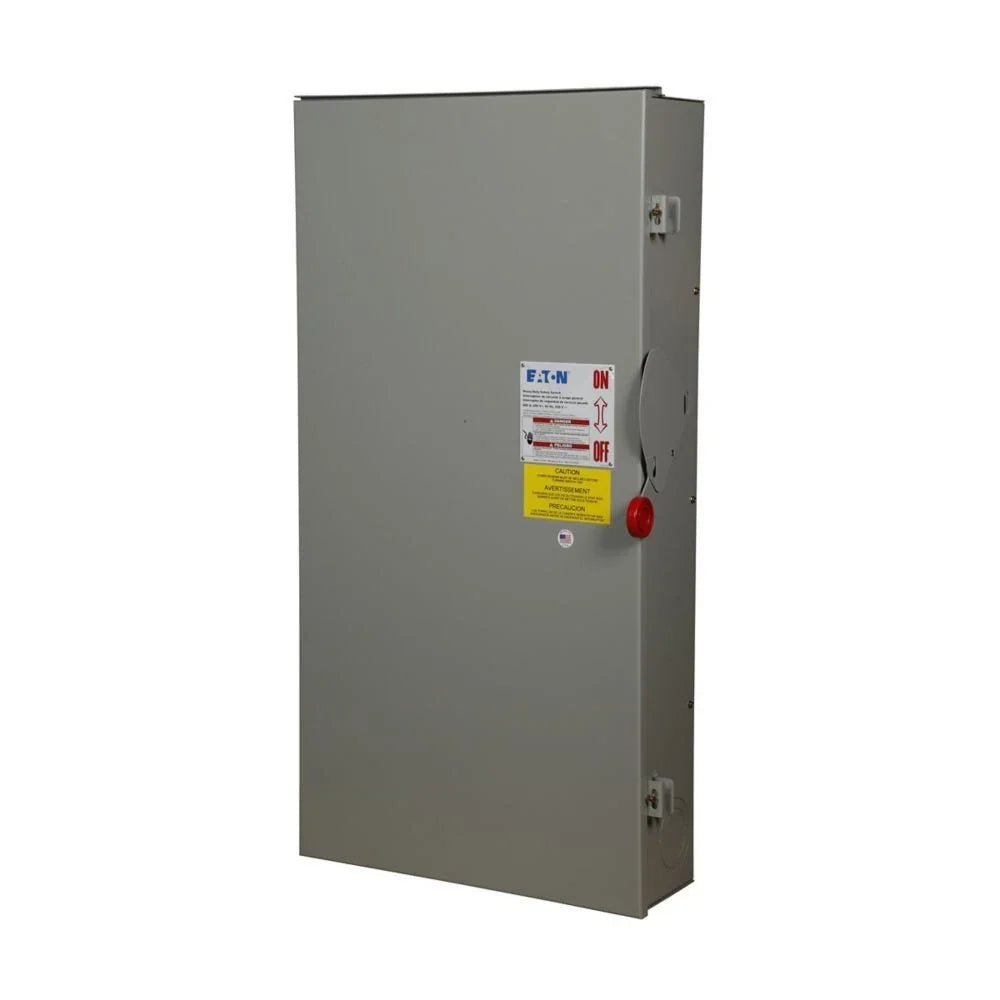

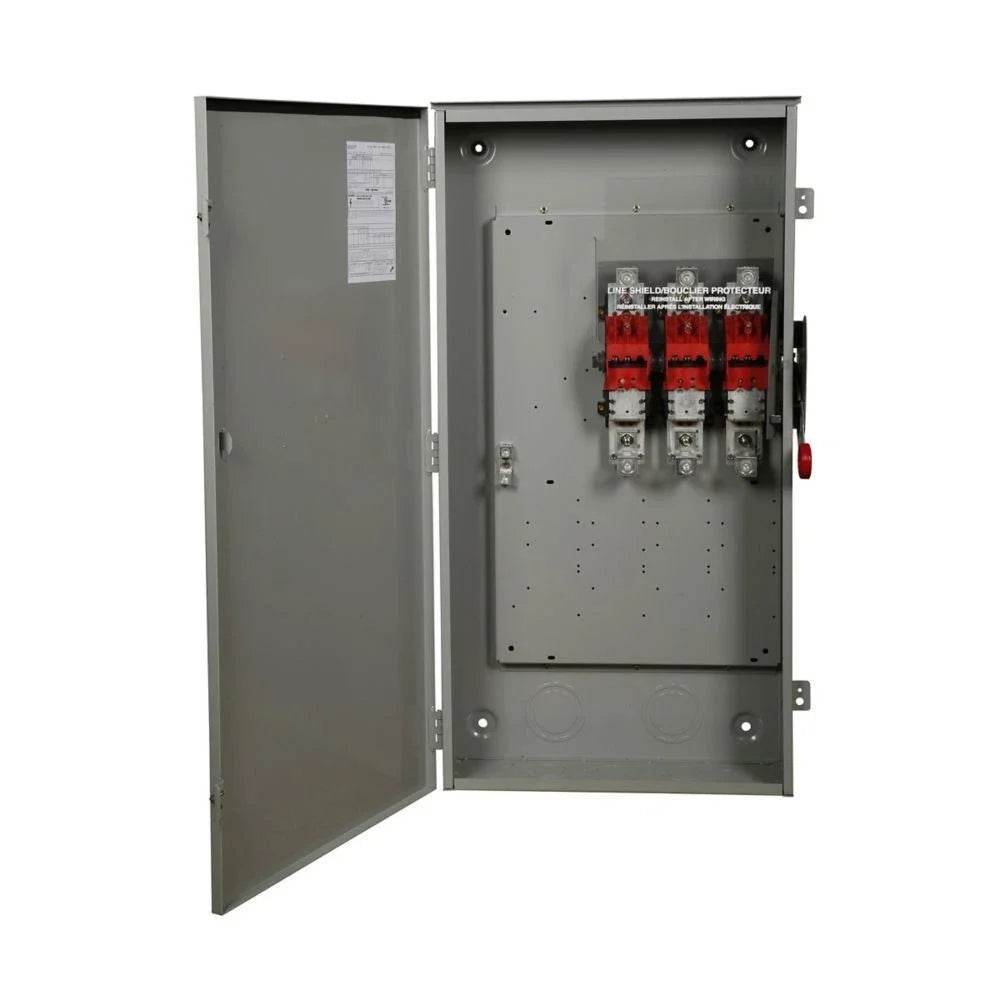

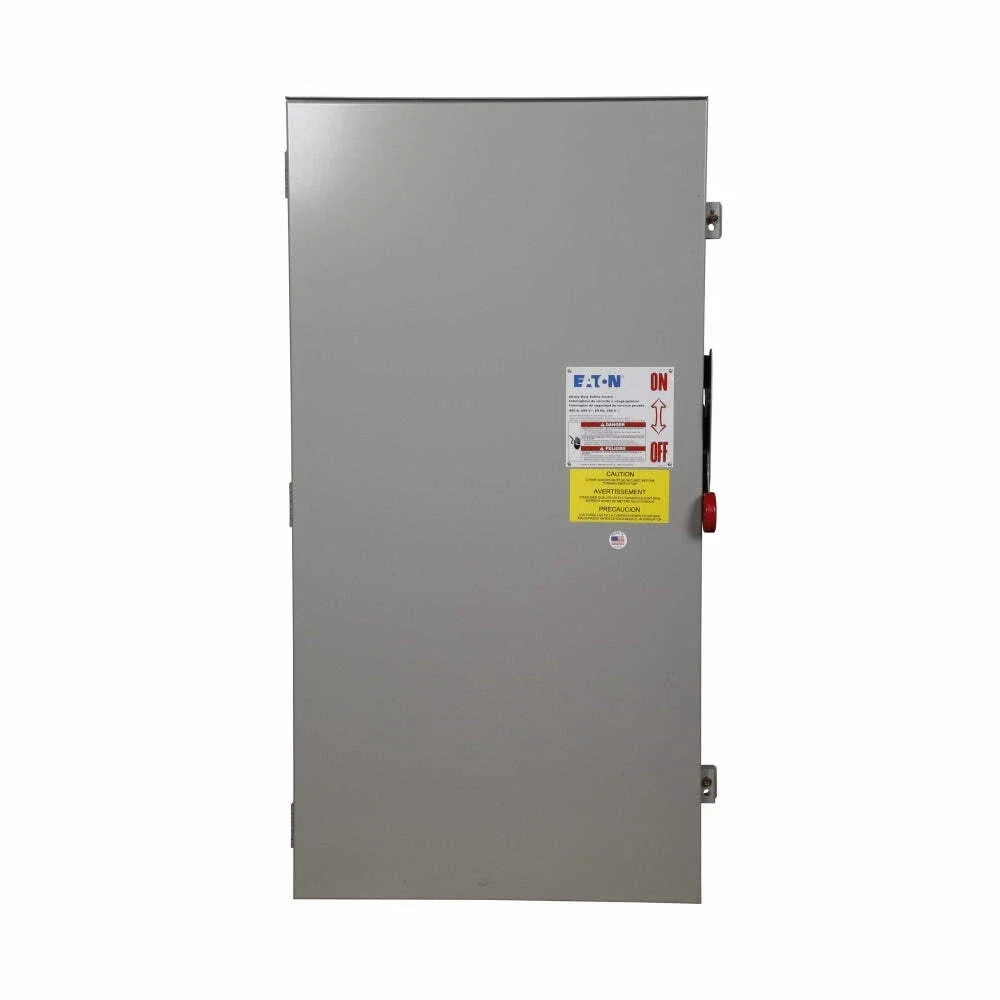

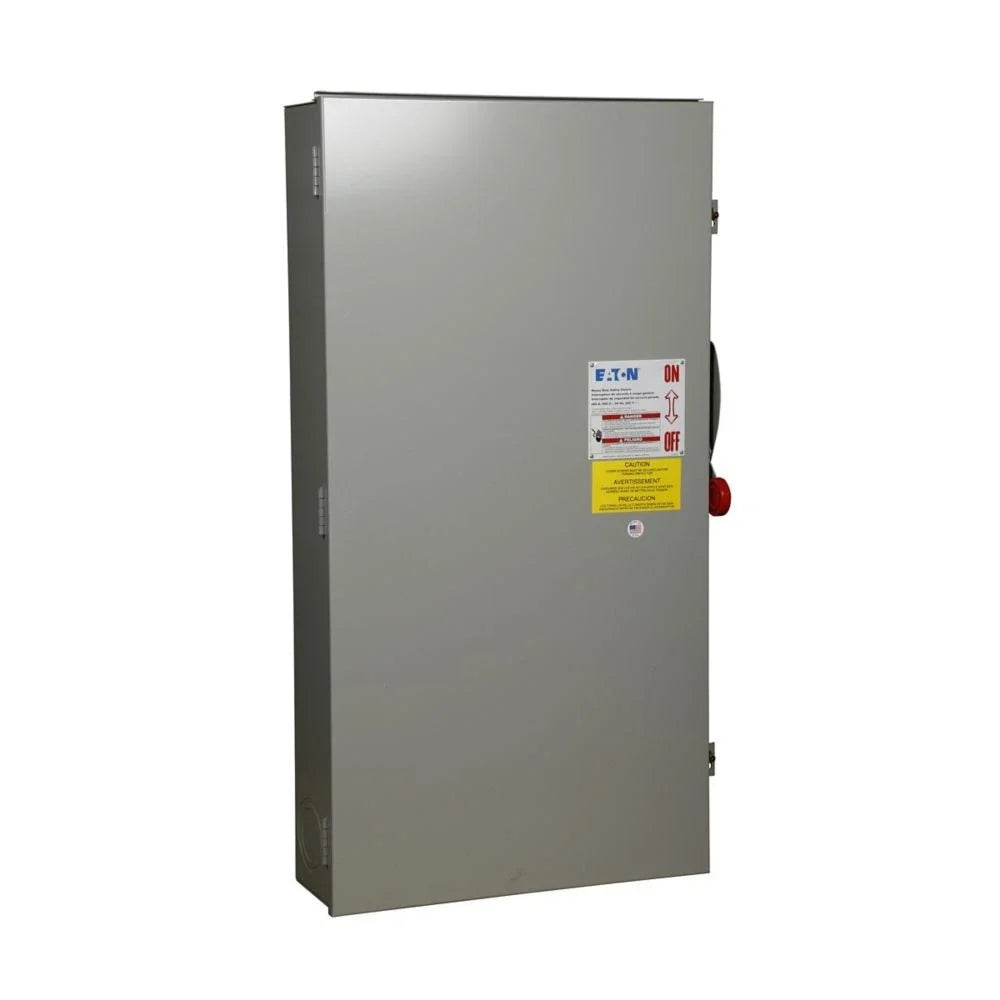

The Eaton DH365URK is a heavy-duty non-fusible safety switch designed to provide secure electrical disconnect for high-capacity industrial and commercial power systems. Manufactured by Eaton, the DH365URK features a 400 amp rating with a three-pole configuration and supports voltages up to 600 volts AC. Its rugged NEMA 3R enclosure and durable construction ensure reliable operation in both indoor and outdoor environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
DH365URK |
| Subcategory |
Safety Switch |
| Switch Type |
Heavy-Duty Non-Fusible Disconnect |
| Amperage Rating |
400 A |
| Voltage Rating |
600 V AC |
| Number of Poles |
3 |
| Number of Wires |
3 |
| Phase Compatibility |
1 or 3 Phase |
| Throw Type |
Single-Throw |
| Enclosure Rating |
NEMA 3R |
| Enclosure Material |
Painted Galvanized Steel |
| Fuse Configuration |
Non-Fusible |
| Maximum HP Rating (240V AC 3Ø) |
125 HP |
| Maximum HP Rating (480V AC 3Ø) |
250 HP |
| Maximum HP Rating (600V AC 3Ø) |
350 HP |
| Maximum HP Rating (250V DC) |
50 HP |
| Height |
44.31 in |
| Length |
24.12 in |
| Width |
12.39 in |
| Weight |
Approx. 75 lb |
Information About DH365URK
The DH365URK is part of Eaton’s heavy-duty safety switch product line engineered for dependable power isolation and switching in demanding electrical installations. Designed as a non-fusible single-throw disconnect, it allows safe manual disconnection of power in circuits without integrated fuse protection. The unit supports three-phase, three-wire electrical systems and operates at voltages up to 600VAC, making it suitable for industrial equipment, motor circuits, and distribution systems. Constructed with a painted galvanized steel enclosure and NEMA 3R rating, it offers strong resistance to corrosion and environmental exposure in outdoor or harsh operating conditions.
Key Features:
- 400 Amp Current Rating: Supports high-load electrical circuits in industrial and commercial installations.
- Single-Throw Disconnect Mechanism: Provides straightforward and reliable manual circuit isolation.
- Non-Fusible Design: Ideal for applications where external circuit protection devices are used.
- Three-Pole Configuration: Designed for switching three-phase electrical systems.
- NEMA 3R Weather-Resistant Enclosure: Suitable for outdoor installations and environments exposed to rain or moisture.
- Durable Galvanized Steel Construction: Painted galvanized steel housing enhances corrosion resistance and structural durability.
- 600V Voltage Rating: Supports high-voltage distribution and equipment disconnect requirements.
- High Horsepower Capability: Rated for up to 350 HP at 600V AC for heavy-duty motor applications.
The DH365URK delivers the reliability and precision required for safe high-capacity electrical disconnect and power isolation in industrial power distribution systems.
