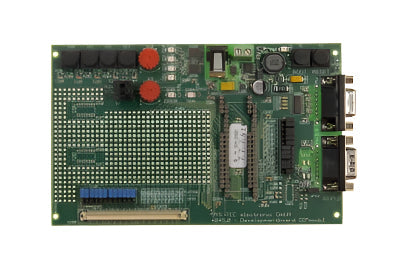

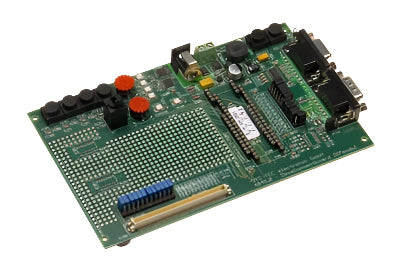

- EURO-card dimensions (160 x 100 mm)
- DB-9 socket for serial RS-232 interface connectivity
- DB-9 plug for CAN interface connectivity
- Insertable jumpers enabling configuration of I/O signals
- CAN bus interface circuitry
- RS-232 interface
- 4x push buttons for digital input simulation
- 4x user LEDs for digital output simulation
- 2x potentiometers for analog input simulation
- 1x general purpose input/output connector for easy connection of external peripheral devices
- 1x additional RUN-/STOP switch (for IEC1131-PLC-Chip)
- 2x additional LEDs for RUN/STOP and ERROR indication (for IEC1131-PLC-Chip)
- Wire wrap field supporting development of user-designed peripheral hardware
- Reset switch (configurable signal level)
- Boot switch (configurable signal level)
- Low voltage terminal block connects to a voltage regulator accepting an unregulated input voltage in a range from 8V to 13V
- Voltage regulator 5V (SYS-4002003) or 3.3V (SYS-4002026)
