[shortdesc]Display Link Technology provides universal compatibility with a wide range of PC brands and operating systems.

[/shortdesc]

[properties] [/properties] [specifications]

Technical Specifications	D6000S
Product Type	Docking Station
Host Connection	Choice of USB-C or USB-A
Video Ports	(2) DP 1.2, (1) HDMI 2.0
Max Resolution	5120 x 2880 @ 60Hz
Number of Displays Supported	Up to 3
USB Ports	(4) USB-A 3.2 Gen 1 (Incl. one with PowerShare) (1) USB-C 3.2 Gen 1 with PowerShare
Networking	Gigabit Ethernet (RJ-45)
Security Slot Type (cable lock sold separately	Kensington Slot
LED Indicators	White (Connected) / Amber (Disconnected)
Power	Up to 65W Dell / Non-Dell laptop (5V/9V/15V@3A and 19.5V@3.25A)
Dimensions	6.6 x 3.1 x 1.2 inches
Operating Systems	Microsoft® Windows® 7, 8, 8.1, 10 (32/64bit) or later, Ubuntu OS 14.04.2 or greater, Chrome OS Build 58 onwards, macOS (driver and driver support provided by DisplayLink)
Systems Requirements	PC’s equipped with USB-A or USB-C port, DisplayLink driver installation
Docking Interface	Separable Dual DisplayPort over USB-C
MAC Address	Pass Through MAC Address

[/specifications] [accesories] [/accesories]

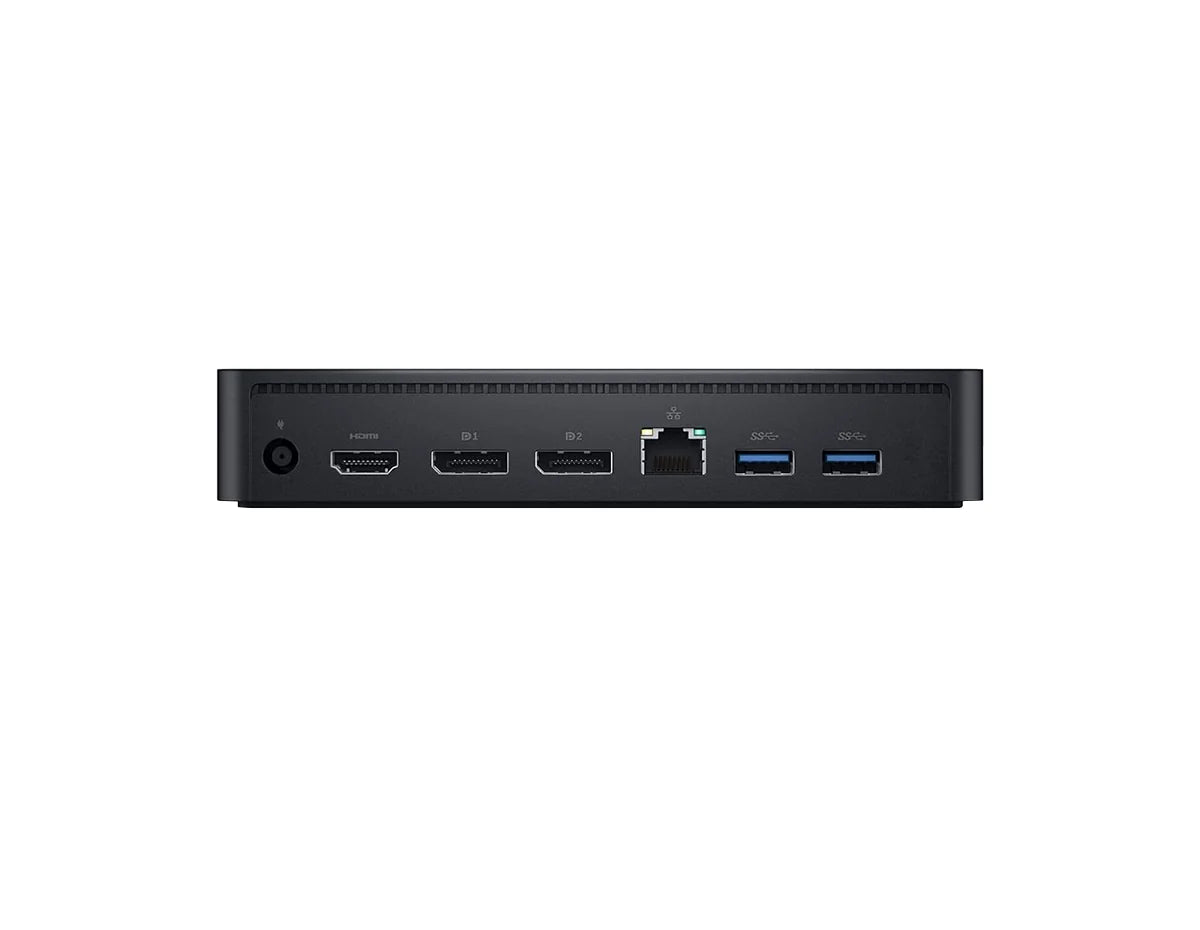

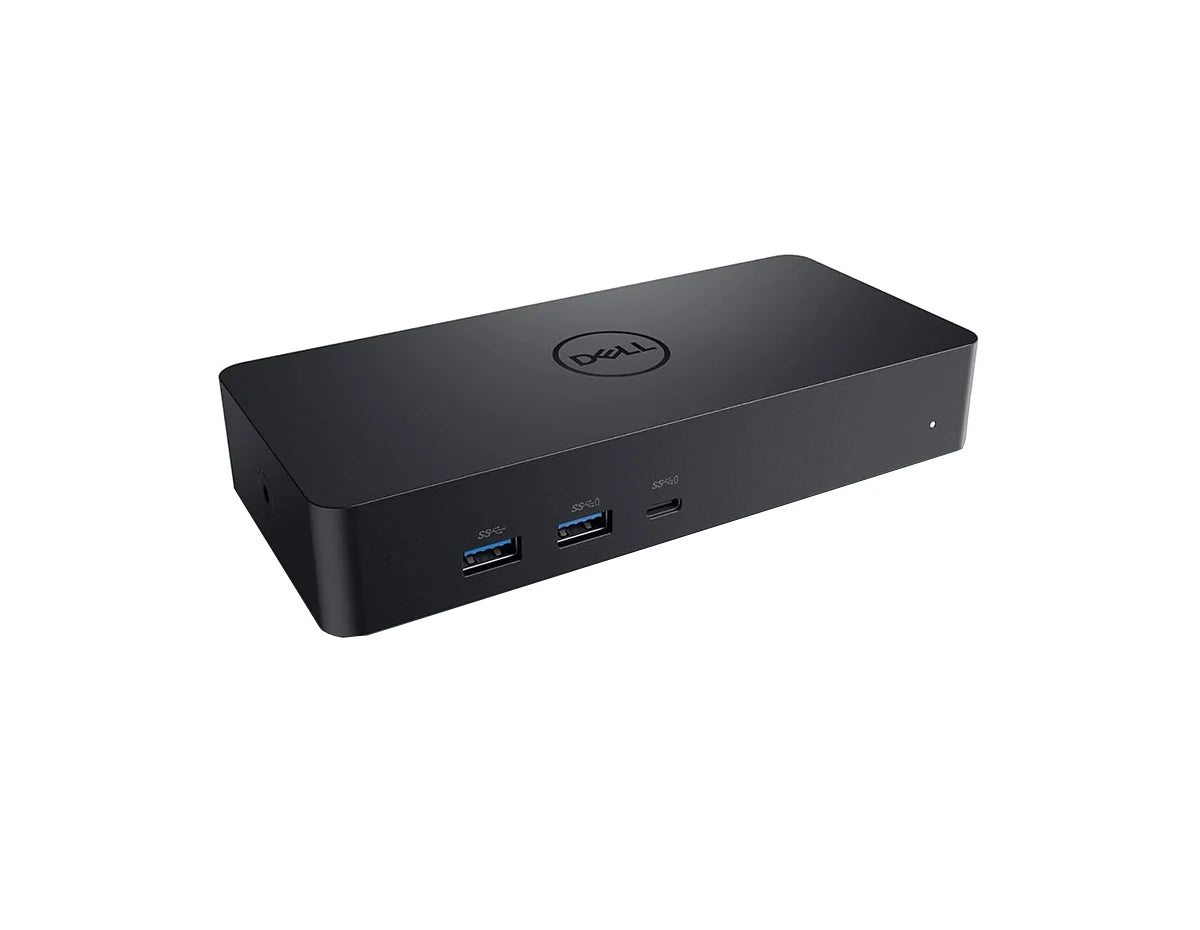

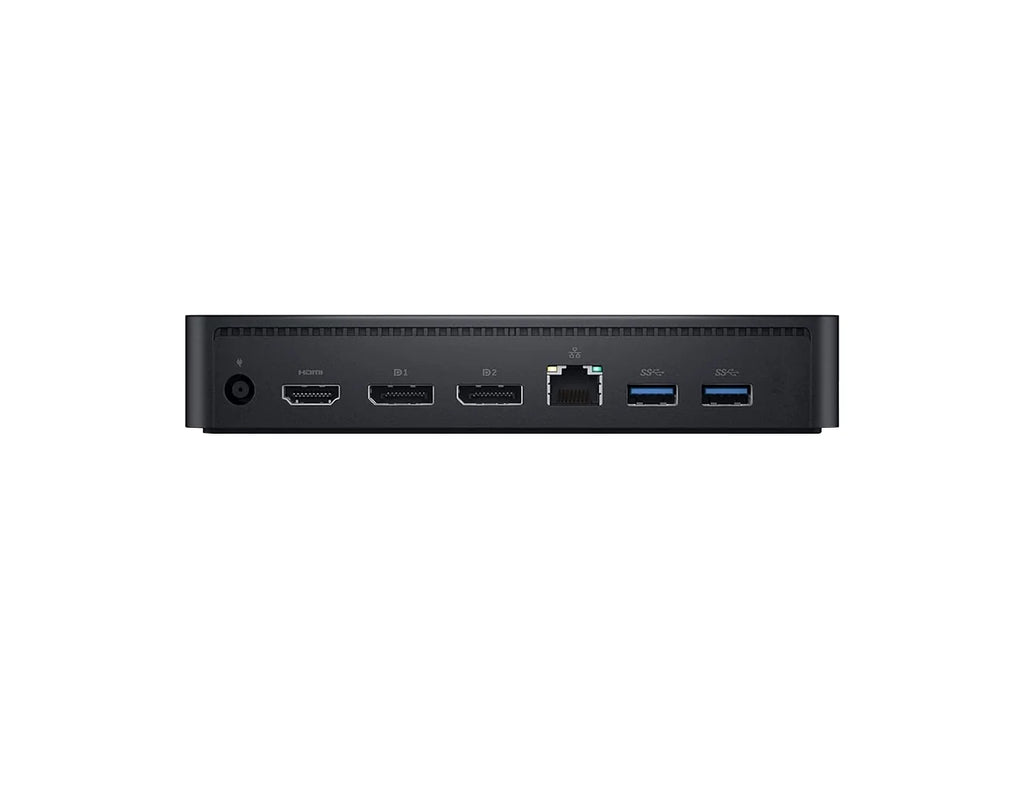

Dell D6000S Universal Dock

The Dell D6000S Universal USB Dock enables the connection of any device as a host through USB Type-C or USB Type-A. It supports the connection of three 4K monitors in triple display mode to enhance laptop productivity or the mirroring of the screen to a single 5K display using USB Type-C, two DisplayPort 1.2 ports, and one HDMI 2.0 port. Additionally, it allows for connecting high-speed peripherals, such as external drives, through the four USB 3.2 Gen 1 Type-A ports. The dock provides a total of 65W of power to charge the laptop via USB Type-C or USB Type-A, enabling the use of multiple ports while keeping the host device fully charged. Furthermore, it includes a Gigabit Ethernet port.

Quick Specs:

• Universal Docking Solution
• Connect with three 4K displays simultaneously
• Fast and convenient docking solution
• 1x Kensington Lock Slot

Please see the related tabs for the D6000S datasheet and compatible accessories.
