[properties] [/properties] [specifications]
| Technical Specifications |
WD19TB |
| Product Type |
Docking Station |
| Display Support with Dual USB-C input |
For a HBR2* PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
2 x 4K @ 30Hz
For a HBR3 PC
4 x FHD @ 60Hz
4 x QHD @ 60Hz
2 x 4K @ 60Hz |
| Max Resolution |
5120 x 2880 @ 60Hz with DP 1.2
Thunderbolt systems |
| Video interfaces |
2 x Full size DP1.4
1 x HDMI
1 x MFDP USB-C
1 x Thunderbolt 3™ USB-C |
| USB Ports |
3 x USB-A 3.1 Gen 1
2 x USB-C 3.1 Gen 2 |
| Audio Ports |
1 x Combo
1 x Speaker output |
| Networking |
Gigabit Ethernet |
| Security Slot Type (cable lock sold separately |
1 x Kensington lock slot
1 x Noble Wedge lock slot |
| LED Indicators |
Power Adapter LED
Power Button LED
RJ45 LEDs |
| Power |
Power Adapter 180 Watt AC with
up to 130 Watt power delivery
Up to 90 Watts power delivery to
non-Dell systems |
| Dimensions |
8.07in x 3.54in x 1.14in |
| Dock Weight (without power adapter) |
585g
1.29lbs |
| Operating Systems |
Microsoft Windows 10
Ubuntu 18.04
Red Hat Enterprise Linux |
| Systems Management |
Wireless vPro supported by
Notebook or Workstation |
| Docking Interface |
Thunderbolt 3™ (Type-C
Connector) |
| MAC Address |
Pass-Through MAC Address |
| Management Features |
PXE Boot
Wake-On-LAN
MAC address pass-through
Port Disablement
Wake-On-Dock button
Wake-On-Dock
Dell Command Update (DCU)
Error messages and dock event
notifications |
[/specifications] [accesories] [/accesories]

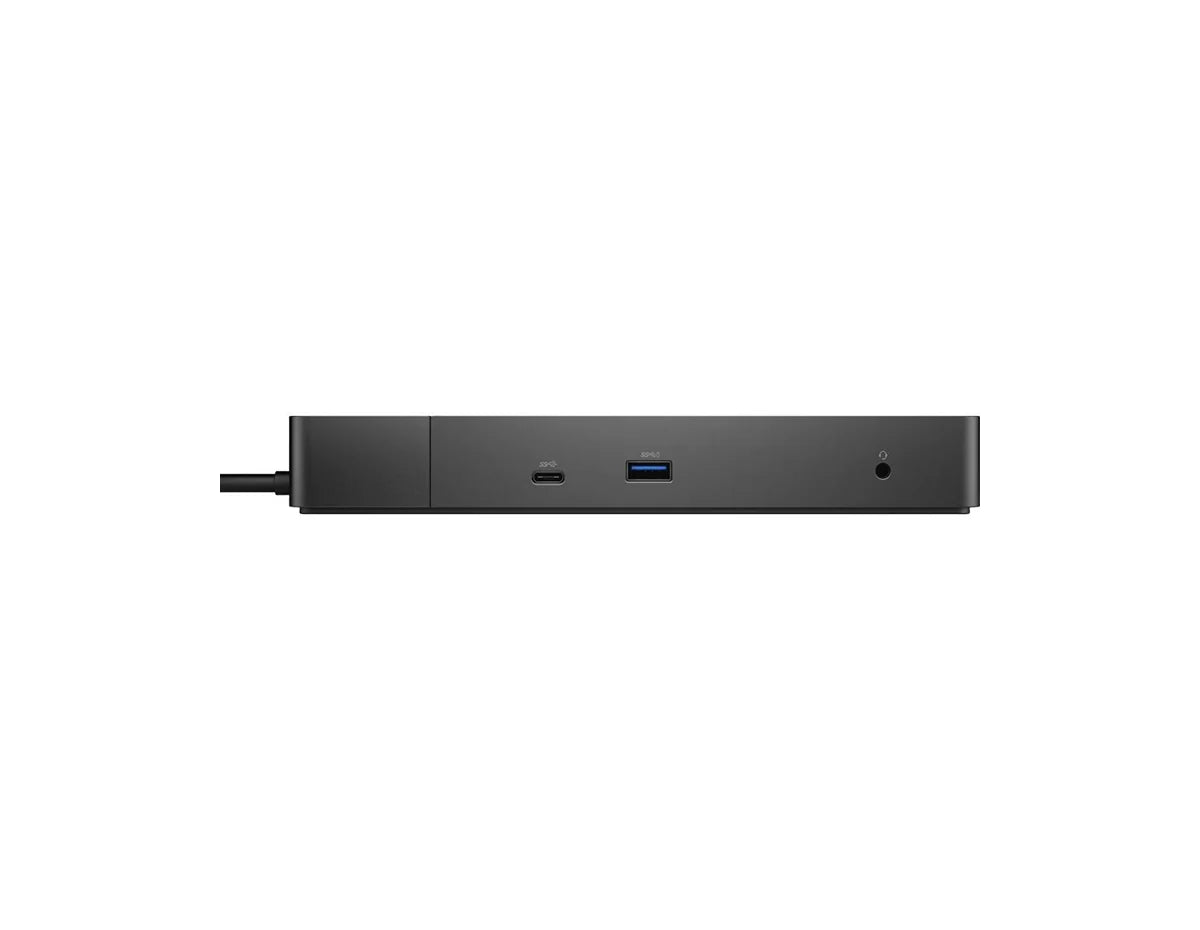

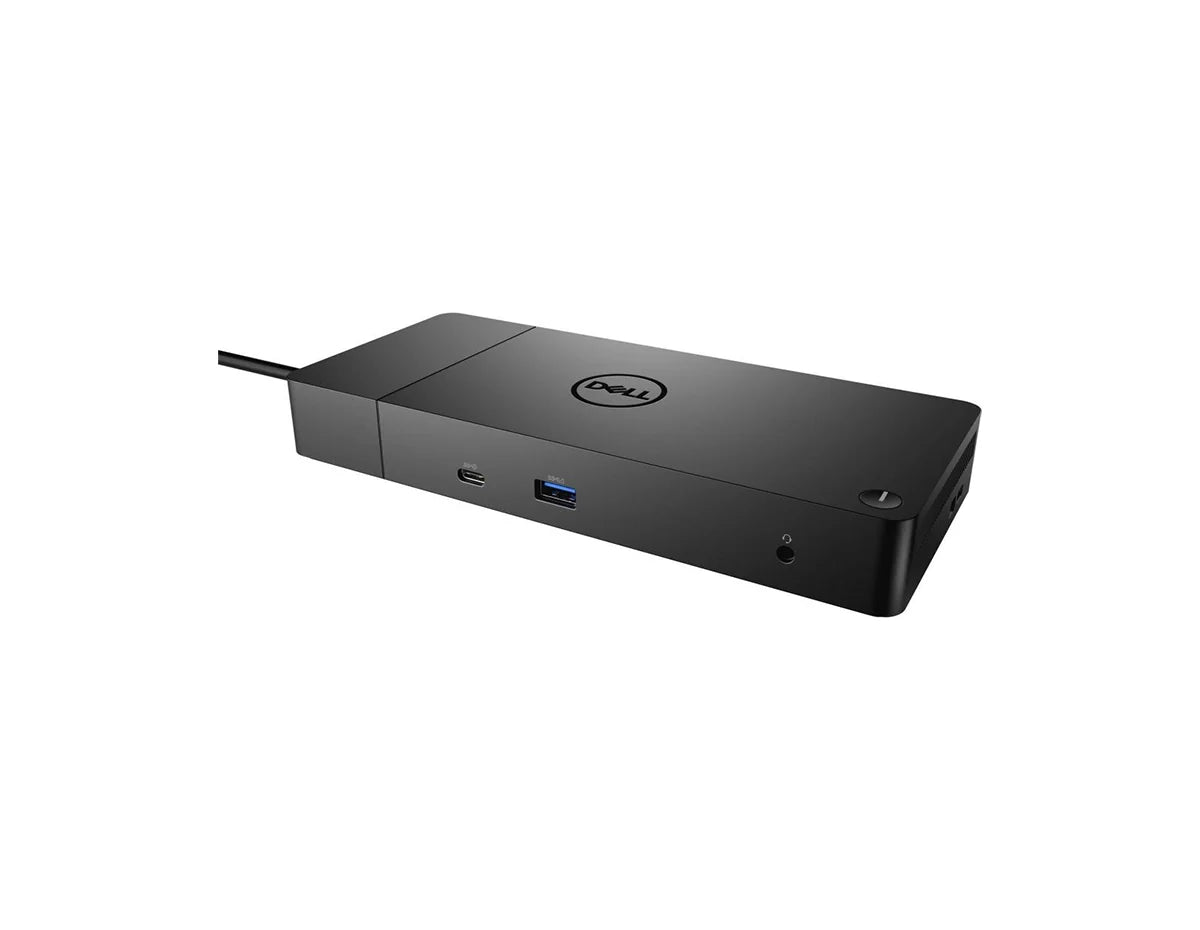

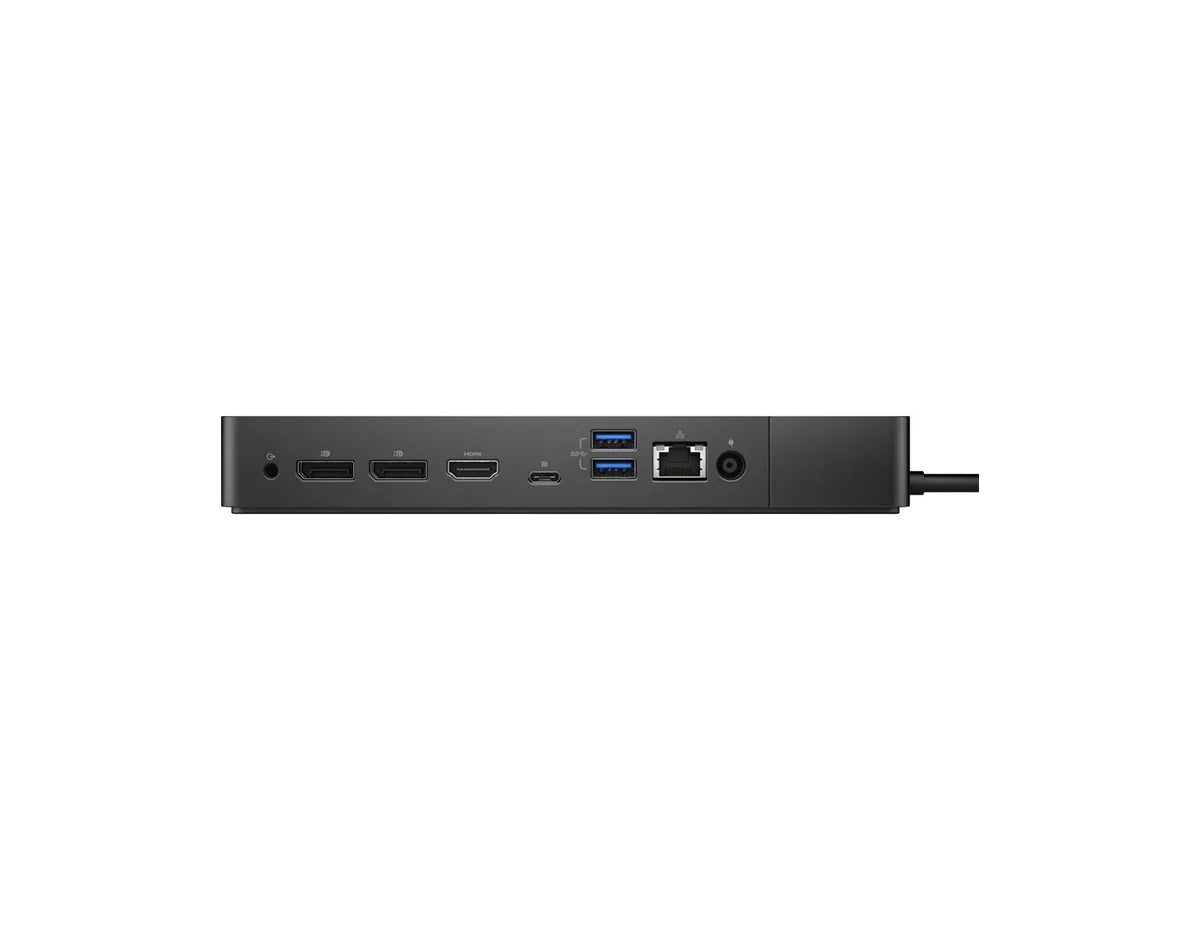

Dell WD19TB Docking Station
Broaden your ports and connectivity options by incorporating the Dell WD19TB Thunderbolt Dock. By leveraging the Thunderbolt 3 port, users can access a wide array of ports and connectors. This includes a USB 3.2 Gen 2 Type-C port and a USB Type-C port designed for DisplayPort functionality. Additionally, the dock offers two full-size DisplayPort 1.4 outputs and a single HDMI output for video connectivity. Audio capabilities are facilitated through the 3.5mm headphone/mic combo jack or the 3.5mm Line-out jack.
Quick Specs:
-
1x Thunderbolt 3 Port
-
2x DisplayPort 1.4 Output
-
1x Gigabit Ethernet RJ45 LAN Jack
-
Windows & Linux compatible
Please see the related tabs for the WD19TB datasheet and compatible accessories.
