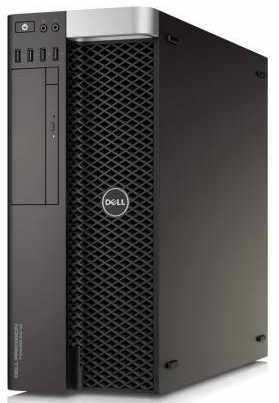

The Dell Precision T7810 is a compact, yet powerful machine workstation that is perfect for handling resource exhausting and graphic intentensive workloads. The T7810 sleek chassis has room for up to three 3.5" SATA or four 2.5" SATA/SAS drives or 4 M.2 PCIe solid-state drives. There is support for up to two processors and eight DIMMs (4 DIMMs per CPU). There is a total of six PCIe slots. The front of the T7810's chassis contains one USB 3.0 port, three USB 2.0 ports, two optional optical drives,and microphone and headphone connectors. The rear of the chassis includes a serial connector, three USB 2.0 ports, three USB 3.0 ports, line-in and line-out connectors, PS/2 keyboard and mouse connectors, an RJ45 Ethernet port, and a power connector.

The Dell Precision T7810 Workstation can accept up to 2 E5-2600 v4 processor, with up to 22 Cores per processor, allowing for a max of 44 cores.

DIMM Slots & Channels

The Dell Precision T7810 Workstation has a total of 8 DIMM slots. There are 4 total memory channels. Each memory channel consists of 2 DIMM slots.

Memory Types & Module Capacities

This system accepts DDR4 memory. Only ECC Registered memory (RDIMMs) are supported by the T7810 Workstation. Module capacities of 4GB, 8GB, 16GB, and 32GB can be installed into the T7810.

Max Configurations

The maxium memory capacity that be can achieved is 256GB with a configuration of 8x32GB 2400MT/s memory modules

The Dell Precision T7810 has support for up to three 3.5" or four 2.5" SATA/SAS hard drives or solid state drives or up to 4x 1TB NVMe drives. If you want to use SAS drives, you will need to install an additional add-in SAS controller card.

The type of drive you want to install will depend on the capacity that you can install. For 5.4K SATA hard drives, you will be able to install drives with capacities up to 4TB. For 10K SAS drives, you can install capacities up to 1.8TB. For 15K SAS drives, drives with up to 600GB can be installed. For SATA SSDs, capacities up to 1TB can be used. For SAS SSDs, drives with capacities up to 400GB can be installed. Lastly, for PCIe SSDs, capacities up to 1.4TB can be used.

There are three power supply wattage options for the Dell Precision T7810 workstation: 685W, and 825W. All two options are great options, but the one that is best for you depends on your application. For lower end applications, you can use the 685W option. For higher end applications, we heavily recommend using either the 825W options. All two power supplies are 80 PLUS Gold rated.

RAID Options	RAID Levels	Cache	Drive Speeds	PCIe Generation	RAID Hardware
Intel AHCI 6Gb/s SATA Controller	0, 1, 5, 10	None	6Gb/s SATA	N/A	Software
MegaRAID SAS 9341-8i	0, 1, 5, 10	None	3Gb/s SAS/SATA 6Gb/s SAS/SATA 12Gb/s SAS	PCIe 3.0	Hardware
MegaRAID SAS 9361-8i	0, 1, 5, 6, 10	1GB	3Gb/s SAS/SATA 6Gb/s SAS/SATA 12Gb/s SAS	PCIe 3.0	Hardware

The Dell Precision T7810 workstation has one RJ45 1GbE Ethernet port embedded into the motherboard. If you want to expand the T7810's networking capabitilies, then you can purchase an optional PCIe network card. There are options for RJ45 and SFP as well as 1GbE and 10GbE.
Integrated: Intel i217 Gigabit Ethernet LAN 10/100/1000.
Optional: Intel i210 10/100/1000 single port PCIe (x1) Gigabit network card, Intel X540-T2 10GBe dual Port PCIe (x8) network card.

• High End 3D cards:
• AMD FirePro W8100
• NVDIA Quadro M6000
• NVDIA Quadro K6000
• NVDIA Quadro M5000

• Mid-Range 3D Cards:
• AMD FirePro W7100
• AMD FirePro W5100
• NVDIA Quadro M4000
• NVDIA Quadro M2000
• NVDIA Quadro K2200

• Entry 3D Cards:
• AMD FirePro W4100
• AMD FirePro W2100
• NVDIA Quadro K620
• NVDIA Quadro K420

• Professional 2D Cards:
• NVDIA NVS 510
• NVDIA NVS 315
• NVDIA NVS 310
