[shortdesc]1U half-width compute sled for Dell PowerEdge XR8000 chassis, featuring Intel Xeon Scalable processing, DDR5 memory capacity, NVMe storage options, and advanced PCIe Gen5 deployment flexibility.[/shortdesc]
[properties]
| Brand |
Dell Technologies |
| Model |
PowerEdge XR8610t |
| SKU |
XR8610t |
| Product Type |
Compute sled |
| Series |
PowerEdge XR8000 |
| Form Factor |
1U half-width sled |
| Dimensions |
41.25 mm x 184.8 mm x 433.5 mm |
| Weight |
5.36 kg (11.83 lbs) |
[/properties]
[specifications]
| Processor |
1 x 4th Generation Intel® Xeon® Scalable processor with optional vRAN boost up to 32 cores, or 1 x 5th Generation Intel® Xeon® Scalable processor up to 16 cores |
| Memory |
8 x DDR5 DIMM slots, supports RDIMM total 512 GB with max speeds up to 5600 MT/s |
| Memory Type |
Registered ECC DDR5 DIMMs only |
| Storage |
BOSS N1 with 2 x 2280 NVMe SSDs; single M.2 riser with 1 x 2280 M.2 SSD; or dual M.2 riser (non-RAID) with 2 x M.2 2280 or 22110 M.2 SSDs |
| Chassis Power Compatibility |
Supported via XR8000r dual PSU infrastructure options: 1800W Titanium (200-240 VAC / 240 HVDC), 1400W Platinum (100-240 VAC / 240 HVDC), or DC Options (1400W / 1100W / 800W at -48 to -60 V) |
| Heating and Cooling |
Air cooling; optional Heater Manager |
| Fans |
Up to 4 standard cabled cooling fans with reverse air-flow |
| Embedded Management |
iDRAC9; iDRAC Direct; iDRAC RESTful API with Redfish; iDRAC Service Module |
| OpenManage Software |
CloudIQ for PowerEdge plug-in; OpenManage Enterprise; OpenManage Enterprise Integration for VMware vCenter; OpenManage Integration for Microsoft System Center; OpenManage Integration with Windows Admin Center; OpenManage Power Manager plugin; OpenManage Service plugin; OpenManage Update Manager plugin |
| Mobility |
OpenManage Mobile |
| OpenManage Integrations |
BMC Truesight; Microsoft System Center; OpenManage Integration with ServiceNow; Red Hat Ansible Modules; Terraform Providers; VMware vCenter and vRealize Operations Manager |
| Security |
Cryptographically signed firmware; Secure Boot; Secure Erase; Secured Component Verification (Hardware integrity check); Silicon Root of Trust; System Lockdown; TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC |
2 x 25 GbE SFP 28 LOM connectors (optional) |
| Front Ports |

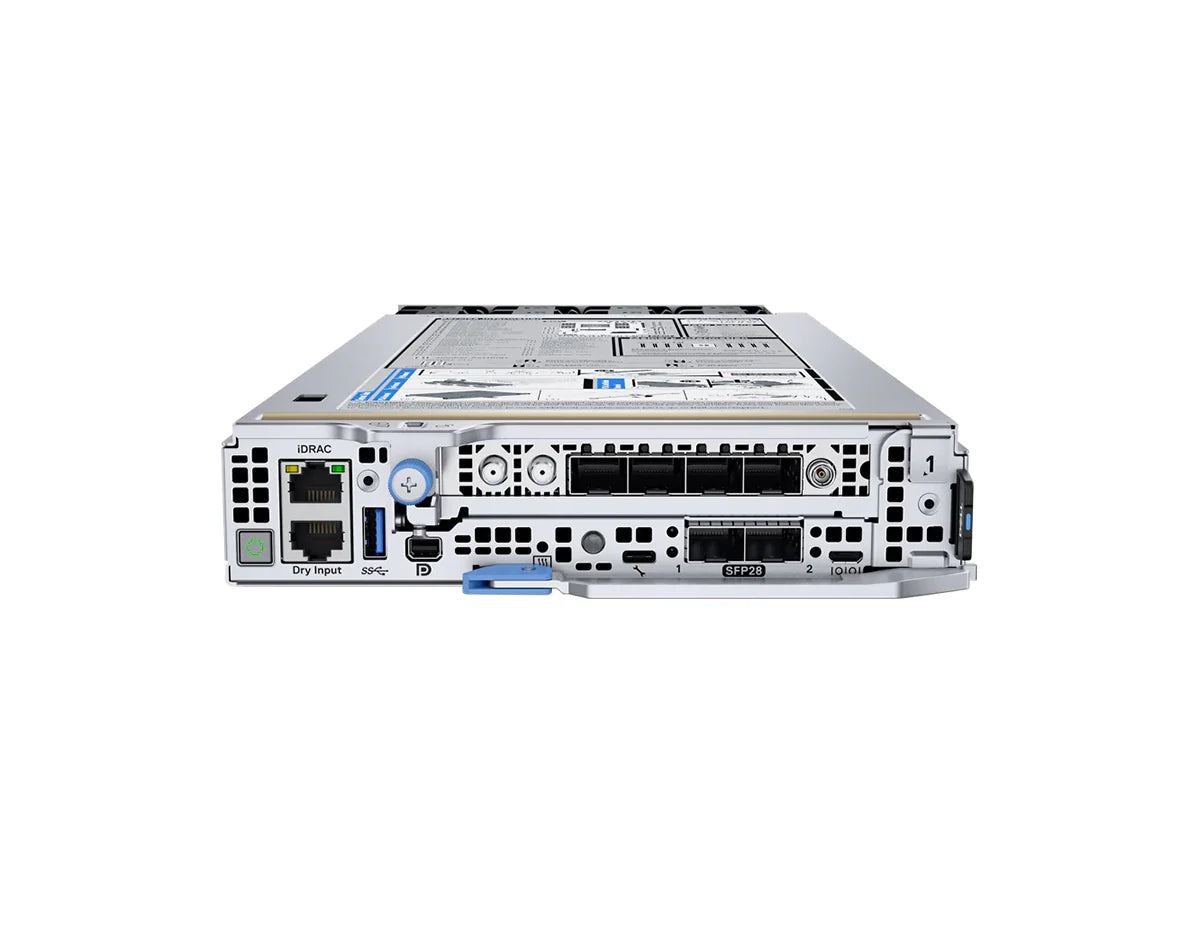

1 x iDRAC Direct (Micro-AB USB) port; 1 x USB 3.0; 1 x Micro USB serial port; 1 x Mini-DisplayPort; 1 x RJ45 iDRAC9 ethernet port; 1 x RJ45 Alert Dry contact input connector |
| PCIe Slots |
1 CPU configuration: 1 PCIe slot (1 x16 Gen5) |
| Operating System and Hypervisors |
Red Hat Enterprise Linux; SUSE Linux Enterprise Server; VMware ESXi; Wind River |
[/specifications]
Compact Edge Compute for PowerEdge XR8000

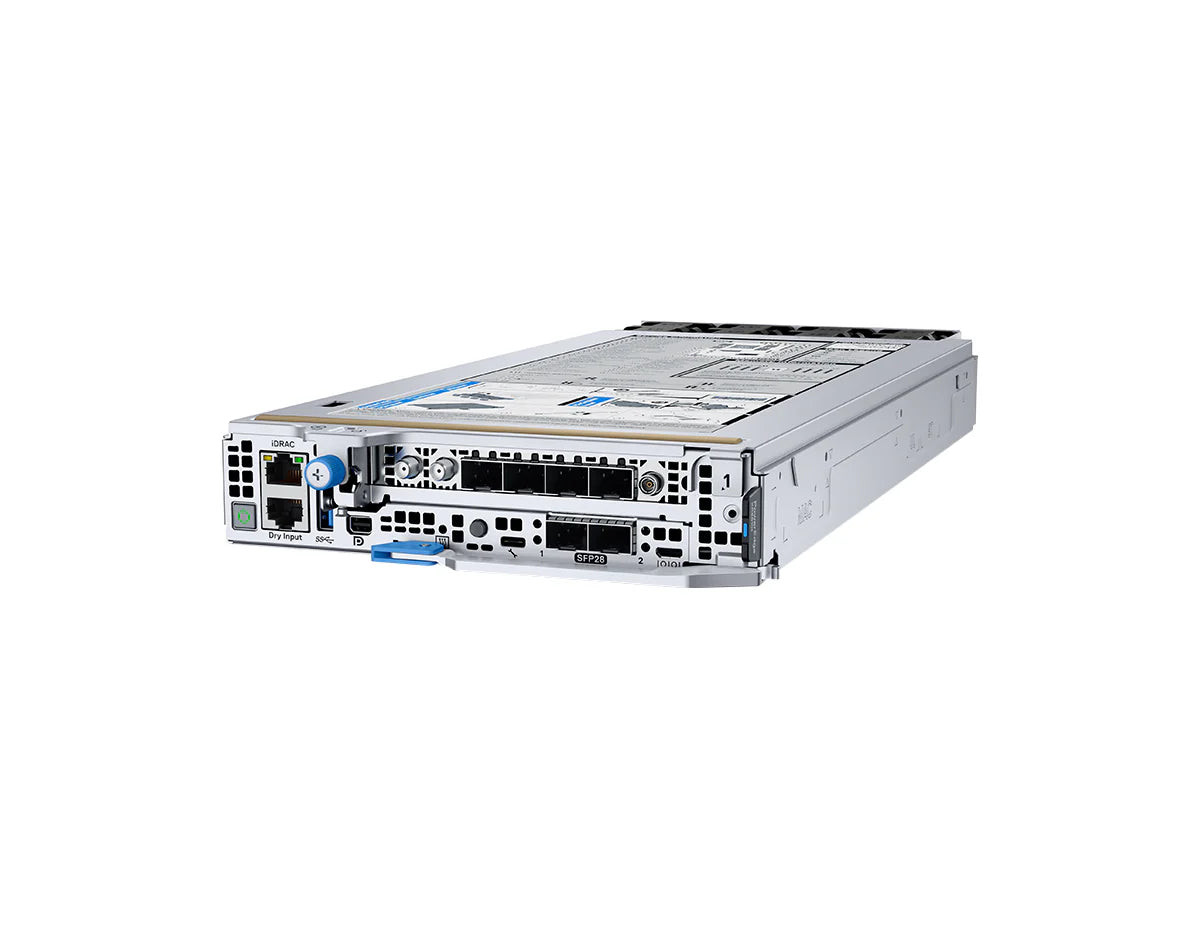

The Dell PowerEdge XR8610t is a high-performance, short-depth compute sled explicitly optimized for dense edge deployments. Purpose-built for space-constrained telecom, manufacturing, retail, and defense frameworks, this 1U half-width node offers exceptional configuration flexibility inside the rugged XR8000 multi-node ecosystem.
Key Benefits and Features
-
Next-Gen Processing: Accommodates 4th or 5th Gen Intel Xeon Scalable processors, featuring optional vRAN boost configurations up to 32 cores to handle complex telecommunication workloads.
-
High-Speed Memory: Equipped with 8 DDR5 RDIMM slots supporting up to 512 GB capacity and memory operational speeds up to 5600 MT/s.
-
Flexible M.2 Storage architectures: Supports modular boot options, including a dedicated BOSS N1 assembly with dual NVMe protection or high-density direct NVMe risers.
-
Robust Operations: Front-accessible I/O and streamlined power design allow rapid system provisioning and easy servicing inside complex field environments.
-
Enterprise Automation: Fully integrated with iDRAC9 tools and OpenManage administration modules to orchestrate centralized or autonomous management routines securely.
Ideal Use Cases
- Centralized RAN (C-RAN) and Distributed RAN (D-RAN) applications
- Network edge architectures and telecom space-constrained installations
- Industrial automation systems and factory floor compute hubs
- High-density retail back-office optimization
- Tactical military and defense operations requiring ruggedized form factors
Technical Specifications Summary
-
Product Type: PowerEdge XR8000 Sled
-
Model Variant: XR8610t (1U Half-Width Sled)
-
Processor Capacity: 1 x Intel Xeon Scalable Processor (4th Gen up to 32 cores with vRAN boost / 5th Gen up to 16 cores)
-
Memory Interface: 8 x Registered ECC DDR5 DIMM slots (Up to 512 GB)
-
Storage Architecture: BOSS N1 configuration or standalone M.2 direct-connect risers (supports 2280 and 22110 form factors)
-
Physical Footprint: 41.25 mm Height x 184.8 mm Width x 433.5 mm Depth
-
Weight: 5.36 kg (11.83 lbs)
-
PCIe Expansion: 1 x PCIe Gen5 x16 slot
Deploy Dell XR8610t Edge Compute with Confidence
Incorporate the Dell PowerEdge XR8610t compute sled into your infrastructure to experience premium multi-node flexibility combined with structural resilience. Secure scalable, dense edge operations today.
