[shortdesc]4U rack server, dual AMD EPYC 9005 CPUs, 8 NVIDIA HGX B200 GPUs, 3TB DDR5 ECC, NVMe storage, liquid cooling[/shortdesc]
[properties]
| Brand |
Dell |
| Model |
PowerEdge XE9685L |
| SKU |
XE9685L |
| Product Type |
Server |
| Series |
PowerEdge |
| Form Factor |
4U rack server |
| Processor |
Two 5th Generation AMD EPYC™ 9005 Series processors with up to 192 cores per processor |
| Memory |
24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s |
| Storage |
Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB |
| GPU |
8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs |
| Power |
3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant |
| Dimensions |
174.3 mm x 447 mm upper 2U / 434 mm lower 2U x 1037.57 mm with bezel |
| Weight |
91.63 kg |
[/properties]
[specifications]
| Memory Type |
Registered ECC DDR5 DIMMs only |
| Storage Controller |
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs |
| GPU Interconnect |
NVIDIA NVLink technology |
| Cooling Options |
Liquid cooled CPUs, GPUs, and NVLink Switches |
| PCIe |
Up to 12 x16 Gen5 full-height, half-length slots |
| Embedded NIC |
2 x 1 GbE |
| Network Options |
1 x OCP 3.0 (x8 PCIe lanes) |
| Fans |
Up to six high performance gold grade fans installed on the top layer and up to six on the bottom layer |
| Embedded Management |
iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish |
| Security Features |
Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified |
| Front Ports |
1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA |
| Rear Ports |
1 x USB 2.0, 1 x USB 3.0, 1 x iDRAC Direct ethernet port |
| Operating System |
Canonical Ubuntu Server LTS |
[/specifications]
[accesories]
| Compatible Accessories |
Optional LCD bezel or security bezel |
[/accesories]

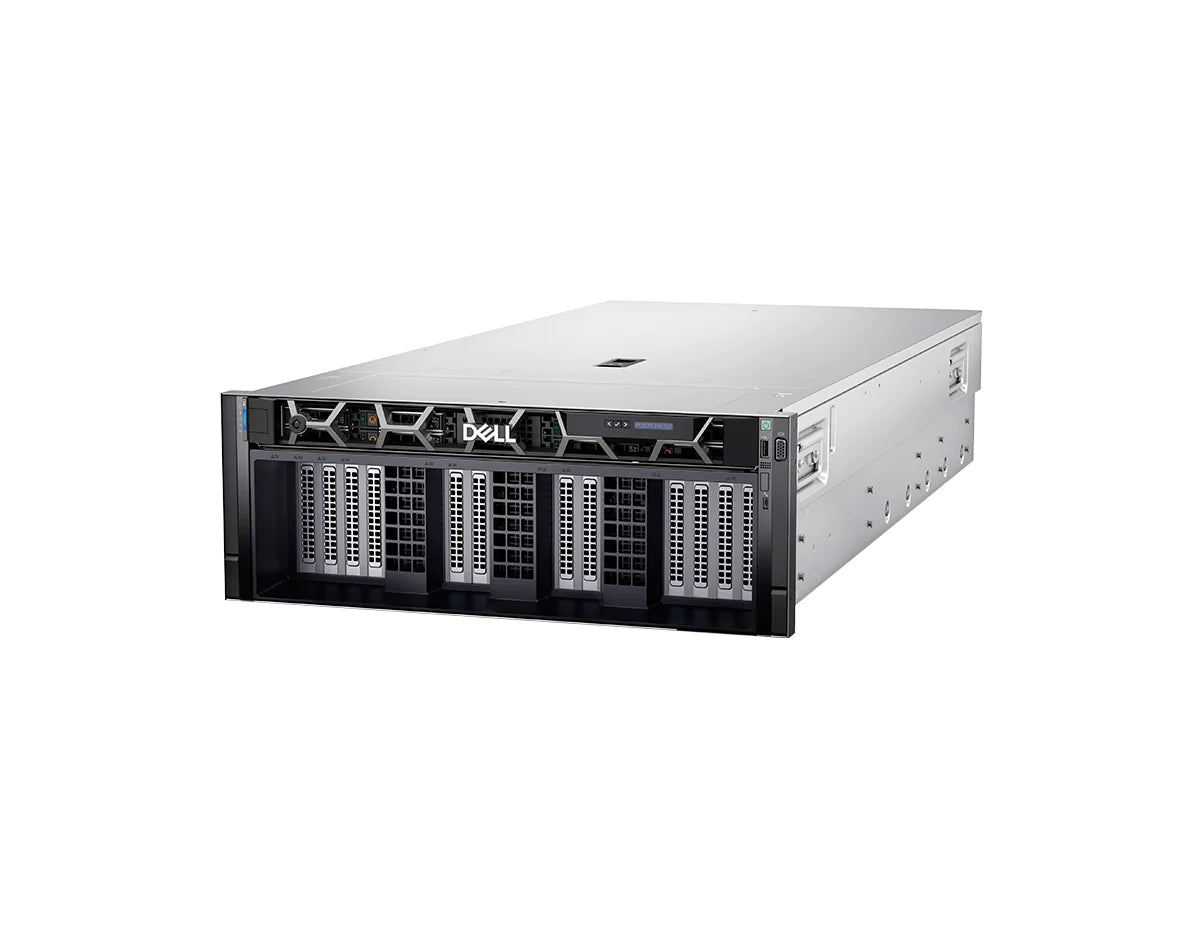

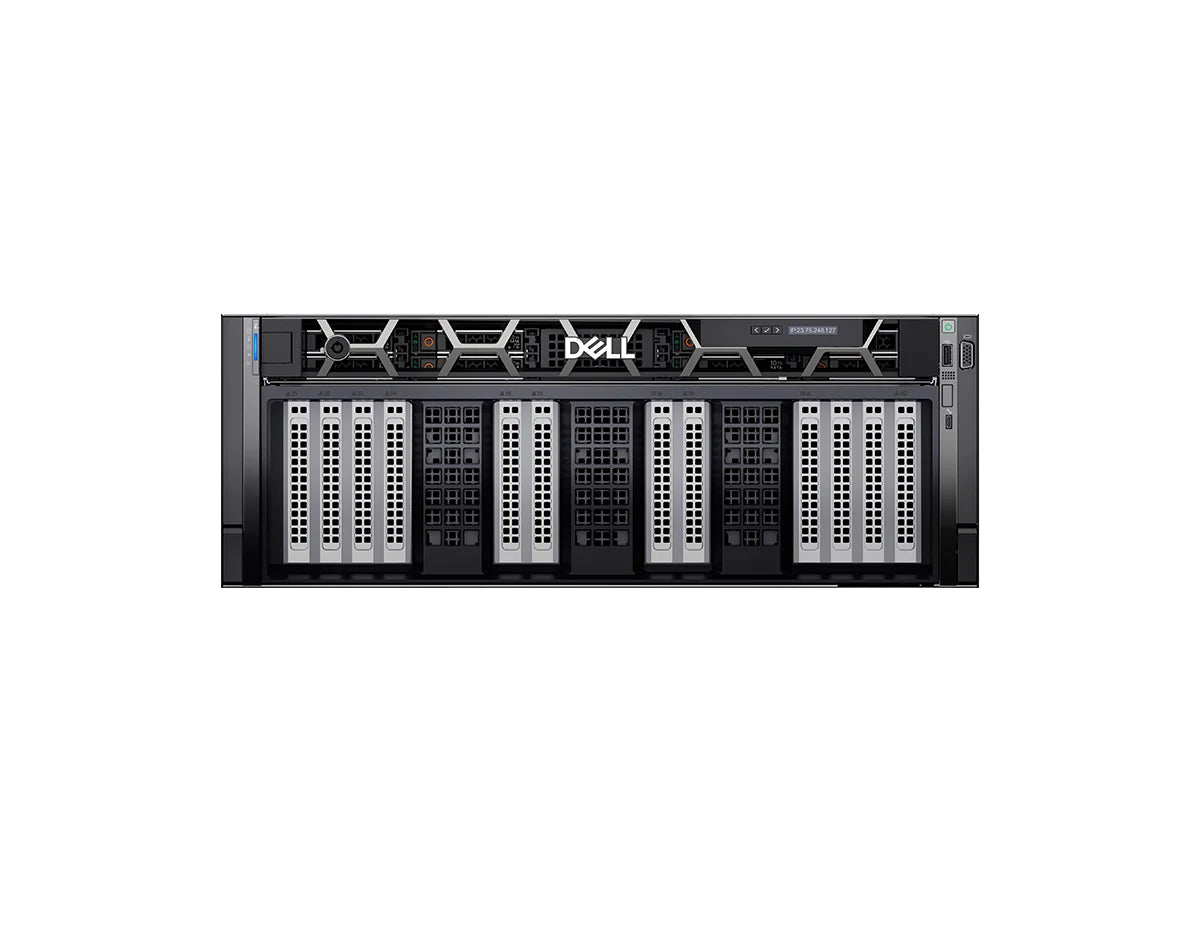

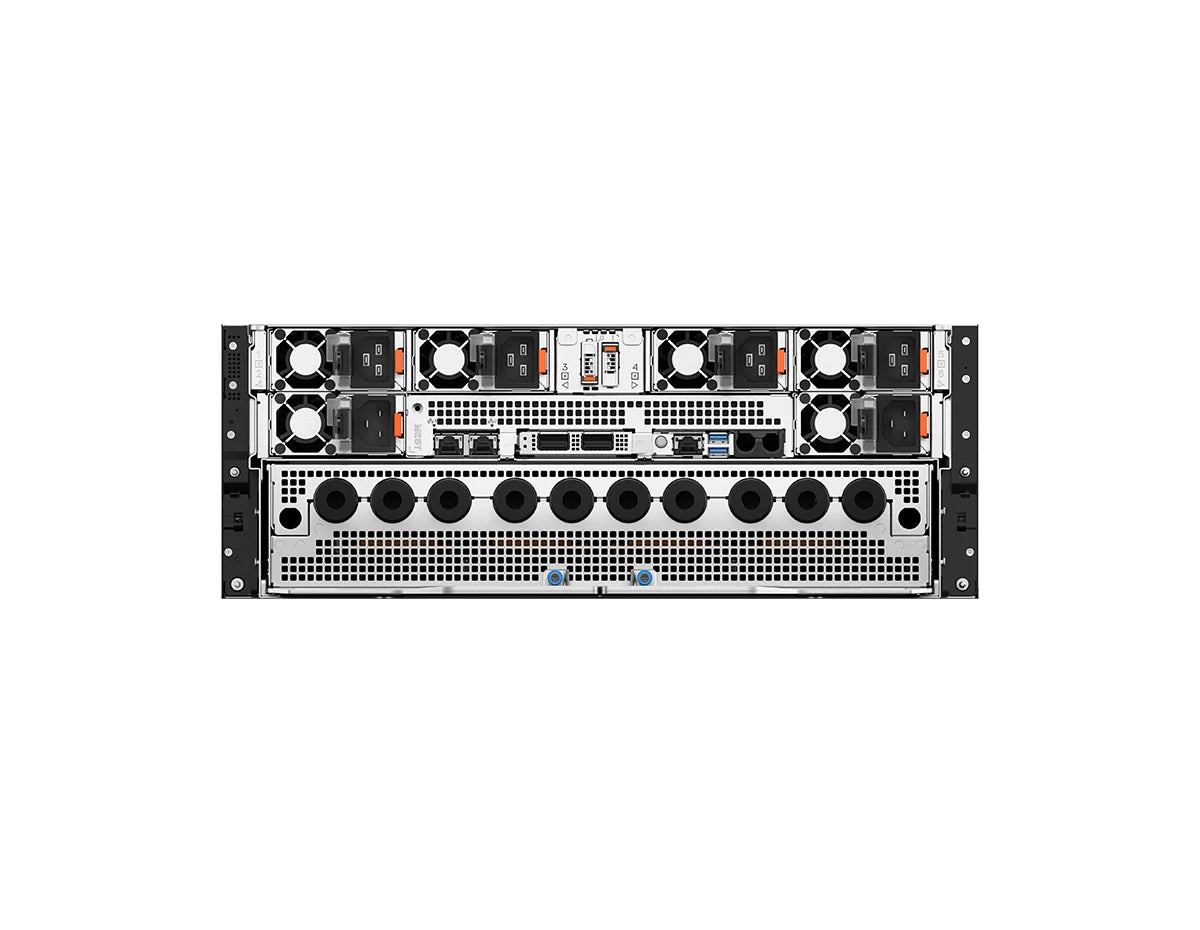

Dell PowerEdge XE9685L for AI and HPC Acceleration
The Dell PowerEdge XE9685L is a high-performance 4U liquid cooled rack server built for demanding AI, HPC, deep learning, and data-intensive enterprise workloads. With dual 5th Generation AMD EPYC 9005 processors and 8 NVIDIA HGX B200 GPUs, it provides dense compute capacity for accelerated model training, inference, and scientific computing.
Key Benefits and Features
- Supports two AMD EPYC 9005 Series processors with up to 192 cores per processor.
- Includes 8 NVIDIA HGX B200 180GB SXM6 GPUs interconnected with NVIDIA NVLink technology.
- Offers up to 3TB DDR5 ECC memory across 24 DIMM slots.
- Supports up to 8 front 2.5-inch NVMe SSD drives for high-speed storage access.
- Uses liquid cooling for CPUs, GPUs, and NVLink Switches.
Ideal Use Cases
- Large Language Model (LLM) training, fine-tuning, and inference.
- Recommendation engines.
- Molecular Dynamics and Genome Sequencing.
Technical Specifications
-
Product Type: 4U rack server
-
Processor: Two 5th Generation AMD EPYC 9005 Series processors, up to 192 cores per processor
-
Memory: 24 DDR5 DIMM slots, RDIMM support, up to 3TB, speeds up to 6400 MT/s
-
GPU: 8 NVIDIA HGX B200 180GB 1000W SXM6 GPUs
-
Storage Bays: Up to 8 x 2.5-inch NVMe SSD drives, up to 122.88TB
-
Boot Storage: NVMe BOSS-N1 with HWRAID 1 and 2 x M.2 SSDs
-
PCIe Expansion: Up to 12 x16 Gen5 full-height, half-length slots
-
Embedded NIC: 2 x 1GbE
-
Power Supplies: 3000W Titanium, 200-240 VAC or 240 VDC, hot swap redundant
-
Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish
Build Dense AI Infrastructure with Dell PowerEdge XE9685L
Choose the Dell PowerEdge XE9685L for GPU-accelerated compute, liquid cooled efficiency, and scalable enterprise AI performance. Contact us today to request pricing or configuration support.
