[shortdesc]1U rack server, dual-socket Intel Xeon 6, 32 DDR5 DIMM slots, up to 8 TB memory, Gen5 NVMe storage, iDRAC management[/shortdesc]

[properties]

Brand	Dell
Model	PowerEdge R670
SKU	R670
Product Type	Dual-socket rack server
Series	PowerEdge
Form Factor	1U rack server
Processor	Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory	32 DDR5 DIMM slots, RDIMM 8 TB max, speeds up to 6400 MT/s
Storage Bays	Up to 20 x EDSFF E3.S Gen5 NVMe
Power Supplies	Hot swap power supplies
Cooling Options	Air cooling and Direct Liquid Cooling
Dimensions	Height: 42.8 mm (1.69 inches); Width: 482 mm (18.98 inches)
Weight	20.42 kg (45.02 lb)

[/properties]

[specifications]

Processor Support	Two Intel Xeon 6 Processors (Up to 144 E-cores or 86 P-cores per processor)
Memory Type	Registered ECC DDR5 DIMMs only
Memory Capacity	RDIMM 8 TB max
Memory Speed	Up to 6400 MT/s
Internal Boot	BOSS-N1 DC-MHS (HWRAID 1, 2x M.2 NVMe SSDs), M.2 Interposer board, or USB
Internal Controllers	Front PERC H9651, H9751, H3651
Front Bays	Up to 20x EDSFF E3.S Gen5 NVMe (Max 1228.8 TB) or 8x 2.5-inch SATA/NVMe Direct/NVMe Raid (Max 491.52 TB)
2.5-inch Bay Options	Up to 10x 2.5-inch SATA (Max 38.4 TB) or 8x 2.5-inch Universal (Max 491.52 TB)
Rear Storage	Up to 2x EDSFF E3.S Gen5 NVMe (Max 122.88 TB)
Power Supply Options	Hot-plug redundant Titanium/Platinum: 800W, 1100W, 1500W, 1800W HLAC, or 1400W LVDC
Power Input	100 to 240 VAC / 240 VDC; 277 VAC / 336 VDC; -48 to -60 VDC (LVDC)
Fans	Up to 4 sets hot-swappable dual fan modules (Standard or High-Performance Silver)
Depth	815.14 mm to 829.44 mm (32.09" to 32.66") depending on bezel and I/O configuration
Embedded Management	iDRAC, iDRAC Direct, RESTful API (Redfish), RACADM CLI, NativeEdge Endpoint & Orchestrator
Security Features	Silicon Root of Trust, Secure Boot, Cryptographically signed firmware, TPM 2.0 FIPS, Chassis Intrusion
Network Options	2x OCP NIC 3.0 cards; Supports 1GbE, 10GbE, 25GbE, 100GbE, and 400GbE
OCP Slots	Up to 4x OCP 3.0 slots (Gen5 x16/x8) across front and internal risers
BOSS Slot	1x Dedicated front or rear BOSS slot
GPU Options	Up to 3x 75W Single-Width GPUs
DPU Options	NVIDIA BlueField-3 (1x400 GbE B3140H or 2x200 GbE B3220)
Front Ports	1x USB 2.0 Type-C, 1x USB 2.0 Type-A, 1x Mini-DP, 1x Serial DB9, 1x Dedicated iDRAC ethernet
Rear Ports	2x USB 3.1 Type-A, 1x VGA, 1x Dedicated iDRAC ethernet
Internal Ports	1x USB 3.1 Type-A port
PCIe	Up to 5x PCIe slots supporting Full Height, Low Profile, and OCP 3.0 configurations
Operating Systems	Ubuntu Server LTS, Microsoft Windows Server (Hyper-V), RHEL, SUSE Linux, VMware ESXi, NativeEdge OS

[/specifications]

[accesories]

Compatible Accessories

Optional security bezel

[/accesories]

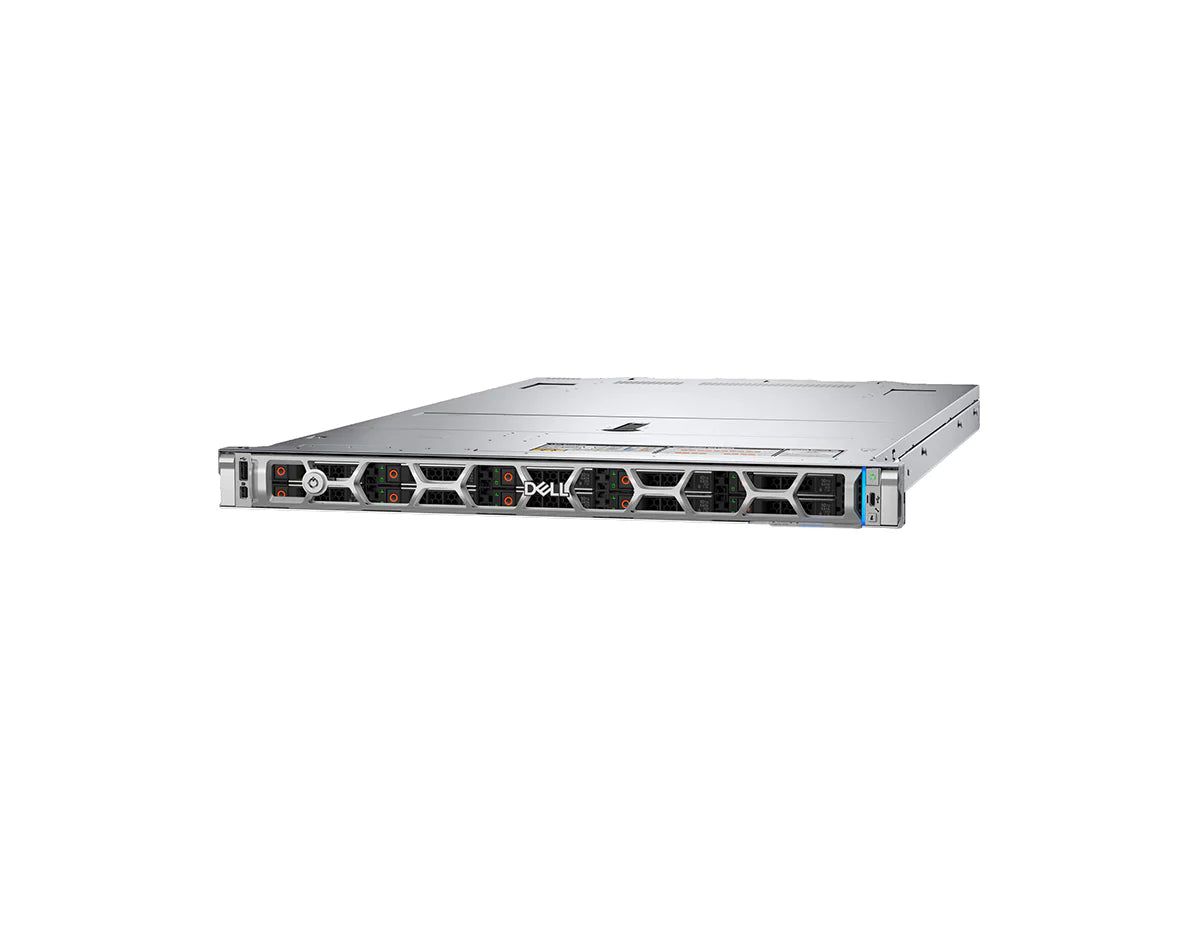

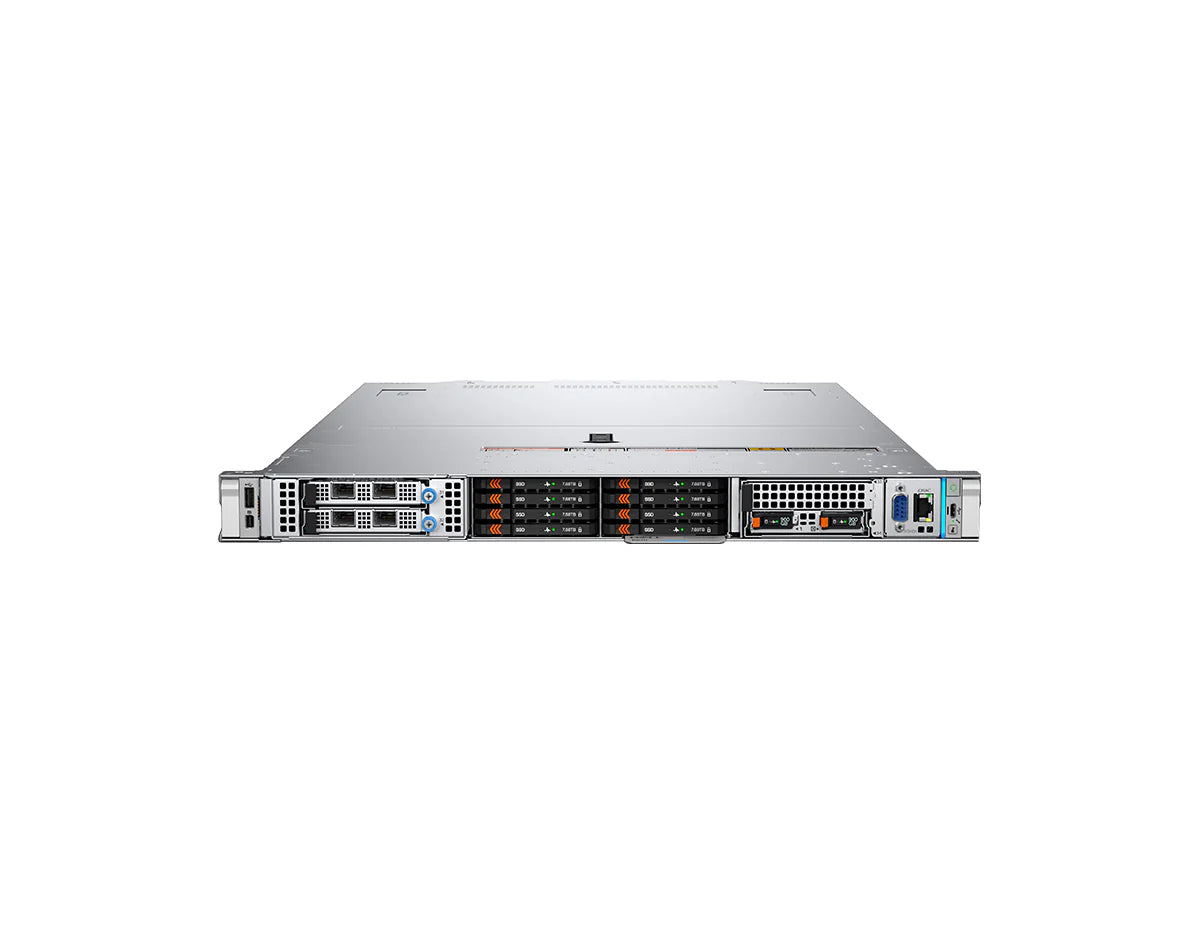

Dell PowerEdge R670 for Dense Enterprise Compute

The Dell PowerEdge R670 is a 1U dual-socket rack server designed for balanced performance, optimized power efficiency, and scalable data center deployment. Built for enterprise and high-density infrastructures, it supports Intel Xeon 6 processors, DDR5 memory, NVMe storage configurations, advanced cooling options, and Dell OpenManage systems management.

Key Benefits and Features

• Supports two Intel Xeon 6 processors with up to 144 E-cores or 86 P-cores per processor.
• Offers 32 DDR5 DIMM slots with registered ECC DDR5 memory support and speeds up to 6400 MT/s.
• Provides multiple EDSFF E3.S and 2.5 inch storage configurations for NVMe and SATA deployments.
• Includes embedded management options such as iDRAC, iDRAC Direct, Redfish API, RACADM CLI, and iDRAC Service Module.
• Supports air cooling and Direct Liquid Cooling for compatible rack environments.

Ideal Use Cases

• Virtualization workloads in enterprise data centers.
• Cloud-native applications requiring dense compute resources.
• All-flash software-defined storage deployments.
• Hyperscale workloads and scale-out database environments.
• High-density infrastructures using rear I/O or front I/O configurations.

Technical Specifications

• Brand: Dell
• Model: PowerEdge R670
• SKU: R670
• Form Factor: 1U rack server
• Processor Support: Two Intel Xeon 6 processors
• Memory Slots: 32 DDR5 DIMM slots
• Maximum Memory: Up to 8 TB RDIMM
• Memory Type: Registered ECC DDR5 DIMMs only
• Storage Controller Options: BOSS-N1 DC-MHS, M.2 Interposer board, Front PERC H9651, H9751, and H3651
• Security Features: Secure Boot, Silicon Root of Trust, Secure Erase, System Lockdown, TPM 2.0 FIPS, and Chassis Intrusion Detection

Deploy Dell PowerEdge R670 in Your Data Center

Choose the Dell PowerEdge R670 when your infrastructure needs dense 1U compute, DDR5 memory capacity, NVMe storage flexibility, and integrated Dell management tools for enterprise-scale server operations.
