Cloud Ninjas' Dell PowerEdge R240 Specifications

Chassis

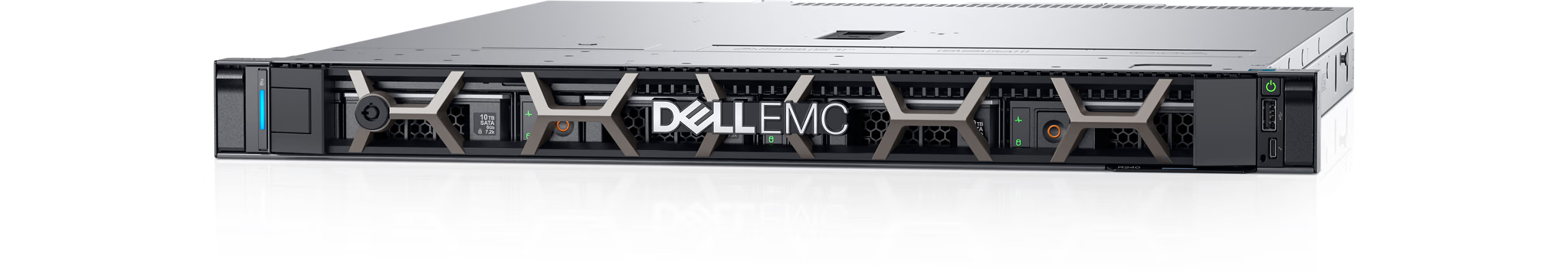

The Dell PowerEdge R240 server is a budget-friendly server that can handle demanding workloads. The R240 is designed for small businesses and service providers. The PowerEdge R240 comes in two possible chassis options: 2 Bay LFF cabled and 4 Bay LFF Hot swap.

2 Bay LFF Cabled

The 2 Bay LFF Cabled chassis for the PowerEdge R240 supports up to two 3.5" SAS/SATA drives. 2.5" HDDs and SSDs can be installed via a 2.5" to 3.5" drive converter. This chassis does not support hot swap drives which means that drives cannot be added or removed while the server is powered on. The rear of the chassis includes one low-profile PCIe slot, one full-height PCIe slot, a serial port, VGA port, an iDRAC dedicated LAN port, two 1GbE RJ45 Ethernet ports, two type A USB 3.0 ports, CMA port, a system ID button, and one cabled power supply.

4 Bay LFF Hot swap

The 4 Bay LFF Hot-swap chassis for the R240 server is the exact same as the 4 Bay LFF cabled chassis, except that it accepts hot-swap drives. Hot swap means that you can add or remove drives while the server is powered on. Just like the 4 Bay LFF cabled, the rear of this chassis includes one low-profile PCIe slot, one full-height PCIe slot, a serial port, VGA port, an iDRAC dedicated LAN port, two 1GbE RJ45 Ethernet ports, two type A USB 3.0 ports, CMA port, a system ID button, and one cabled power supply.

Processing Power

The Dell PowerEdge R240 server has a single CPU socket that accepts Intel Xeon E-2100, Intel Xeon E-2200, Intel Pentium, Intel Core i3, or Intel Celeron processors. A maximum of 8 CPU cores are supported.

Supported Intel Xeon E-2100 Processors

CPU	Step Code	Cores	Frequency	Cache
E-2104G	SR3WV	4	3.2 GHz	8 MB
E-2124	SR3WQ	4	3.3 GHz	8 MB
E-2124G	SR3WL	4	3.4 GHz	8 MB
E-2126G		6	3.3 GHz	12 MB
E-2134	SR3WP	4	3.5 GHz	8 MB
E-2136	SR3WW	6	3.3 GHz	12 MB
E-2144G	SR3WM	4	3.6 GHz	8 MB
E-2146G	SR3WT	6	3.5 GHz	12 MB
E-2174G	SR3WN	4	3.8 GHz	8 MB
E-2176G	SR3WS	6	3.7 GHz	12 MB
E-2186G	SR3WR	6	3.8 GHz	12 MB

Supported Intel Xeon E-2200 Processors

CPU	Step Code	Cores	Frequency	Cache
E-2224	SRFAV	4	3.4 GHz	8 MB
E-2224G	SRFAW	4	3.5 GHz	8 MB
E-2226G	SRF7F	6	3.4 GHz	12 MB
E-2234	SRFAX	4	3.6 GHz	8 MB
E-2236	SRF7G	6	3.4 GHz	12 MB
E-2244G	SRFAY	4	3.8 GHz	8 MB
E-2246G	SRF7N	6	3.6 GHz	12 MB
E-2274G	SRFDE	4	4.0 GHz	8 MB
E-2276G	SRF7M	6	3.8 GHz	12 MB
E-2278G	SRFB2	8	3.4 GHz	16 MB
E-2286G	SRF7C	6	4.0 GHz	12 MB
E-2288G	SRFB3	8	3.7 GHz	16 MB

Supported Intel Core i3 Processors

CPU	Step Code	Cores	Frequency	Cache
i3-8100		4	3.6 GHz	6 MB
i3-9100		4	3.60 GHz	6 MB

Supported Intel Celeron/Pentium Processors

CPU	Cores	Frequency	Cache
Celeron G4900	2	3.10 GHz	2 MB
Celeron G4930	2	3.20 GHz	2 MB
Pentium G5420	2	3.80 GHz	4 MB
Pentium G5500	2	3.80 GHz	4 MB

Memory

The Dell PowerEdge R240 Server has a total of 4 DIMM slots. There is a total of two memory channels, each consisting of two DIMM slots. This system accepts DDR4 memory. ECC Unbuffered (ECC UDIMM) memory is the only type of memory that can be used with the R240. Capacities of 4GB, 8GB, and 16GB can be used with the PowerEdge R240. The R240 server allows for a maximum memory configuration of 64GB with 4x16GB ECC UDIMMs. The Dell R240 supports memory speeds of 2133MT/s, 2400MT/s, 2666MT/s. The processor you have installed will determine the max memory speed that you can use with your system. For example, if your processor supports a max memory speed off 2400MT/s and you install a 2666MT/s module, the module will clock down to 2400MT/s. 2666MT/s is the fastest possible speed for this system.

Storage

Supported Drives (2.5")

Type	Speeds	Max Capacity (Per Drive)
SAS	7.2K, 10K, 15K	2.4TB
SATA	7.2K	2TB
SSD	6Gb/s, 12Gb/s	7.68TB

Supported Drives (3.5”)

Type	Speeds	Max Capacity (Per Drive)
SAS	7.2K	18TB
SATA	7.2K	16TB
SSD	6Gb/s, 12Gb/s	7.68TB

Power Supplies

How Many Power Supplies does the R240 Support?

The Dell PowerEdge R240 server supports up to one cabled power supply. This system does not support hot-swap power supplies meaning that power supply units cannot be removed while the system is powered on.

Power Supply Options

There are two power supply options for the PowerEdge R240: Bronze 250W and Platinum 450W. For higher-end applications, it is best to go with the 450W option. For lower-end applications, the 250W option is fine.

RAID Options

RAID Options	RAID Levels	Cache	Drive Speeds	PCIe Generation	RAID Hardware
S140 onboard software	0,1,5,10	None	6 Gb/s SATA/NVMe	N/A	Software
HBA330	Passthrough	None	6 Gb/s SAS/SATA 12 Gb/s SAS	PCIe 3.0	Hardware
12Gbps SAS Ext. HBA	Passthrough	None	12 Gb/s SAS	PCIe 3.0	Hardware
H330	0, 1, 5, 10, 50	None	6 Gb/s SATA 12 Gb/s SAS	PCIe 3.0	Hardware
H730P	0, 1, 5, 6, 10, 50, 60	2 GB NV	6 Gb/s SATA 12 Gb/s SAS	PCIe 3.0	Hardware

Network Interface Card Options

Daughter Cards

Broadcom 5720/57412 Quad Port 2x1GbE RJ45 + 2x10GbE SFP+

Broadcom 5720 Quad Port 4x1GbE RJ45

Broadcom 57414 Dual Port 2x10/25GbE SFP28

Intel i350/X550 Quad Port 2x1GbE RJ45 + 2x10GbE RJ45

Intel X550 Quad Port 4x10GbE RJ45

Intel X710 Quad Port 4x10GbE SFP+

Mellanox ConnectX-4 Lx Dual Port 10/25GbE SFP28 V2

Mellanox ConnectX-4 Lx Dual Port 10/25GbE SFP28

PCIe Cards

Broadcom 5719 Quad Port 4x1GbE RJ45

Broadcom 5720 Dual Port 2x1GbE RJ45

Broadcom 57412 Dual Port 2x10GbE SFP+

Broadcom 57414 Dual Port 2x10/25GbE SFP28

Broadcom 57416 Dual Port 2x10GbE RJ45

Broadcom 57508 Dual Port 2x100GbE QSFP

Intel X550 Dual Port 2x10GbE RJ45

Intel X710-T2L Dual Port 2x10GbE RJ45

Intel X710-T4L Quad Port 4x10GbE RJ45

Intel E810-XXV Dual Port 2x10/25GbE SFP28

Mellanox ConnectX-4 LX Dual Port 2x10/25GbE SFP28 V2

Mellanox ConnectX-4 LX Dual Port 2x10/25GbE SFP28

Mellanox ConnectX-5 Dual Port 2x10/25GbE SFP28 V2

Emulex LPE 35002 Dual Port 2x32Gb FC HBA

Emulex LPE 35000 Single Port 1x32Gb FC HBA

Emulex LPe31002 Dual Port 2x16Gb FC HBA V2

Emulex LPe31000 Single Port 1x16Gb FC HBA V2

QLogic 2690 Single Port 1x16Gb FC HBA V2

QLogic 2772 Dual Port 2x32Gb FC HBA V2

-->

Systems Management Solutions

The Dell PowerEdge R240 Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup, and searching the IP in a web browser.

Supported Operating Systems:

The PowerEdge R240 supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. These operating systems are:

⦿ Citrix XenServer 7.1
⦿ Red Hat® Enterprise Linux 7
⦿ Red Hat® Enterprise Linux 8
⦿ Red Hat® Enterprise Linux 9
⦿ SUSE Linux ES 15
⦿ Ubuntu Server 18.04 LTS
⦿ Ubuntu Server 20.04 LTS
⦿ VMware ESXi 6.5
⦿ VMware ESXi 6.7
⦿ VMware ESXi 7.0
⦿ VMware ESXi 8.0
⦿ Window Server 2012 R2
⦿ Window Server 2016
⦿ Window Server 2019
