| Technical Specifications |
WD19DCS |
| Product Type |
Docking Station |
| Display Support with Dual USB-C input |
For a HBR2* PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
1 x 4K @ 60Hz
For a HBR3 PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
2 x 4K @ 60Hz
1 x 8K @ 30 Hz |
| Max Resolution |
5120 x 2880 @ 60Hz |
| Video interfaces |
2 x Full size DP1.4
1 x HDMI
1 x MFDP USB-C |
| USB Ports |
3 x USB-A 3.1 Gen 1
2 x USB-C 3.1 Gen 2 |
| Networking |
Gigabit Ethernet |
| Security Slot Type (cable lock sold separately |
1 x Kensington lock slot
1 x Noble Wedge lock slot |
| LED Indicators |
Power Adapter LED
Power Button LED
RJ45 LEDs |
| Power |
Power Adapter 240 Watt AC with
up to 210 Watts power delivery
(When only one cable is connected to
the system, the second USB-C cable
behaves as USB-C with PowerShare
providing power for a peripheral or
mobile phone.)
Up to 90 Watts power delivery to
non-Dell systems |
| Dimensions |
8.07in x 3.54in x 1.14in |
| Dock Weight (without power adapter) |
585g
1.29lbs |
| Operating Systems |
Microsoft Windows 10
Ubuntu 18.04
Red Hat Enterprise Linux |
| Systems Management |
Wireless vPro supported by
Notebook or Workstation |
| Docking Interface |
Separable Dual DisplayPort over
USB-C |
| MAC Address |
Pass Through MAC Address |
| Management Features |
PXE Boot
Wake-On-LAN
MAC address pass-through
Port Disablement
Wake-On-Dock button
Wake-On-Dock
Dell Command Update (DCU)
Error messages and dock event
notifications |
[/specifications] [accesories] [/accesories]

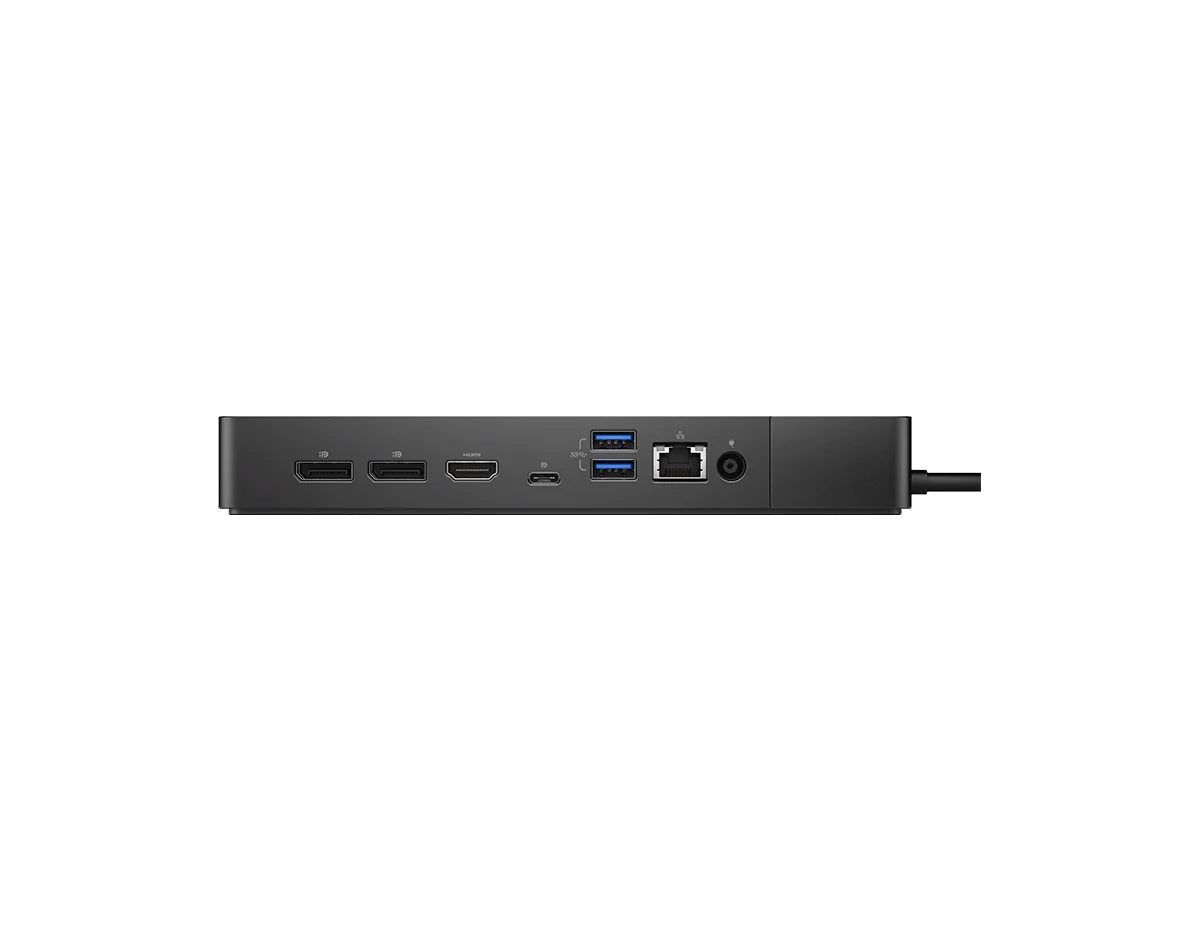

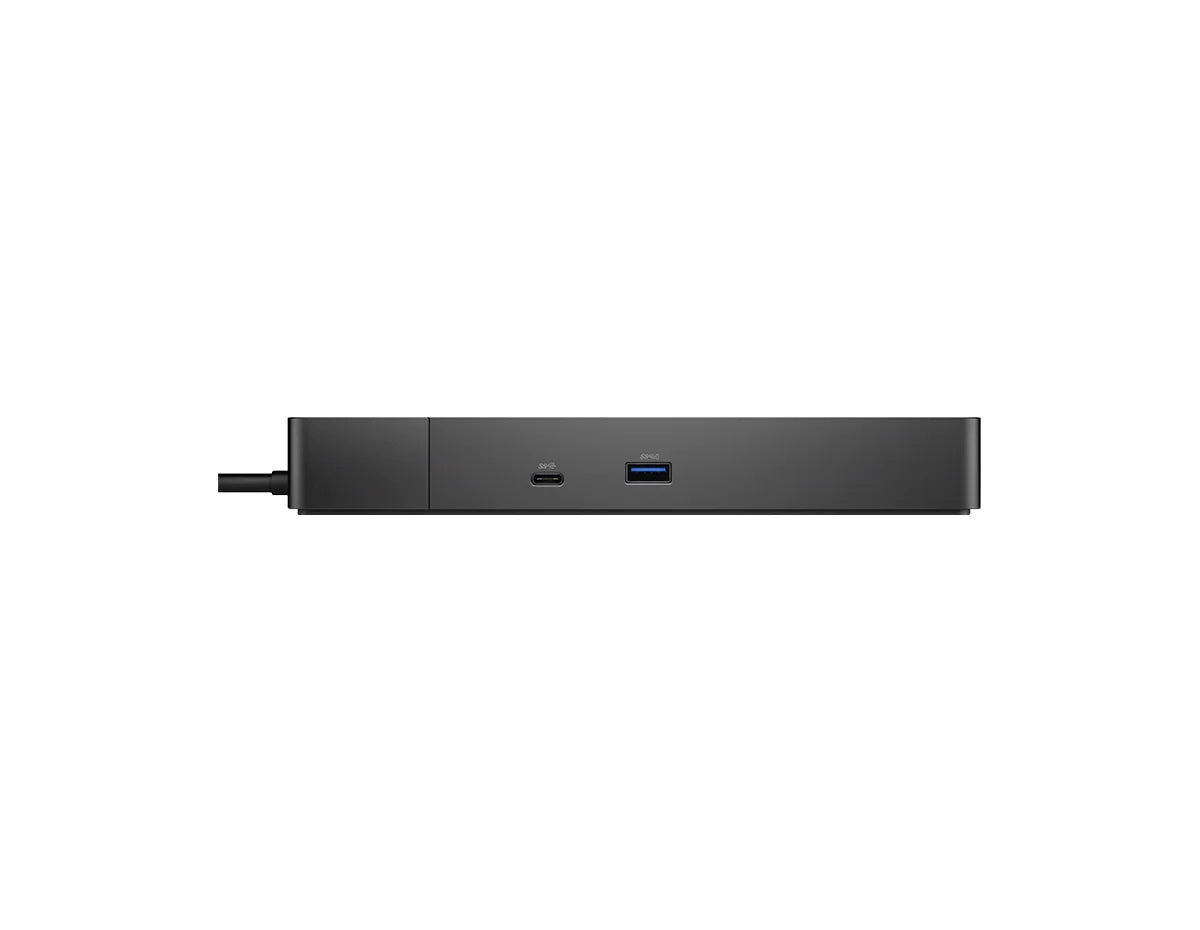

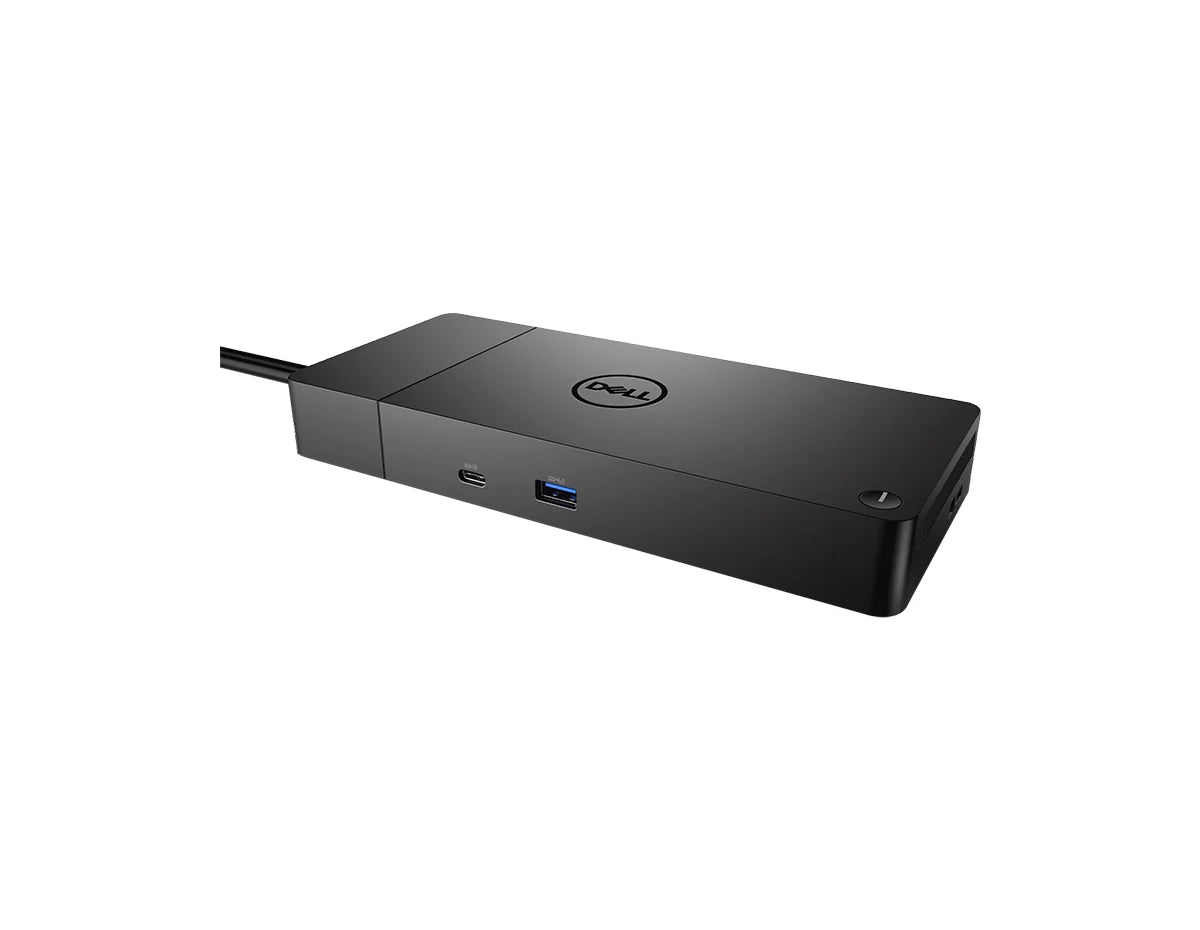

Dell WD19DCS Performance Docking Station
The Dell WD19DCS Performance Docking Station, which is compatible with both Windows and Linux operating systems, comes with two USB Type-C host connections that are connected by an integrated cable. You can use both of these connectors to provide up to 210W power to a Dell laptop or 90W power to a non-Dell device. Additionally, this docking station features three USB 3.1 Gen 1 Type-A or two USB 3.1 Gen 2 Type-C ports that can be used to connect accessories. You can also connect to the internet via an RJ45 connector that supports Gigabit Ethernet.
Quick Specs:
-
Supports up to 210W of Power Delivery
-
Dual USB Type-C Host Connectors
-
1x Kensington Lock Slot / 1x Noble Wedge Lock Slot
-
Intelligent Management
Please see the related tabs for the WD19DCS datasheet and compatible accessories.
