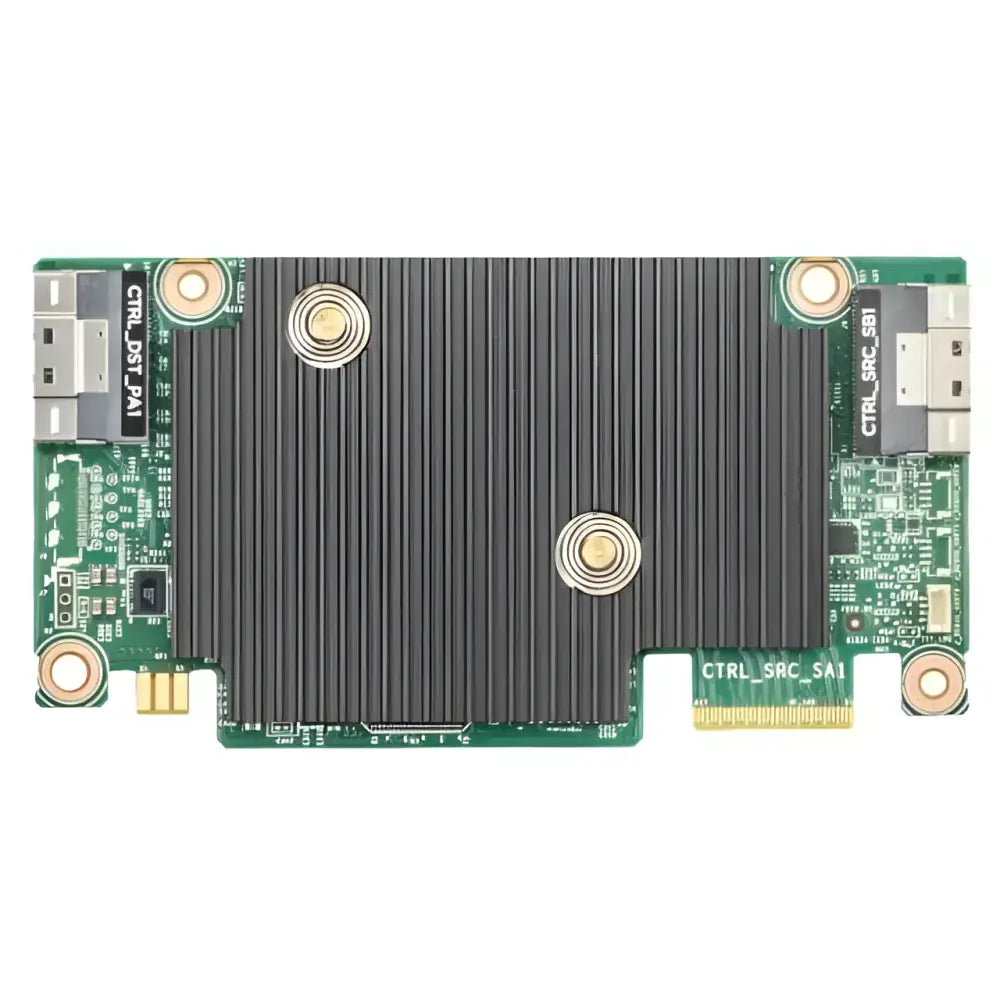

Dell PERC H345 Front RAID Controller (FW25F) — Enterprise Storage Made Affordable
Get reliable, entry-level hardware RAID for your Dell PowerEdge 15th Gen servers with this refurbished Dell PERC H345 12Gb SAS front RAID controller. Backed by Reef Telecom's industry-leading 10-year warranty, this controller delivers trusted Dell EMC PERC reliability at a fraction of the cost of new.
Key Specifications
-
Part Number: FW25F (0FW25F / Dell PN: DELL-PERC-H345-12G-FR)
-
Controller Family: Dell PERC 10 Series
-
SAS Controller Chipset: LSI SAS3416
-
Data Transfer Rate: Up to 12Gb/s per port (SAS 3.0)
-
Interface: PCI-Express 3.0
-
SAS Connectors: 2x8 Internal (SFF-8654)
-
Supported RAID Levels: RAID 0, 1, 10 (plus Non-RAID Pass-Thru)
-
Drive Support: 12Gb/s SAS, 6Gb/s SAS/SATA, 3Gb/s SAS/SATA HDDs and SSDs
-
Maximum Drives: Up to 63
-
Form Factor: Front-mount / PCIe Adapter Card (HHHL)
-
Condition: Refurbished — Fully Tested
Server Compatibility
Designed for Dell PowerEdge 15th Generation servers including the R650, R750, R6525, and R7525. Supports tiered storage with SAS and SATA hard drives and solid-state drives for optimized cost and performance.
Management & Monitoring
Easily manage this controller via Dell iDRAC9, Dell OpenManage Enterprise, or RACADM CLI — no agent deployment required. Physical disk power management minimizes energy costs when drives are idle.
