| Product Name |

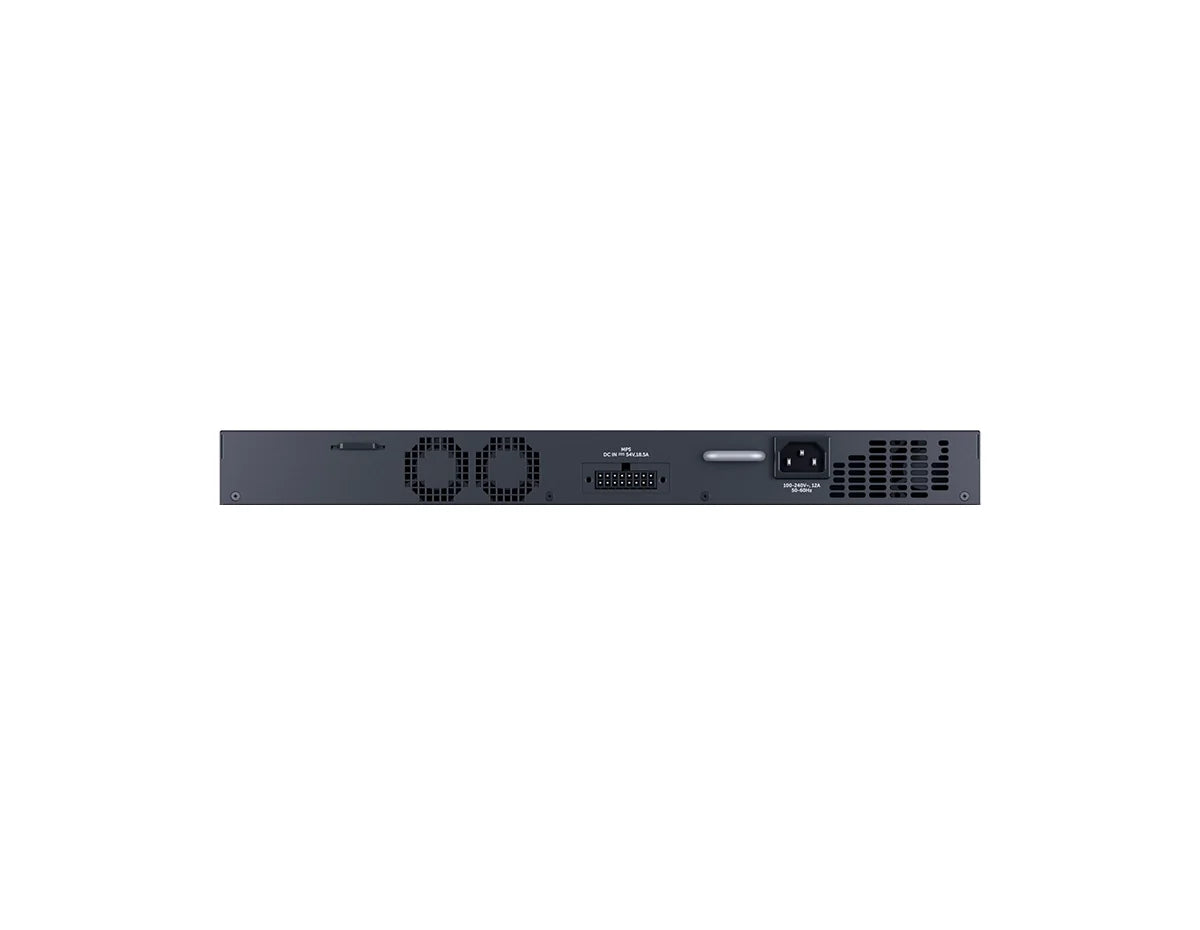

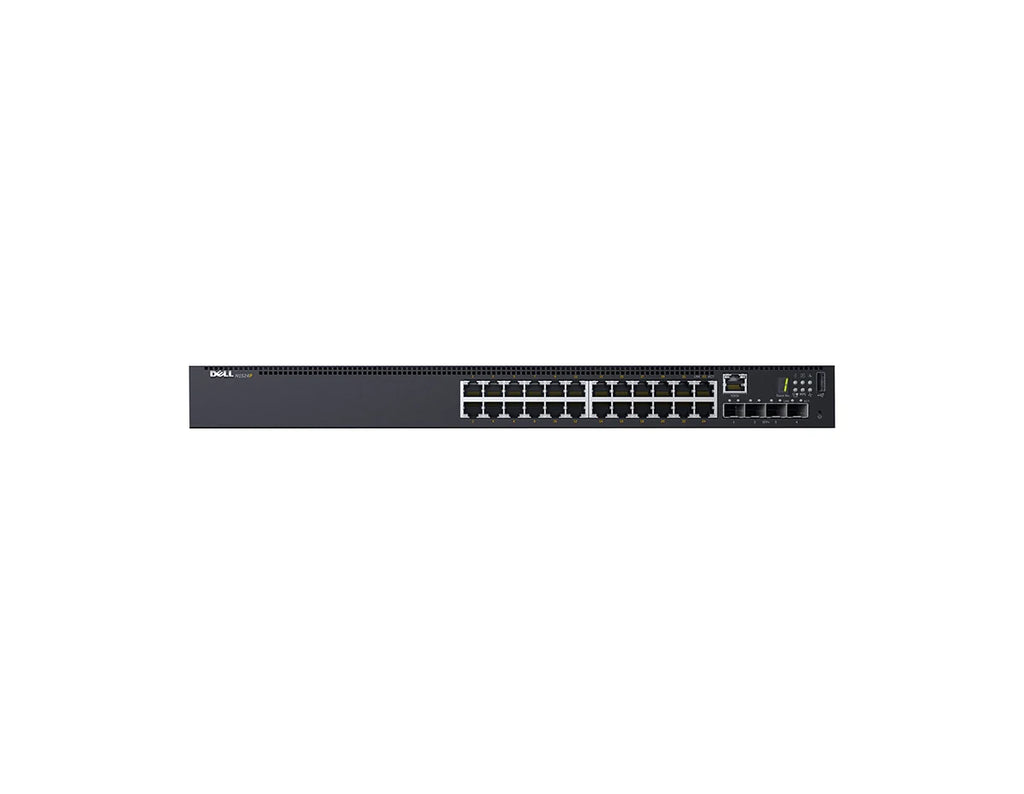

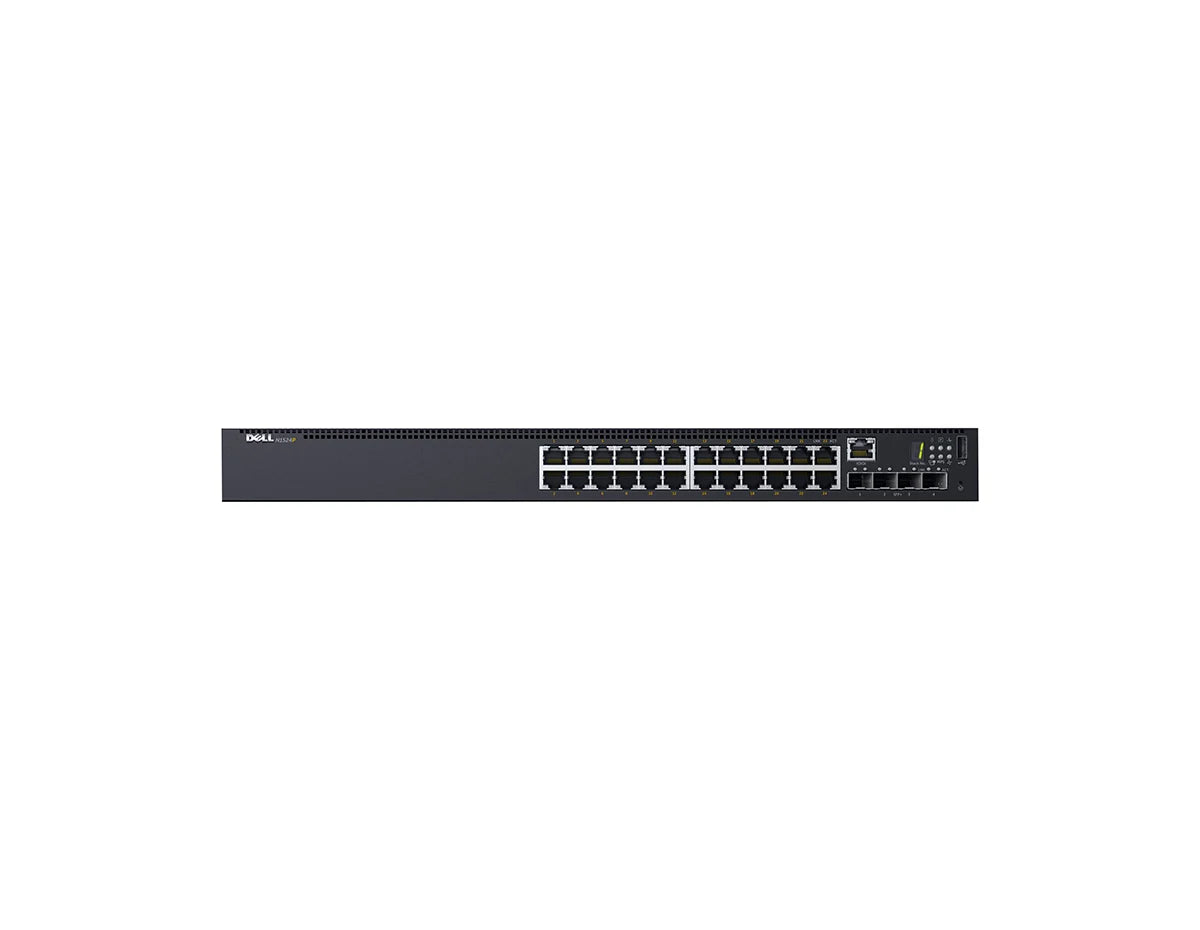

Dell 210-AEVY N1500 Series Switch |
| Product Description |
The Dell N1500 switch series provides an energy-efficient GbE network-access solution with integrated 10GbE uplinks. It features high-performance, wire-speed performance via a non-blocking architecture that manages traffic surges effectively. Centralized management is possible through a 40Gbps (full-duplex) stacking architecture, allowing up to four switches to be managed with one IP. |
| Port Configuration |
24 x RJ-45 10/100/1000Mb PoE+ auto-sensing ports |
| Uplink Ports |
4 x SFP+ uplink ports (10GbE) |
| Power Supply |
1 x integrated 600W PSU |
| Mounting |
Rack-mountable |
| Stacking Capacity |
40Gbps (full-duplex) stacking for high availability |
| Management |
Supports centralized management for up to four switches with a single IP |
| Energy Efficiency |
Designed for energy-efficient operation |
[/properties]
[specifications]
| Port Types |
24 x RJ-45 10/100/1000Mb PoE+ auto-sensing |
| Uplink Ports |
4 x SFP+ uplink ports (10GbE) |
| Power Supply |
Integrated 600W PSU |
| Stacking Bandwidth |
40Gbps (full-duplex) stacking |
| Switching Architecture |
Non-blocking for wire-speed performance |
| Management |
Centralized management of up to four switches via one IP address |
| Mounting |
Rack-mountable |
| Energy Efficiency |
Optimized for low power consumption |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Usage |
Ideal for network access in enterprise and business environments |
[/specifications]
The N1500 switch series provides an energy-efficient GbE network-access switching solution that includes integrated 10GbE uplinks. This series of switches is characterized by its high-performance features and ability to achieve wire-speed performance, facilitated by a non-blocking architecture that effectively manages unexpected traffic surges. Additionally, these switches offer straightforward management and scalability through a 40Gbps (full-duplex) high-availability stacking architecture, enabling the centralized management of up to four switches using a single IP address.
Quick Specs:
- 24x RJ-45 10/100/1000Mb PoE+ auto-sensing ports
- 4x SFP+ uplink ports
- 1x integrated 600W PSU
- Rack-mountable
Please see the related tabs for the 210-AEVY datasheet and compatible accessories
