Description

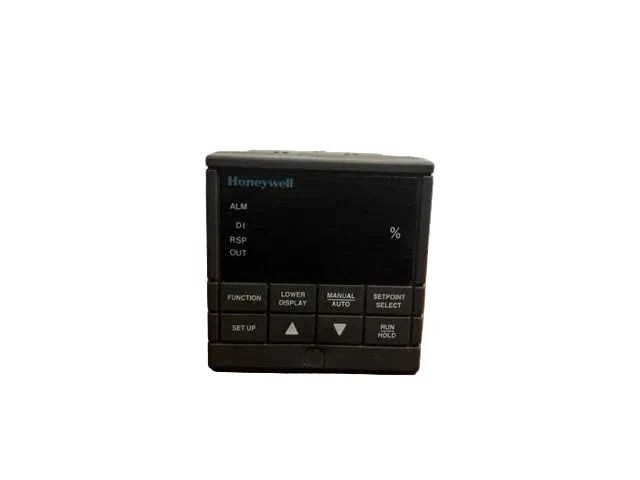

The Honeywell DC300C-0-000-10-0000-0 universal digital controller is a 1/4 DIN process controller designed for accurate monitoring and control of industrial process variables. Operating on a wide-range 90–264 VAC power supply, it supports multiple sensor input types and provides a 4–20 mA control output. This controller is commonly used for temperature and process regulation in industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Process Control |
| Part Number |
DC300C-0-000-10-0000-0 |
| Subcategory |
Digital Controllers |
| Product Line |
UDC3000 Versa-Pro |
| Product Type |
Universal Digital Controller |
| Form Factor |
1/4 DIN |
| Power Supply |
90–264 VAC |
| Process Variable Inputs |
TC, RTD, mV, 1–5 V |
| Control Output |
4–20 mA |
| Number of Outputs |
1 (no alarm) |
| Application |
Temperature and process control |
| Mounting Style |
Panel mount |
| Weight |
2.8 lb |
Information About DC300C-0-000-10-0000-0
The DC300C-0-000-10-0000-0 is part of Honeywell’s UDC3000 Versa-Pro controller family, developed for flexible and reliable single-loop control applications. It is designed to accept a variety of process variable inputs, including thermocouples, RTDs, millivolt signals, and 1–5 V inputs, allowing use across diverse industrial processes. The controller provides a single 4–20 mA analog output for direct control of actuators or interfacing with control systems. Built in a standard 1/4 DIN form factor, it integrates easily into control panels and enclosures for industrial environments.
Key Features:
- Universal Process Controller: Designed for single-loop temperature and process control applications.
- Multi-Signal Input Support: Accepts TC, RTD, mV, and 1–5 V process variable inputs.
- 4–20 mA Analog Output: Provides standard industrial control signal output.
- Wide AC Power Range: Operates from 90 to 264 VAC for global compatibility.
- 1/4 DIN Panel Size: Enables straightforward installation in standard control panels.
- Versa-Pro UDC3000 Series Design: Supports reliable and consistent control performance.
The DC300C-0-000-10-0000-0 delivers the reliability and precision required for industrial temperature and process control applications.
