Description

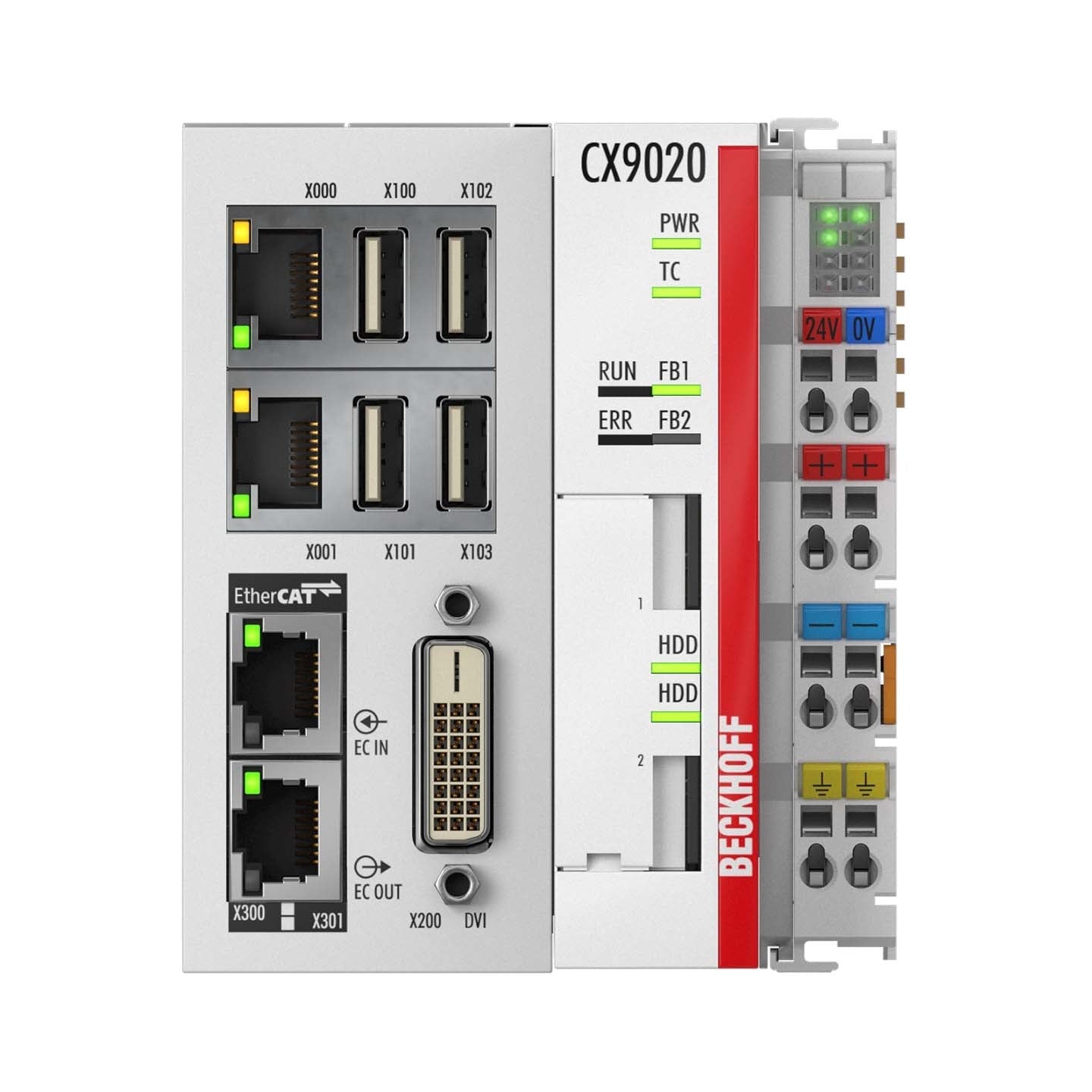

The Beckhoff CX9020-0110 is a modular DIN rail-mounted industrial PC equipped with a 1 GHz ARM Cortex-A8 processor. It features 1 GB of internal DDR3 RAM, 512 MB microSD flash memory, and dual Ethernet ports with an integrated switch, offering reliable and compact control for automation and communication systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
CX9020-0110 |
| Subcategory |
DIN Rail Industrial PC |
| Processor |
ARM Cortex-A8, 1 GHz |
| Processor Architecture |
32-bit RISC |
| Main Memory |
1 GB DDR3 RAM (non-expandable) |
| Flash Memory |
512 MB microSD card (exchangeable and expandable) |
| Ethernet Interfaces |
2 × RJ45 (10/100 Mbit/s, integrated switch) |
| USB Interfaces |
4 × USB 2.0 |
| Operating System |
Windows Embedded Compact or TwinCAT-compatible OS |
| Control Software |
TwinCAT 3 PLC runtime |
| Programming Languages |
IEC 61131-3 compliant |
| Expansion Options |
Supports additional I/O and communication modules |
| Mounting Type |
DIN rail mount |
| Power Supply |
24 V DC (-15%/+20%) |
| Current Consumption |
Typical for CX9000 series |
| Cooling Method |
Fanless, passive cooling |
| Protection Rating |
IP20 |
| Indicators |
Status and diagnostics LEDs |
| Bus Connection |
Supports EtherCAT and other Beckhoff I/O systems |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-25°C to +85°C |
| Relative Humidity |
Up to 95%, non-condensing |
| Dimensions (Approx.) |
Compact DIN rail format |
| Approvals |
CE, UL |
| Weight |
1.30 lbs (approx. 590 g) |
Information About CX9020-0110
The CX9020-0110 is part of Beckhoff’s CX9000 series of embedded industrial PCs designed for compact and modular automation solutions. Built around a 1 GHz ARM Cortex-A8 processor, it offers reliable performance for PLC and motion control tasks in distributed control environments. The device includes 1 GB of integrated DDR3 RAM and a replaceable 512 MB microSD flash card for operating system and data storage, which can be expanded as needed. Its dual 10/100 Mbit/s Ethernet ports with an internal switch enable flexible network topologies, while four USB 2.0 ports support peripheral connectivity. Engineered for space efficiency and fanless operation, the CX9020-0110 ensures stable and maintenance-free performance in industrial applications.
Key Features:
- Efficient ARM Cortex-A8 Processor: 1 GHz CPU provides responsive performance for automation and communication tasks.
- Integrated Memory Architecture: 1 GB DDR3 RAM and 512 MB expandable flash memory ensure reliable data handling.
- Dual Ethernet Ports: Built-in switch supports flexible network configurations and device connectivity.
- Modular Expansion: Compatible with Beckhoff I/O modules for scalable control system designs.
- Fanless Operation: Passive cooling guarantees quiet, maintenance-free, and durable operation.
- Multiple Interfaces: Four USB 2.0 ports allow connection of programming tools, storage, and peripherals.
- Compact DIN Rail Design: Space-saving form factor integrates easily into control panels and cabinets.
- TwinCAT 3 Compatibility: Fully supports Beckhoff’s automation platform for PLC and motion control.
The CX9020-0110 delivers the reliability and precision required for modular control, process automation, and distributed industrial applications.
