Description

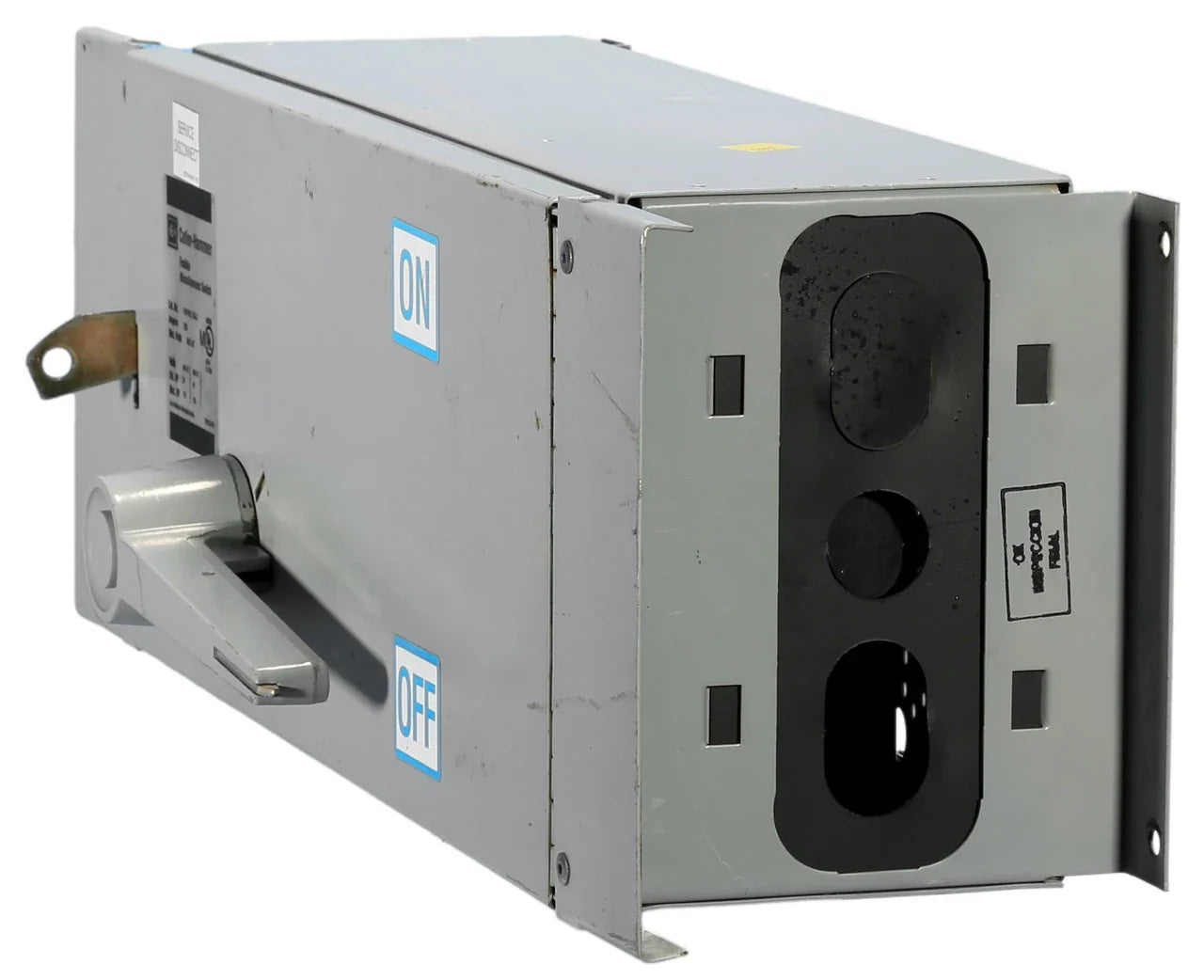

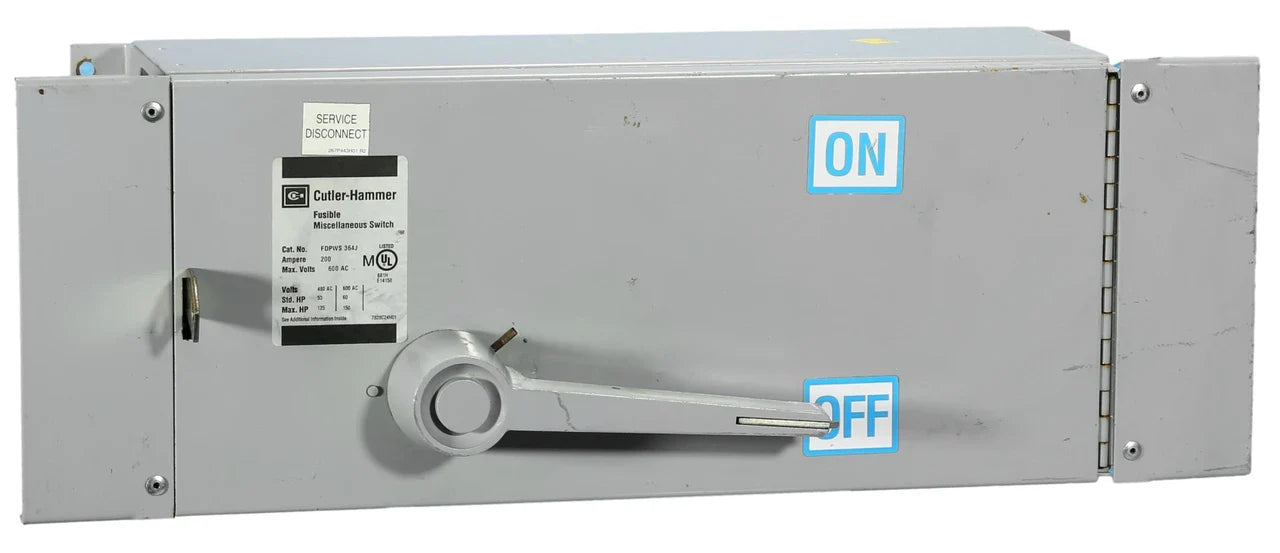

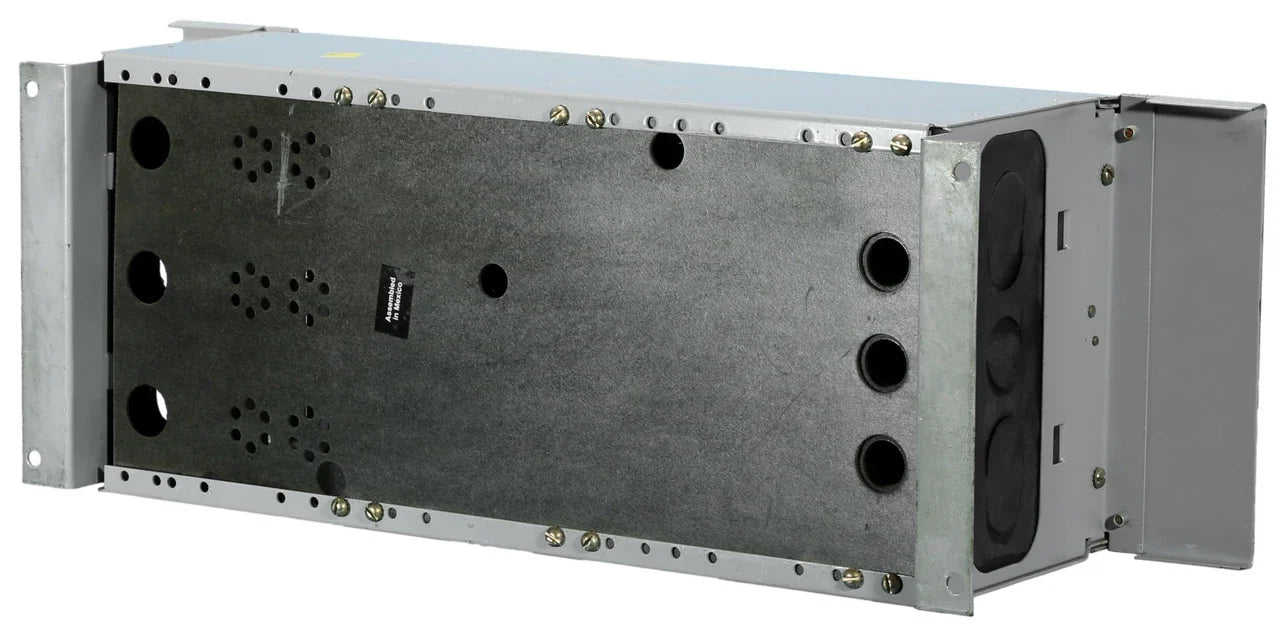

The Cutler Hammer FDPWS324R fusible panel board switch is a horizontal main switch designed for industrial and commercial electrical distribution systems requiring reliable circuit isolation and overcurrent protection. It features a 3-pole fusible configuration rated for 200 A and operates at up to 240 VAC in 3-phase applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cutler Hammer |
| Category |
Electrical Distribution |
| Part Number |
FDPWS324R |
| Subcategory |
Fusible Panel Board Switches |
| Product Type |
Horizontal Main Fusible Panelboard Switch |
| Voltage Rating |
240 VAC Max |
| Amperage Rating |
200 A |
| Phase |
3 Phase |
| Number of Poles |
3 |
| Protection Type |
Fusible |
| Application |
Main Distribution and Circuit Protection |
| Manufacturer |
Eaton |
| Mounting Configuration |
Horizontal Main Switch |
| Weight |
16 lb |
Information About FDPWS324R
The FDPWS324R is a fusible panelboard switch manufactured by Eaton Cutler Hammer for use in commercial and industrial power distribution systems. Designed as a horizontal main switch assembly, the unit provides reliable disconnect and overcurrent protection functions for feeder and branch electrical circuits. This 3-pole switch supports 3-phase systems operating up to 240 VAC with a 200 A current rating for medium-capacity distribution requirements. Its fusible design enhances fault-current protection while supporting integration into panelboards and electrical distribution assemblies.
Key Features:
- 200 Amp Rating: Supports medium-capacity commercial power distribution systems.
- 240 VAC Operation: Designed for industrial and commercial electrical applications.
- 3-Pole Configuration: Suitable for 3-phase power distribution systems.
- Fusible Protection Design: Provides integrated overcurrent and fault protection.
- Horizontal Main Switch Layout: Supports panelboard main distribution configurations.
- Eaton Cutler Hammer Construction: Compatible with Eaton distribution equipment.
- Industrial Switching Application: Intended for feeder and branch circuit control.
- Reliable Disconnect Function: Allows safe electrical isolation during maintenance.
The FDPWS324R delivers the reliability and precision required for industrial circuit protection and panelboard power distribution applications.
