Description

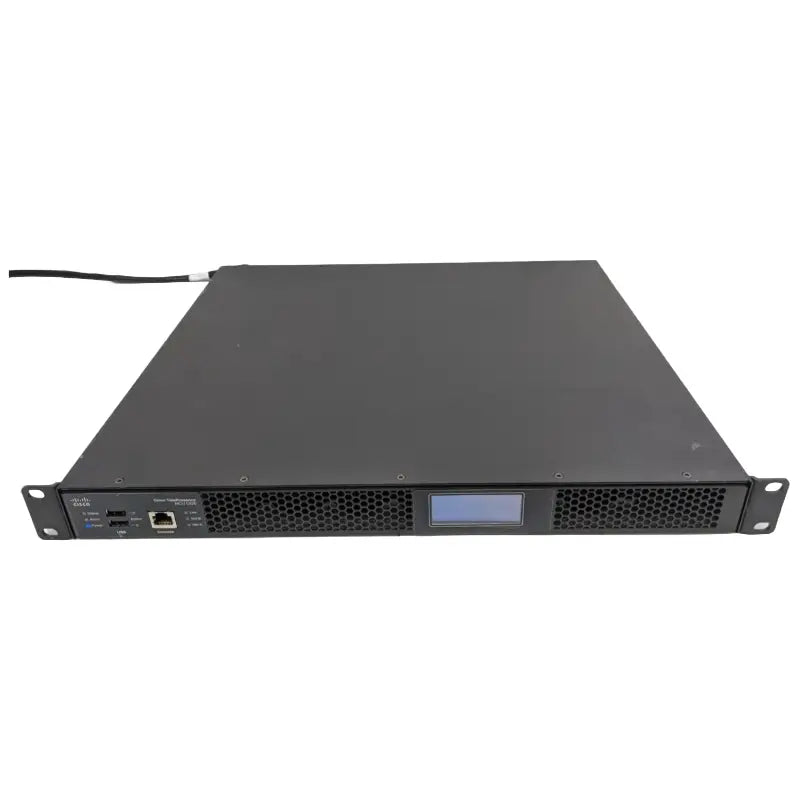

The Cisco CTI-5320-MCU-K9 is a high-performance multipoint control unit (MCU) designed for scalable, reliable video conferencing across enterprise environments.

Technical Specifications

Information About CTI-5320-MCU-K9

The Cisco CTI-5320-MCU-K9 is a high-performance multipoint control unit (MCU) designed for video conferencing in enterprise and service provider environments. It enables multiple video endpoints to connect in a single conference with real-time transcoding and wide protocol compatibility.

Key Features:

• Maximum Video Ports: Up to 10x 1080p30/720p60, 20x 720p30, 40x w448p30, or 48x w360p30 (with maximum port licensing)

• Additional Voice Participants: 10 via 1080p30/720p60 or 20 via 720p30

• Video Standards: H.264, H.263++, H.263+, H.263, H.261

• Audio Standards: G.711, G.722, G.728, G.729, AAC-LC

• Picture Quality: Up to 1080p HD

• Sound Quality: Wideband audio

• Bandwidth: Up to 4 Mbps per session

• Stackable: Yes

• Dual Monitor Support: Supported

• Content Sharing: Supported

• Network Ports: 10/100/1000 Mbps Ethernet

• Additional Ports: RS-232

• Display: Backlit LCD for live system status

• Protocols: H.323, SIP, H.235, IPv6, H.239, BFCP

• Chassis: 19" rack-mountable

This MCU is part of Cisco’s advanced video collaboration portfolio, known for delivering high-definition conferencing, robust interoperability, and scalability. It is ideal for medium to large enterprises, educational institutions, and healthcare providers requiring reliable multiparty video communications.
