Description

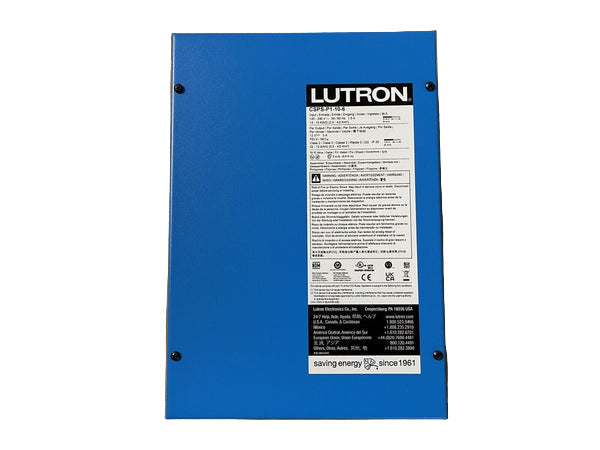

The Lutron CSPS-P1-10-6 Power Supply Panel is a 10-output Class 2 power distribution module designed for Lutron lighting and shade control systems. It provides regulated low-voltage DC power to multiple control devices, ensuring stable and reliable operation in centralized lighting installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
CSPS-P1-10-6 |
| Subcategory |
Power Supply Panels |
| Type |
10-Output Power Supply Panel |
| Voltage Input |
120/277 VAC, 50/60 Hz (typical) |
| Voltage Output |
Low-voltage DC (Class 2 rated) |
| Number of Outputs |
10 individually protected outputs |
| Output Classification |
Class 2, NEC/UL compliant |
| Power Distribution |
Evenly regulated across all outputs |
| Mounting Type |
Wall mount |
| Installation Location |
Indoor use only |
| Communication Support |
Compatible with Lutron lighting control systems |
| Material |
Steel enclosure |
| Color/Finish |
White |
| Protection Features |
Overcurrent, short-circuit, and thermal protection |
| Smart Home Compatibility |
Lutron HomeWorks, Quantum, and related systems |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Dimensions (H × W × D) |
14 in × 12 in × 4 in (approx.) |
| Certifications |
UL Listed, Class 2 rated |
| Country of Origin |
USA |
| Application |
Power distribution for control modules and wallstations |
| Weight |
7.5 lb (approx.) |
Information About CSPS-P1-10-6
The CSPS-P1-10-6 belongs to Lutron’s power supply panel series, purpose-built to support control components such as wallstations, keypads, sensors, and interfaces in Lutron HomeWorks or Quantum systems. This panel delivers consistent low-voltage power across up to ten individually protected outputs, each engineered for efficiency and load stability. Designed for wall-mounted indoor applications, it simplifies wiring in large installations while maintaining compliance with Class 2 and UL standards. Its compact form factor and integration-ready design make it ideal for both new construction and retrofit control system deployments.
Key Features:
- Ten Independent Outputs: Supplies low-voltage DC power to up to ten control devices or zones.
- Class 2 Rated: Provides safe, limited-energy output per NEC and UL requirements.
- Stable DC Power: Ensures consistent operation of connected keypads, sensors, and modules.
- System Integration: Compatible with Lutron HomeWorks, Quantum, and other control systems.
- Wall-Mount Design: Simplifies installation and cable management in control closets or panels.
- High Reliability: Engineered for continuous duty operation in commercial and residential systems.
- Thermal and Short-Circuit Protection: Safeguards connected devices from overcurrent or overload conditions.
- Smart System Compatibility: Works seamlessly with Lutron’s intelligent lighting control architecture.
The CSPS-P1-10-6 delivers the reliability and precision required for powering distributed low-voltage lighting control networks.
