Description

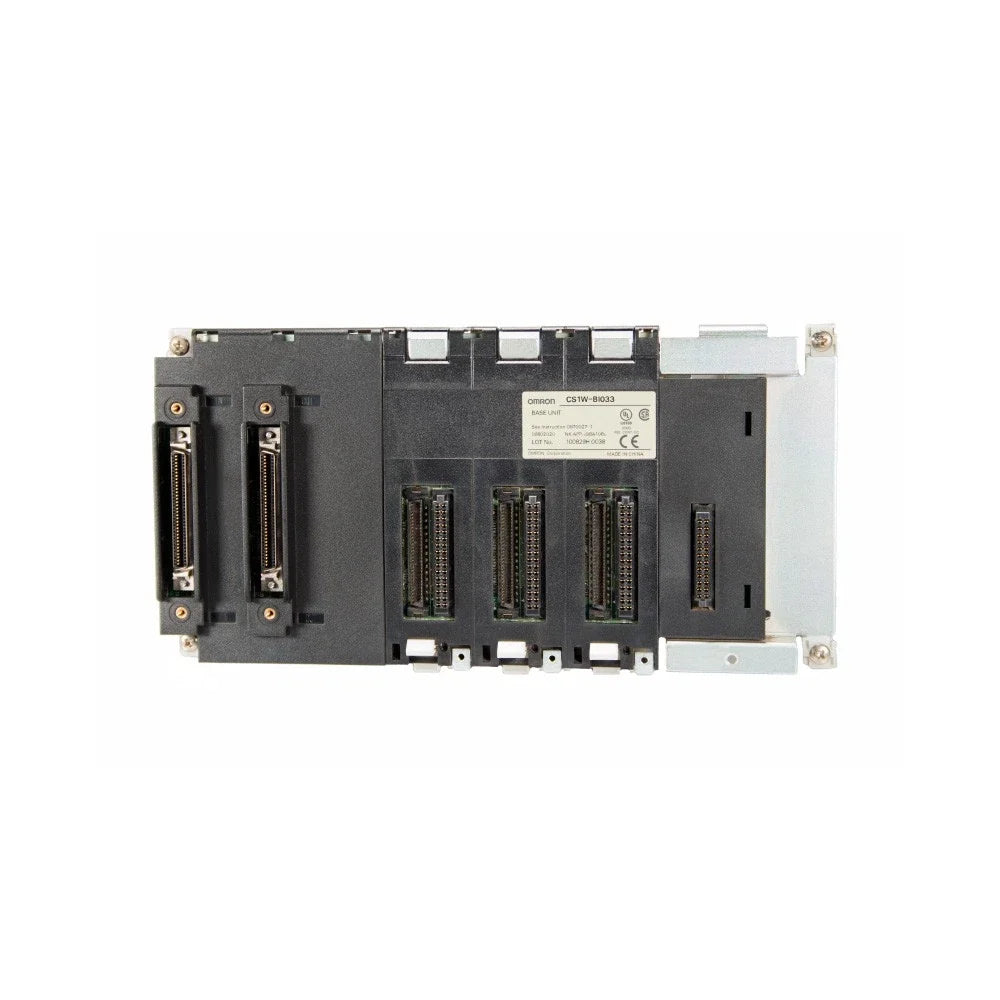

The Omron CS1W-BI033 is a 3-slot CPU backplane designed for CS1 and C200H Series PLC systems. It provides mechanical support and electrical interconnection for CPU and expansion I/O modules within a control panel. With a 5 V system current consumption of 0.23 A, this backplane ensures stable integration of PLC components in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
CS1W-BI033 |
| Subcategory |
PLC Backplanes |
| Product Line |
CS1W Series |
| Product Type |
3-Slot CPU Backplane |
| Slot Count |
3 Slots |
| Technical Compatibility |
CS1 Series, C200H Series |
| Mounting Type |
Panel or Surface Mount |
| Power Consumption |
0.23 A at 5 V |
| Operating Temperature Range |
-10°C to +55°C |
| Storage Temperature Range |
-25°C to +70°C |
| Expandable |
Yes |
| Application |
CPU and Expansion I/O Integration |
| Weight |
2.00 lbs (0.91 kg) |
Information About CS1W-BI033
The CS1W-BI033 is a backplane unit developed for use with Omron CS1 and C200H Series programmable controllers. It features three slots for mounting CPU and expansion I/O modules, enabling compact and expandable PLC configurations. Designed for panel or surface mounting, it supports secure installation within control cabinets. Operating within a temperature range of -10°C to +55°C and compatible with related CS1 and C200H products, it provides dependable system expansion and interconnection.
Key Features:
- 3-Slot Configuration: Accommodates CPU and expansion I/O modules in compact setups.
- CS1 and C200H Compatibility: Supports both series for flexible system integration.
- Expandable Design: Enables scalable PLC architecture.
- Low System Current Consumption: 0.23 A at 5 V system power.
- Panel or Surface Mounting: Provides secure installation in control enclosures.
- Wide Operating Temperature Range: Operates from -10°C to +55°C.
- Industrial Storage Range: Withstands storage temperatures from -25°C to +70°C.
The CS1W-BI033 delivers the reliability and precision required for stable PLC module mounting and expansion in CS1 and C200H automation systems.
