Overview

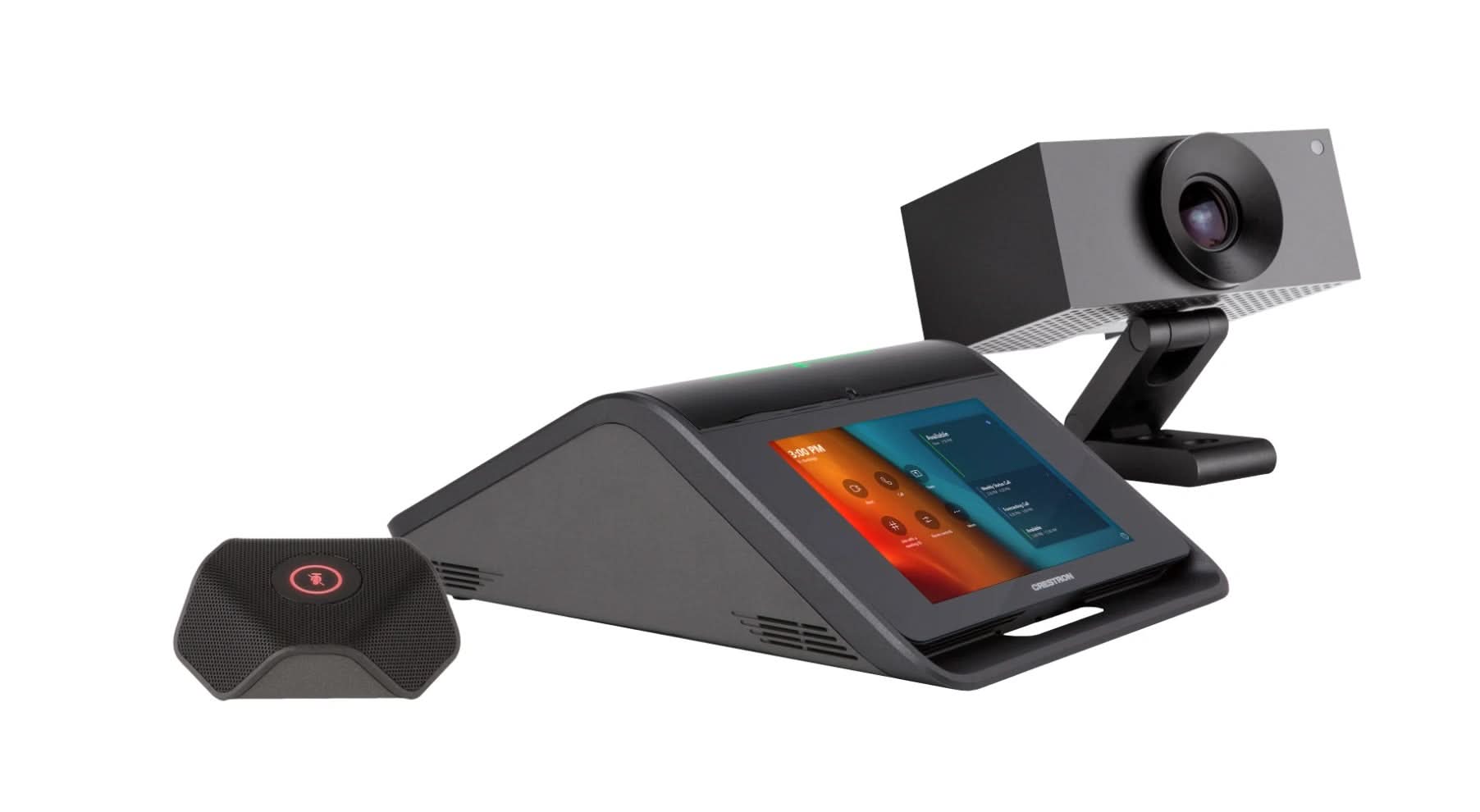

The Crestron Flex UC-MX70-T KIT provides a complete tabletop video conferencing solution for large rooms using native Microsoft Teams Rooms software. This kit includes a high-definition AI collaboration camera and an extension microphone pod for expanded audio.
Specifications
Model Number: UC-MX70-T KIT
Brand: Crestron
Alt Part Number(s): UC-MX70-T KIT
Product Type: Video Conference System
Specifications
Brand: Crestron
Model: UC-MX70-T KIT
Display Diagonal Size: 7"
Native Resolution: 1280 x 800
Monitor Features: Touch Screen
Technology: TFT active matrix
Image Sensor: 20.30 Megapixels 1 in. CMOS Sensor
Resolution/FPS: HD 1080p @ 30 fps
Lens: High precision, wide angle, aspherical glass lens
Field of View: 103º diagonal, 92º horizontal, 65º vertical
Autozoom: Genius Framing automatic lossless digital zoom intelligently frames around
Connectivity: USB 3.0 port (via USB to PoE Adapter)4
Power: 5VDC power adapter
Communications: A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to
Microphone: Triple mic array with (3) cardioid electret elements
Pickup Range: 20 ft (6 m) typical, 360°
Mic Mute: Capacitive button with bi-color LED, toggles between mute and unmute
Connectors: RJ9 4P4C connector, female
Power: Powered via the CCS-UC-1-X through the A2B bus
*
