Description

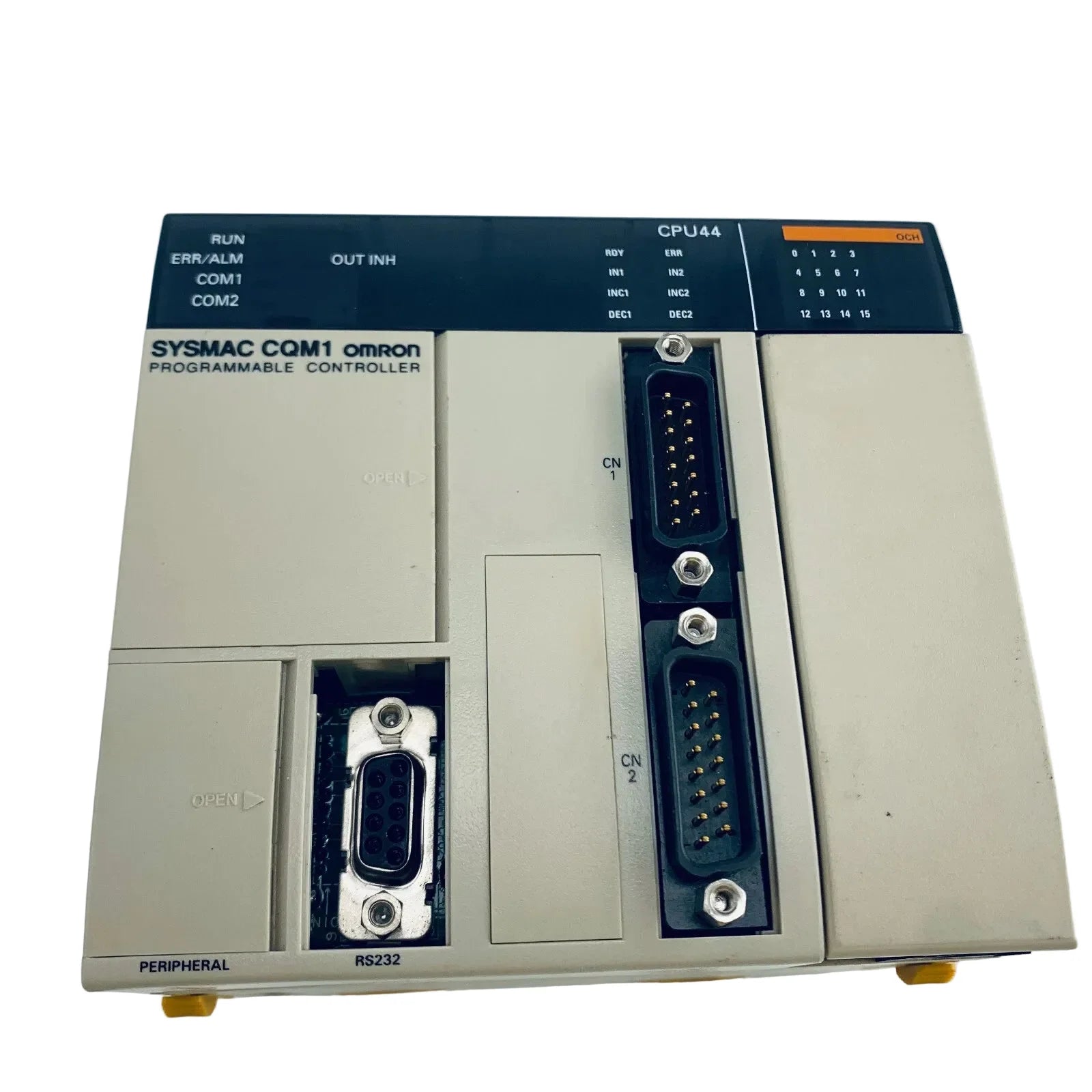

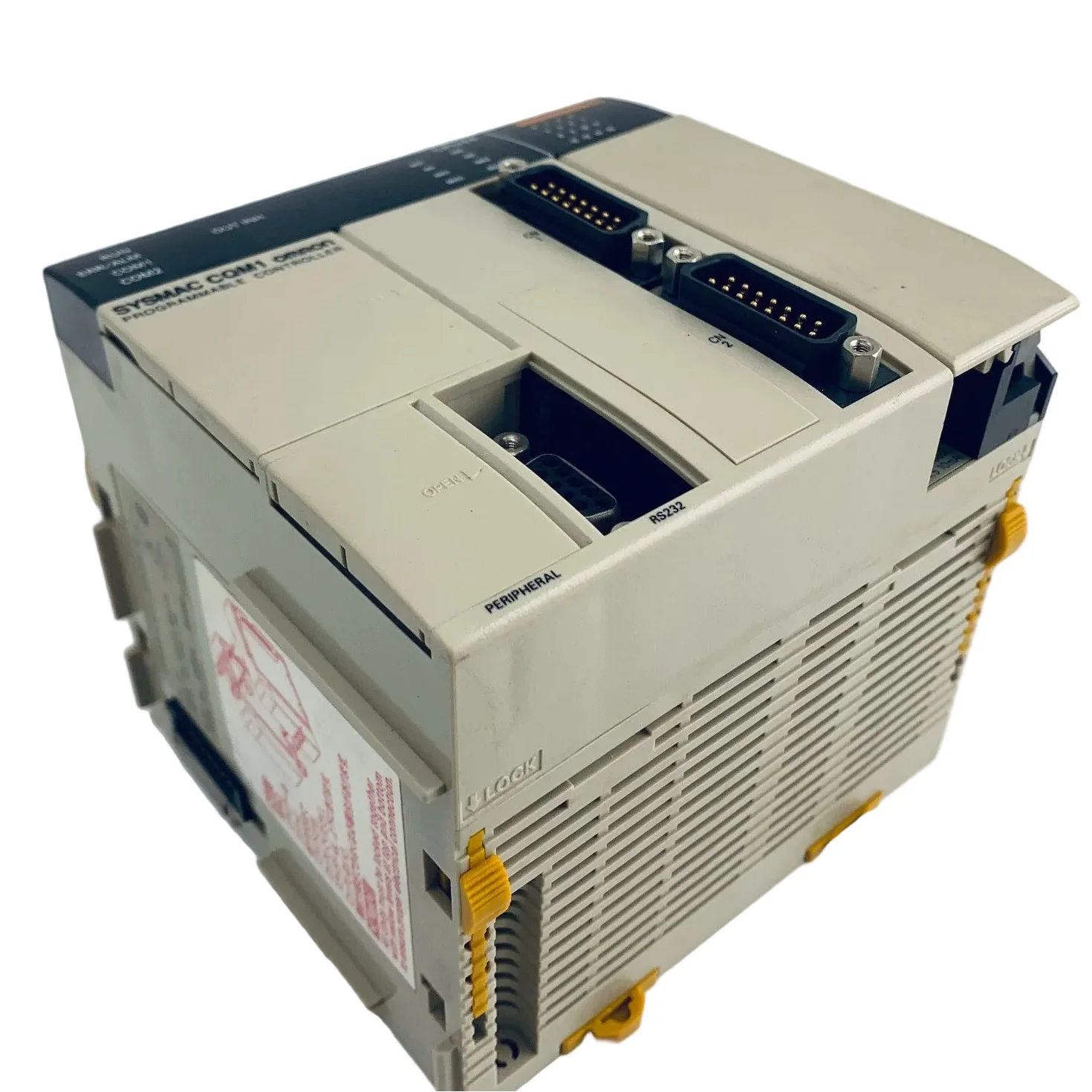

The Omron CQM1-CPU44-E is a programmable controller CPU module from the CQM1 series designed for compact industrial automation systems. It offers a program capacity of 15.2 KB and 6,144 words of data memory for control and monitoring applications. Operating on 24 VDC, this unit supports up to 512 I/O points with expansion capability for modular system configuration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CQM1-CPU44-E |
| Subcategory |
PLC Module/Rack |
| Series |
CQM1 |
| Program Capacity |
15.2 KB |
| Data Memory |
6,144 Words |
| Maximum I/O Capacity |
512 Points |
| Execution Speed |
0.96 µs |
| Power Supply |
24 VDC |
| Communication Ports |
RS-232C |
| Expansion Capability |
Up to 10 Modules |
| Operating Temperature |
0°C to 55°C |
| Mounting Type |
DIN Rail |
| Weight |
1.15 lbs |
Information About CQM1-CPU44-E
The CQM1-CPU44-E is a central processing unit within the Omron CQM1 PLC family, developed for medium-scale control tasks. It provides high-speed instruction execution with a processing time of 0.96 µs to support responsive automation sequences. The module includes RS-232C communication ports for connection to programming devices and peripheral equipment. Designed for DIN rail mounting, it allows expansion of up to 10 additional modules to extend I/O capacity and system functionality.
Key Features:
-
15.2 KB Program Capacity: Supports structured ladder logic programs for industrial control.
-
6,144 Words Data Memory: Provides storage for registers, counters, and control data.
-
512 Max I/O Capacity: Handles medium-scale automation systems.
-
High-Speed Execution: 0.96 µs instruction processing for responsive operation.
-
RS-232C Communication: Enables connection to programming and external devices.
-
24 VDC Power Supply: Standard DC input for industrial control panels.
-
Expandable Architecture: Supports up to 10 expansion modules.
-
Industrial Temperature Range: Operates from 0°C to 55°C.
The CQM1-CPU44-E delivers the reliability and precision required for programmable control and automation system management.
