Description
The Omron 3G8B3-AX000 is a rack-based motion and logic controller designed for high-end industrial automation systems. Serving as the main CPU module in Omron’s NX/NJ or higher-tier platform, it offers integrated performance for sequence control, motion coordination, and networked I/O management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| BrandPart Number |
Omron |
| Category |
|
| Part Number |
CPM2C-20C1DR-D |
| Subcategory |
PLC Expansion Modules |
| Series |
CPM2C Series |
| Primary Type |
Controller |
| Mounting Type |
Panel Mount / DIN Rail
|
| Supply Voltage |
24 VDC |
| Supply Current |
8 mA |
| Input Type |
DC |
| Number of Digital Inputs |
12 |
| Number of Digital Outputs |
8 |
| Number of I/O Ports |
20 |
| Output Type |
Relay |
| Input Current |
5 mA |
| Communication Port Type |
RS-232C |
| Termination Style |
Terminal Block |
| External Depth |
65 mm |
| Weight |
0.45 kgs |
Information About CPM2C-20C1DR-D

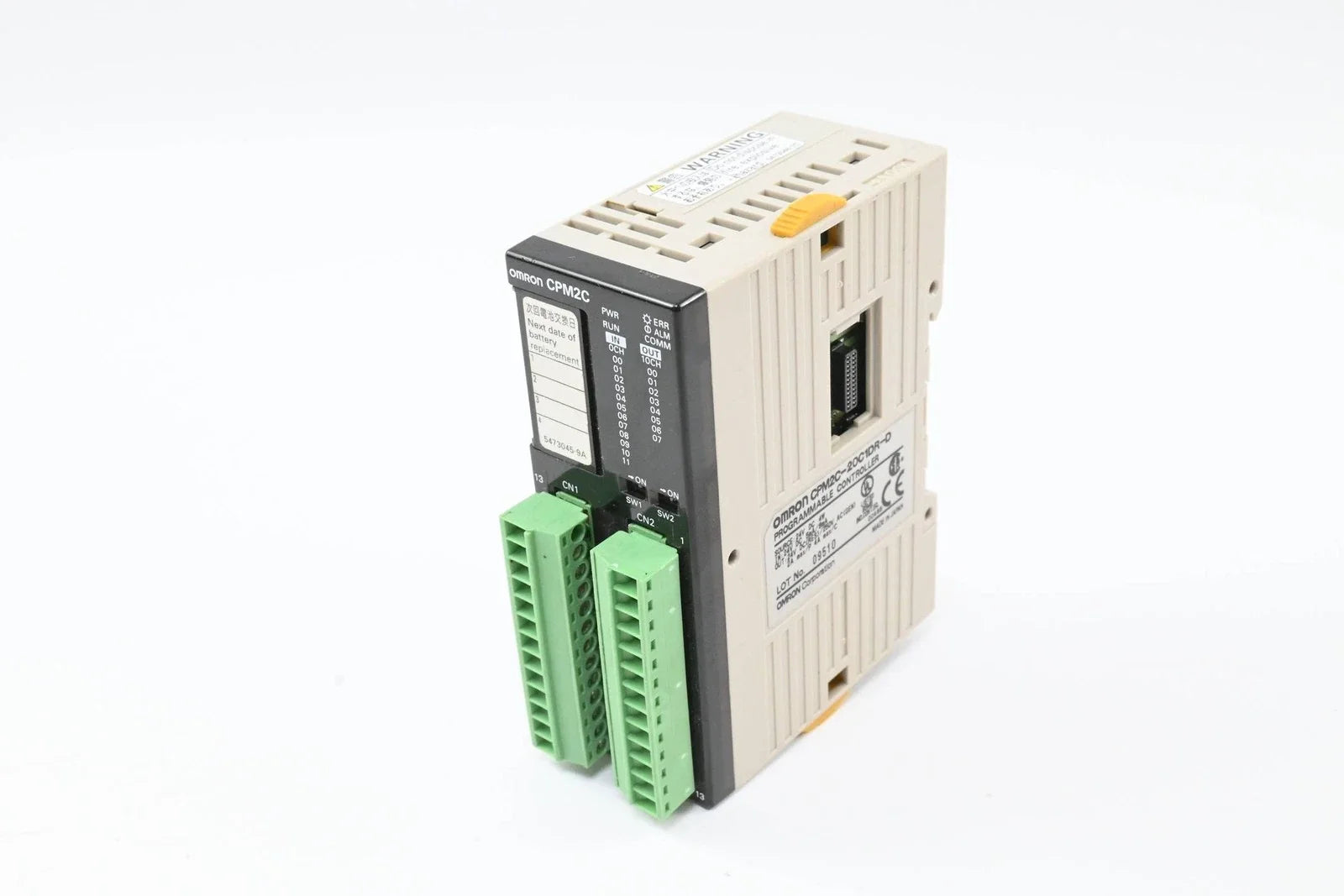

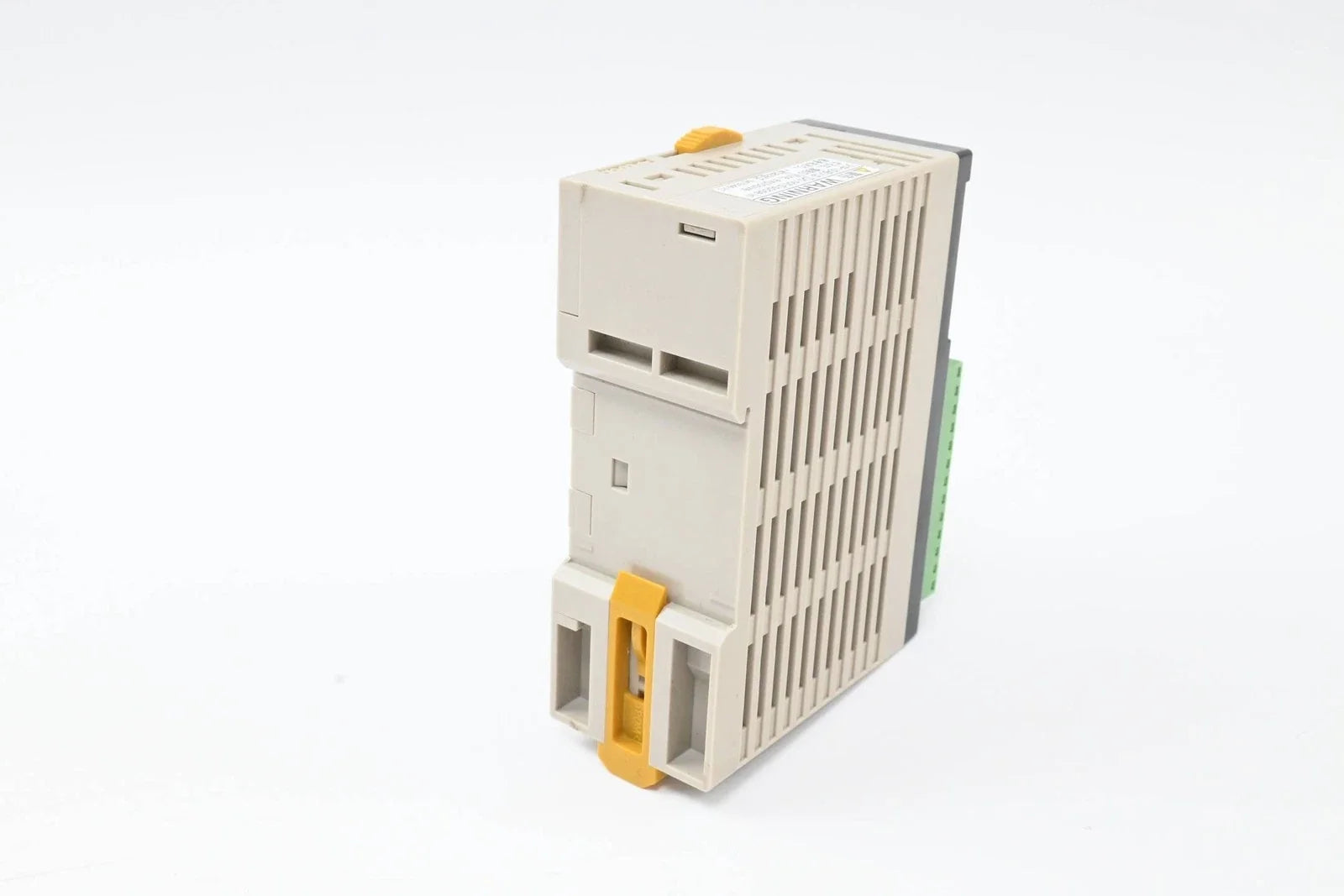

The Omron CPM2C-20C1DR-D is a compact programmable logic controller (PLC) designed for small-to-medium industrial automation tasks. Part of the CPM2C Series, this controller features 12 digital inputs and 8 relay outputs, providing reliable control over sensors and actuators. With integrated RS-232C communication and a real-time clock (RTC), the CPM2C-20C1DR-D supports time-based operations and serial device integration within a slim, DIN-rail mountable housing. Although now discontinued, it remains widely used in legacy equipment requiring compact and expandable control.
Key Features:
- 12 Digital Inputs & 8 Relay Outputs: Handles basic digital I/O control tasks for machinery and equipment.
- RS-232C Communication: Enables serial device connection and programming interface for data exchange and monitoring.
- Integrated Real-Time Clock (RTC): Supports scheduled control processes without external clock modules.
- 24 VDC Power Supply: Standard low-voltage power input for efficient and safe operation.
- Panel or DIN-Rail Mountable: Compact form allows space-saving installations within control panels.
- Terminal Block Termination: Simplifies connection of input/output wiring in field environments.
- Expandable I/O Capability: Supports additional I/O modules to scale system capacity up to 192 points.
- Multi-Function Control: Offers stored program control and synchronized pulse output management for basic motion control tasks.
- RoHS Compliant: Environmentally friendly and compliant with hazardous material restrictions.
- Discontinued Model: Now available primarily via surplus channels for supporting legacy automation systems.
The Omron CPM2C-20C1DR-D provides dependable control in compact industrial systems. Its built-in real-time clock, RS-232C interface, and relay output flexibility make it suitable for automated machinery, small conveyors, and OEM control panels requiring compact, programmable control solutions.
