Description

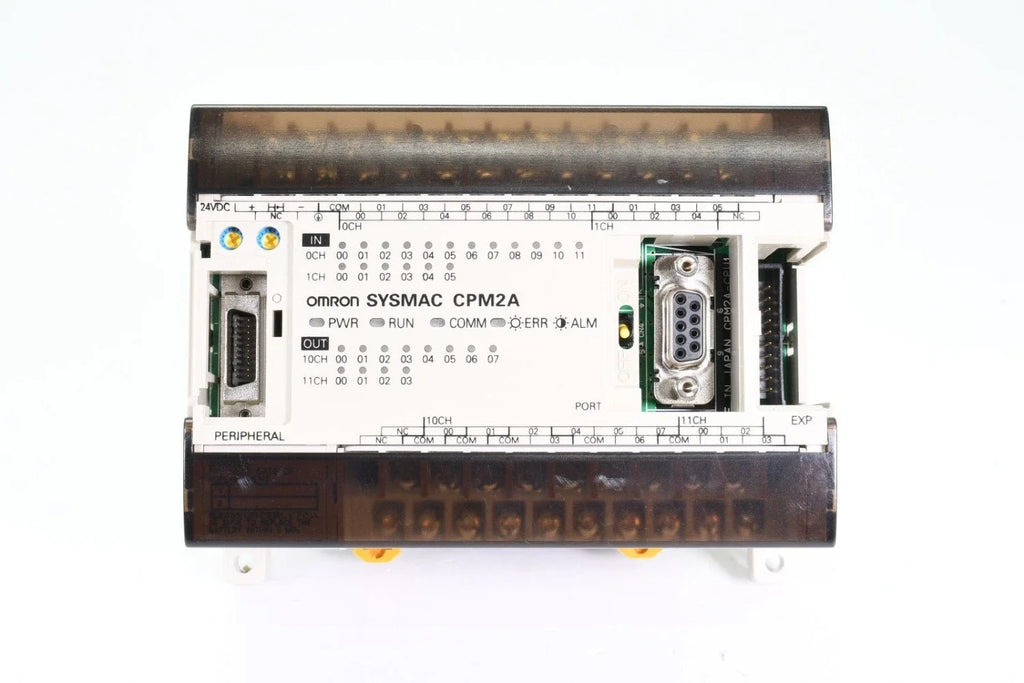

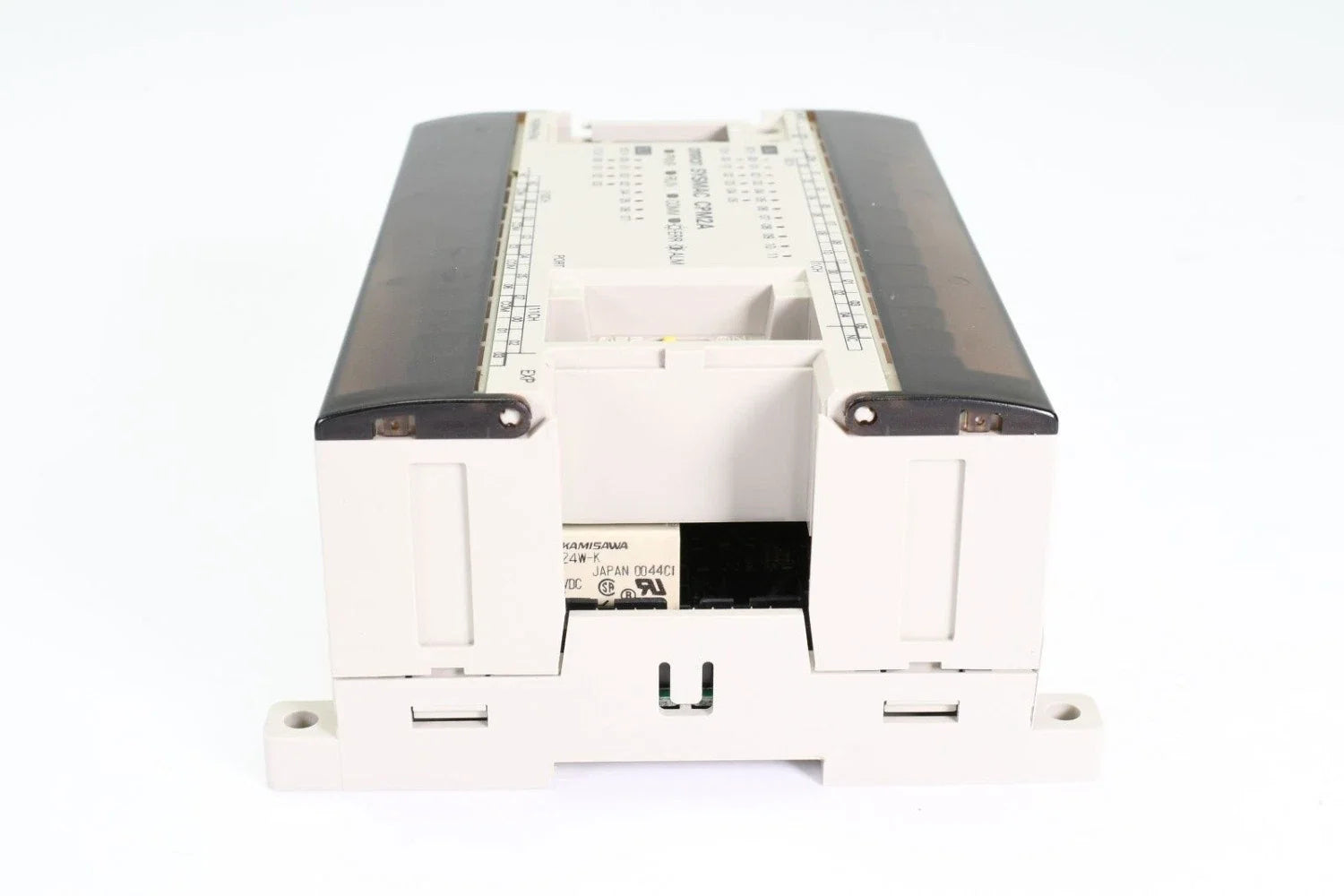

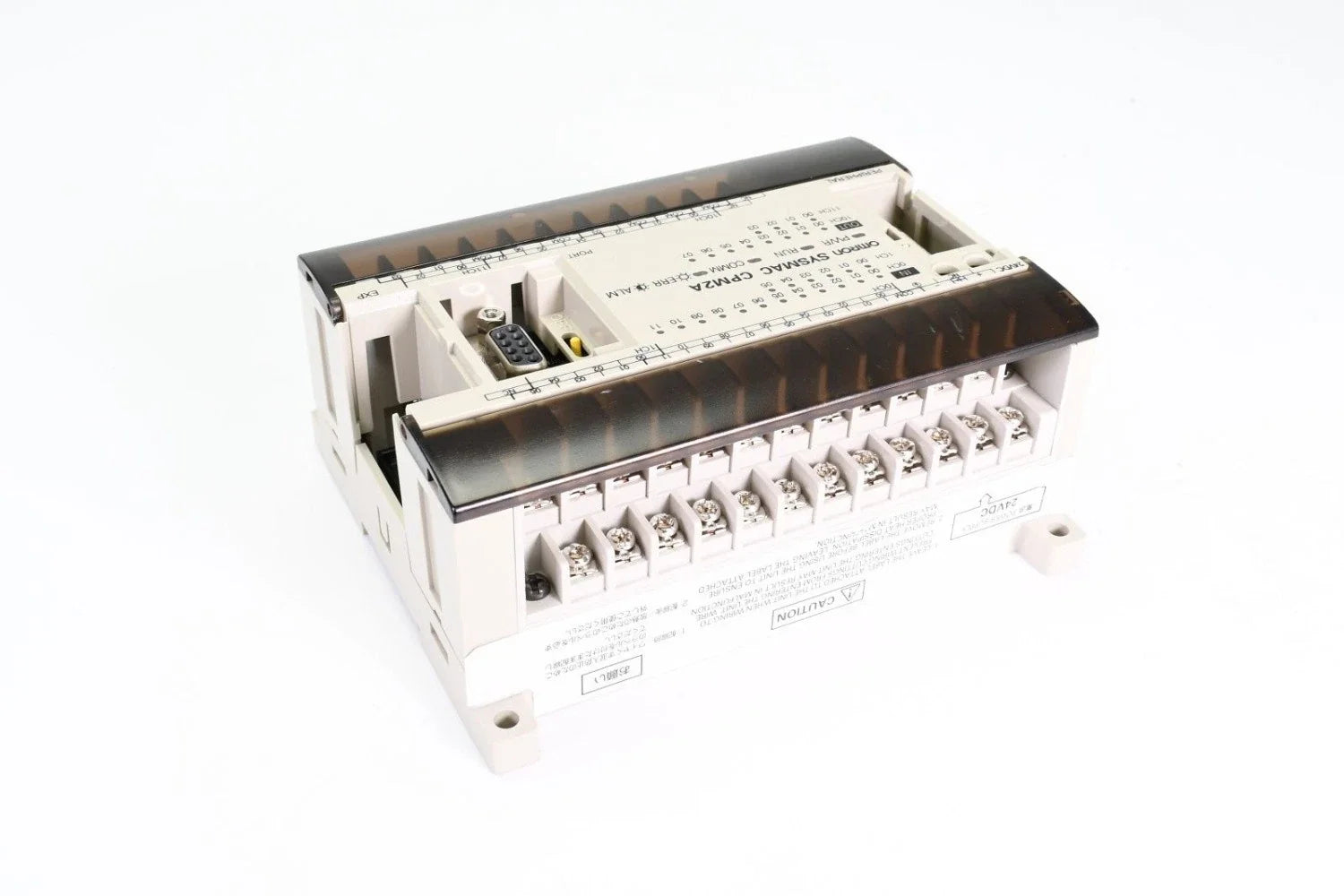

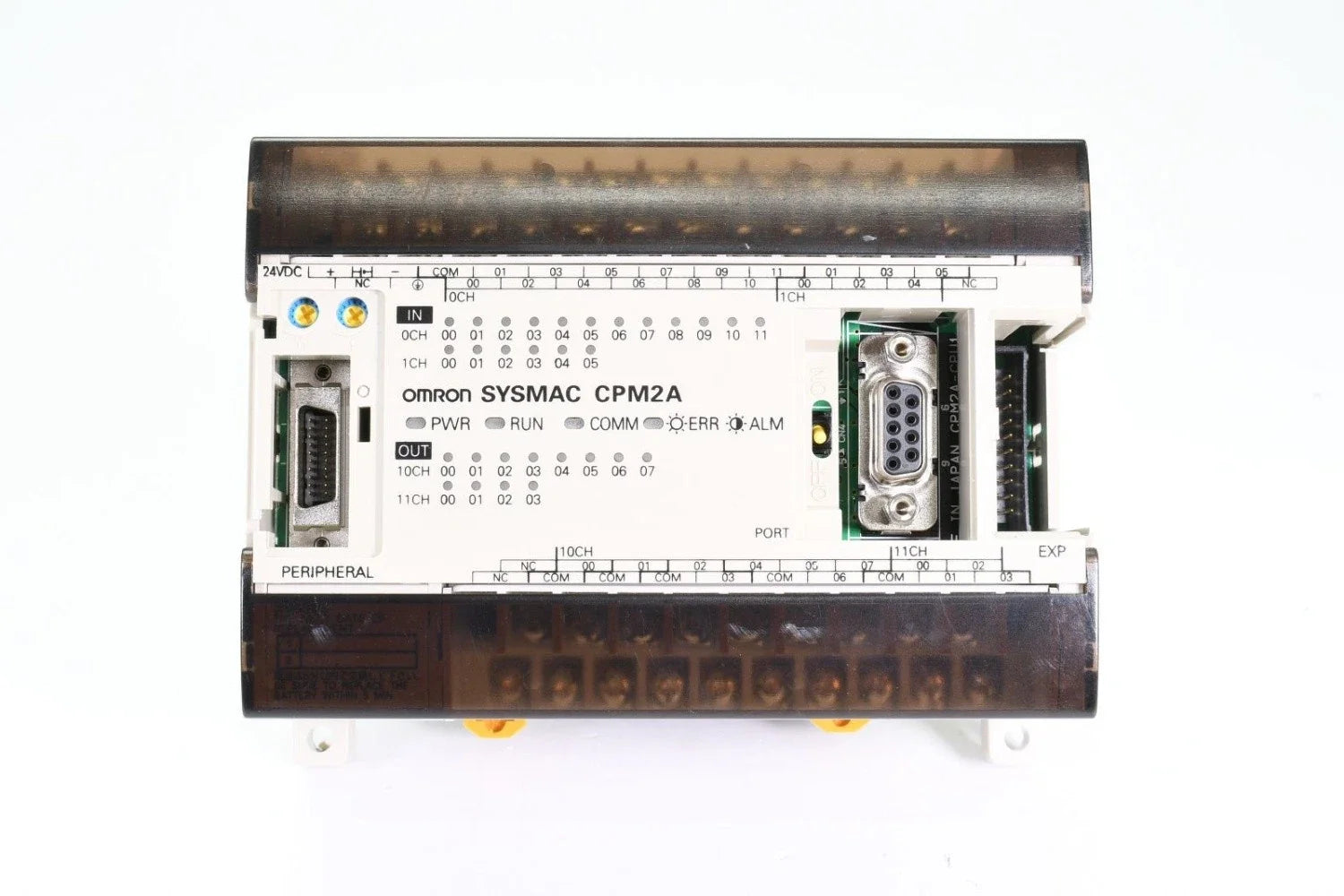

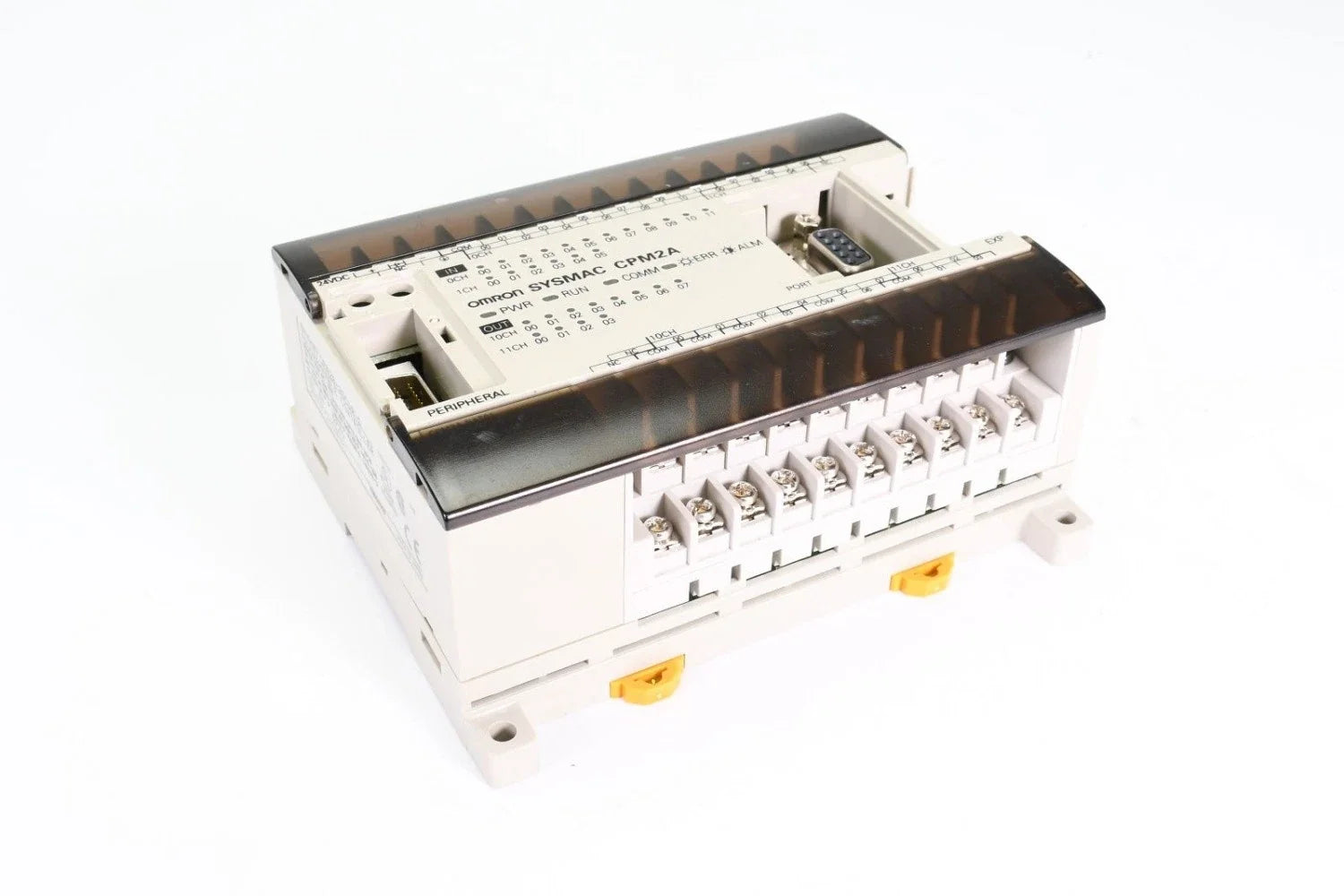

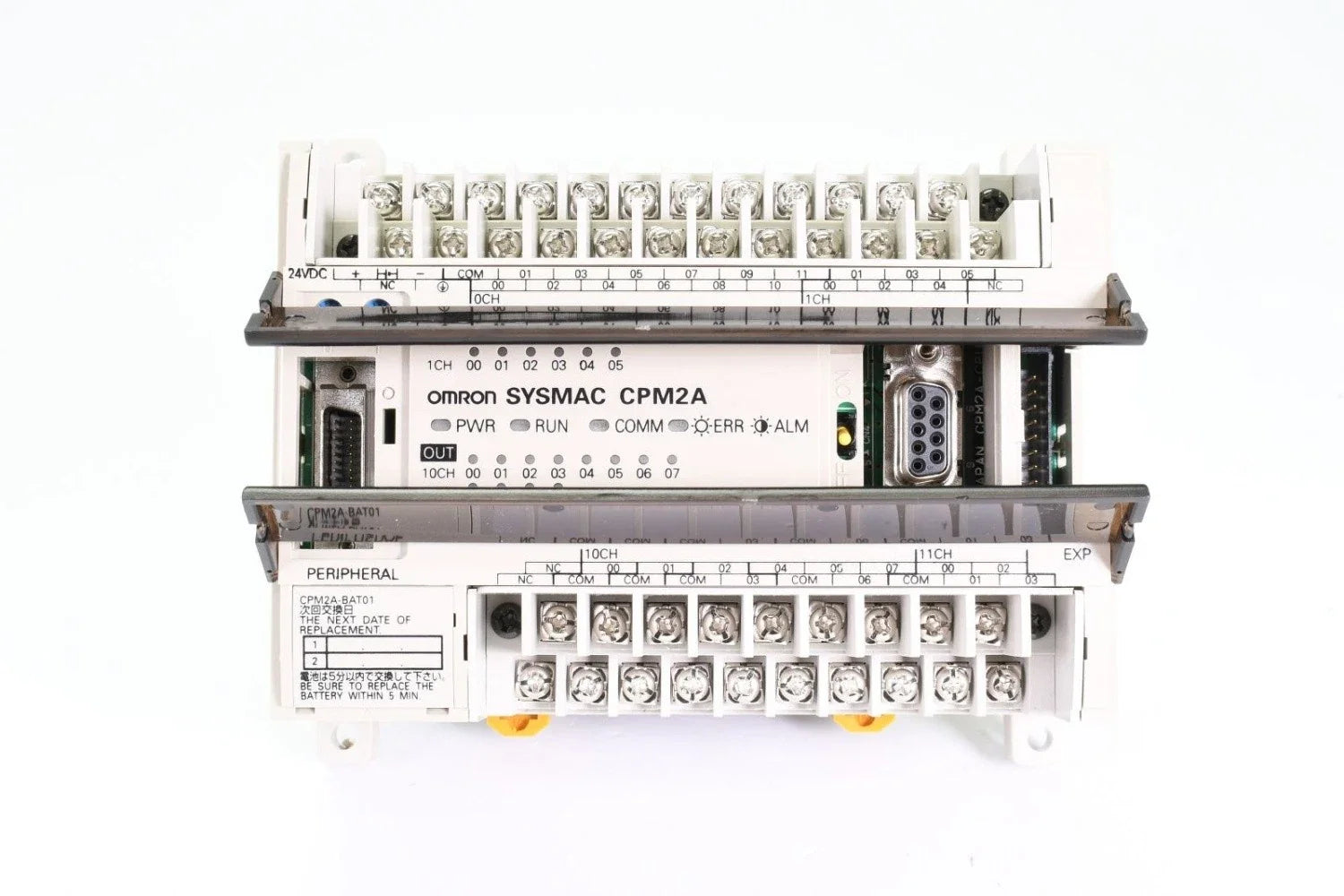

The Omron CPM2A-30CDR-D is a compact programmable logic controller designed for basic machine control and sequencing applications. It operates on a 24 VDC supply and provides integrated digital I/O with relay outputs for direct device control. This PLC is suitable for small automation systems requiring reliable standalone operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Automation Control Modules |
| Part Number |
CPM2A-30CDR-D |
| Subcategory |
Programmable Logic Controllers |
| Supply Voltage |
24 VDC |
| Digital Inputs |
18 |
| Digital Outputs |
12 (Relay) |
| Total I/O Points |
30 |
| Program Memory |
2K words |
| Communication Interface |
RS-232C |
| Expandable Modules |
Up to 3 |
| Mounting Type |

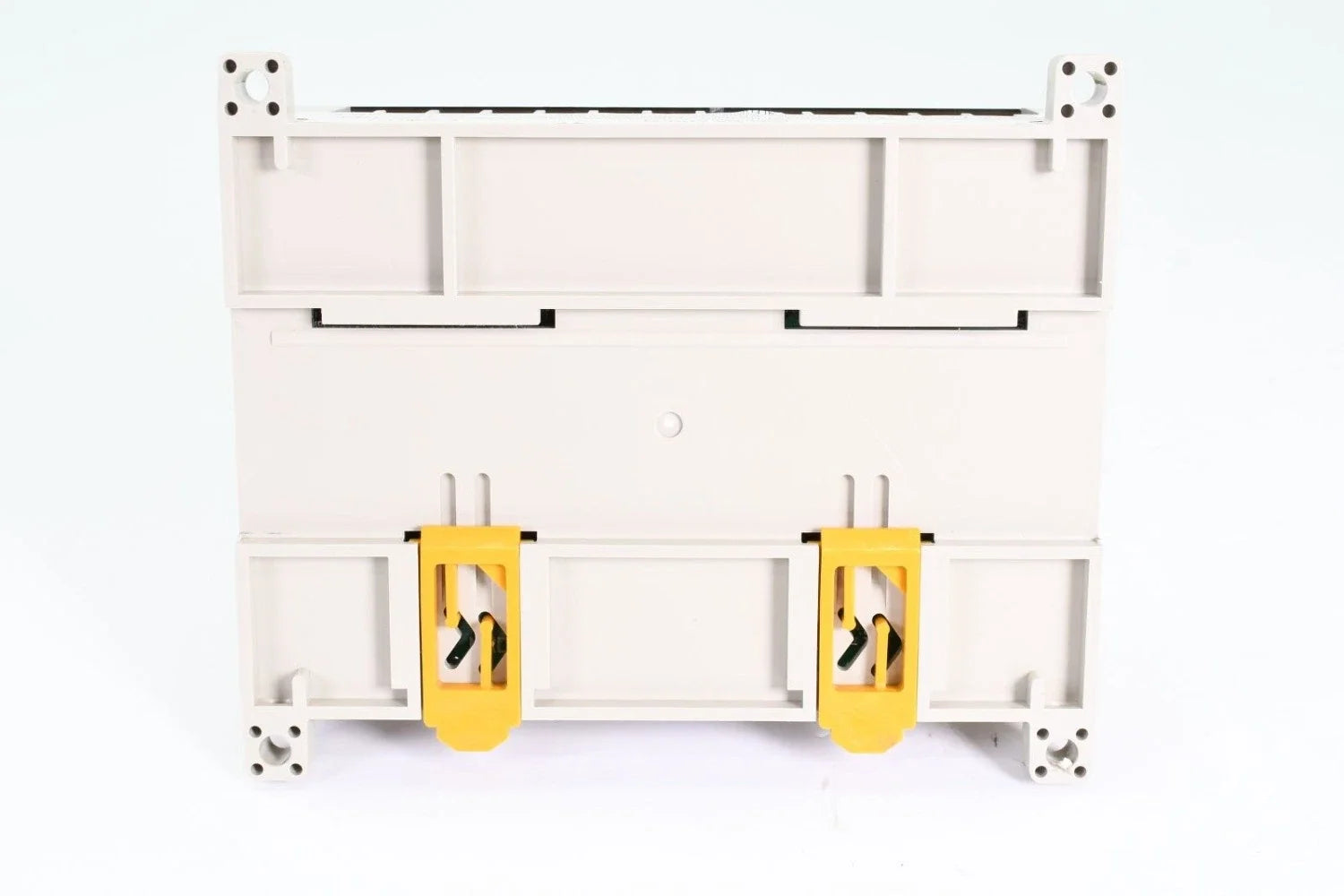

DIN Rail / Chassis Mount |
| Operating Temperature Range |
0°C to 55°C |
| Approval Standards |
CE, CSA, UL |
| Weight |
1.32 lbs |
Information About CPM2A-30CDR-D
The CPM2A-30CDR-D is part of Omron’s CPM2A series, developed as a space-efficient PLC solution for entry-level and mid-range automation tasks. It integrates CPU, power supply, and I/O into a single housing to reduce panel complexity. The controller supports expansion modules and RS-232C communication for programming and basic data exchange. Its relay output design allows direct switching of external loads without additional interface hardware.
Key Features:
-
All-in-One PLC Design: Combines CPU, power supply, and I/O in a single compact unit.
-
Digital I/O Configuration: Includes 18 digital inputs and 12 relay outputs.
-
Relay Output Type: Enables direct control of external loads and actuators.
-
24 VDC Power Supply: Designed for standard industrial control power systems.
-
RS-232C Communication: Supports programming and basic serial communication.
-
Expandable System: Allows connection of up to 3 expansion modules.
-
Battery-Backed Memory: Retains program and data during power interruptions.
The CPM2A-30CDR-D delivers the reliability and precision required for compact PLC-based control systems in industrial automation.
