Description

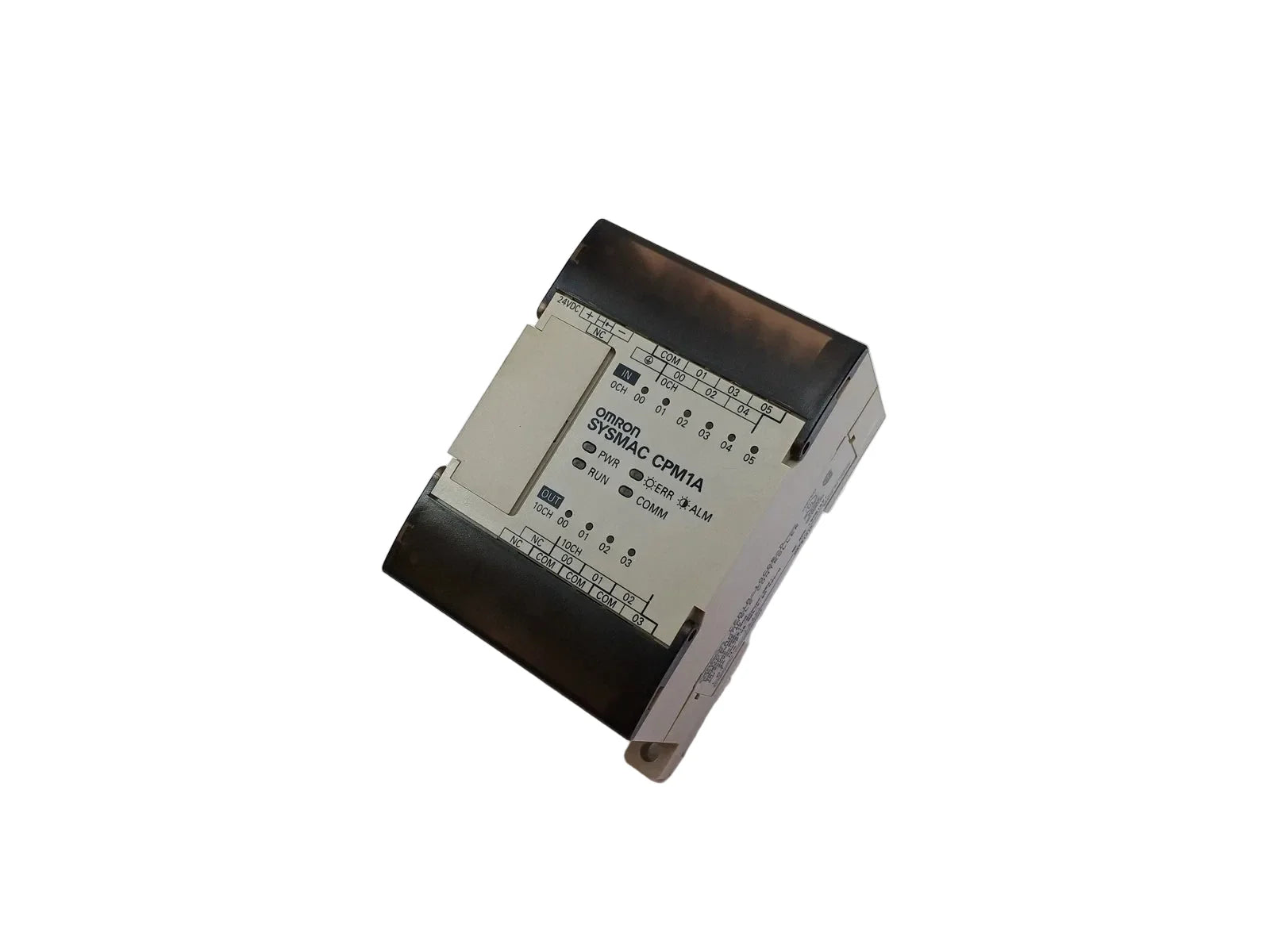

The Omron CPM1A-10CDR-D is a compact micro programmable controller designed for small-scale automation systems. It operates on a 24 VDC power supply and provides 6 digital inputs and 4 relay outputs. The unit supports RS-232C communication and offers 1K word program capacity for discrete control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CPM1A-10CDR-D |
| Subcategory |
PLC Module/Rack |
| Series |
CPM1A |
| Product Type |
Micro Programmable Controller |
| Total I/O Points |
10 |
| Number of Inputs |
6 Digital |
| Number of Outputs |
4 Relay |
| Input Voltage |
24 VDC |
| Supply Voltage |
24 VDC |
| Program Capacity |
1K Words |
| Communication |
RS-232C |
| Mounting Type |
DIN Rail / Chassis Mount |
| Operating Temperature |
0°C to 55°C |
| Dimensions (H × W × D) |
90 mm × 66 mm × 50 mm |
| Weight |
0.99 lbs |
Information About CPM1A-10CDR-D
The CPM1A-10CDR-D belongs to the Omron CPM1A series of compact PLCs intended for machine-level automation. It integrates six 24 VDC digital inputs and four relay outputs within a non-expandable housing. The controller includes RS-232C communication capability for programming and device connectivity and supports up to 1K words of program memory. Designed for DIN rail or chassis mounting, it operates within a temperature range of 0°C to 55°C for industrial environments.
Key Features:
-
6 Digital Inputs: 24 VDC input channels for sensor interfacing.
-
4 Relay Outputs: Mechanical relay outputs for AC or DC load control.
-
24 VDC Power Supply: Dedicated DC-powered operation.
-
1K Word Program Capacity: Supports structured control logic.
-
RS-232C Communication Port: Enables programming and serial device integration.
-
Non-Expandable Design: Self-contained PLC unit.
-

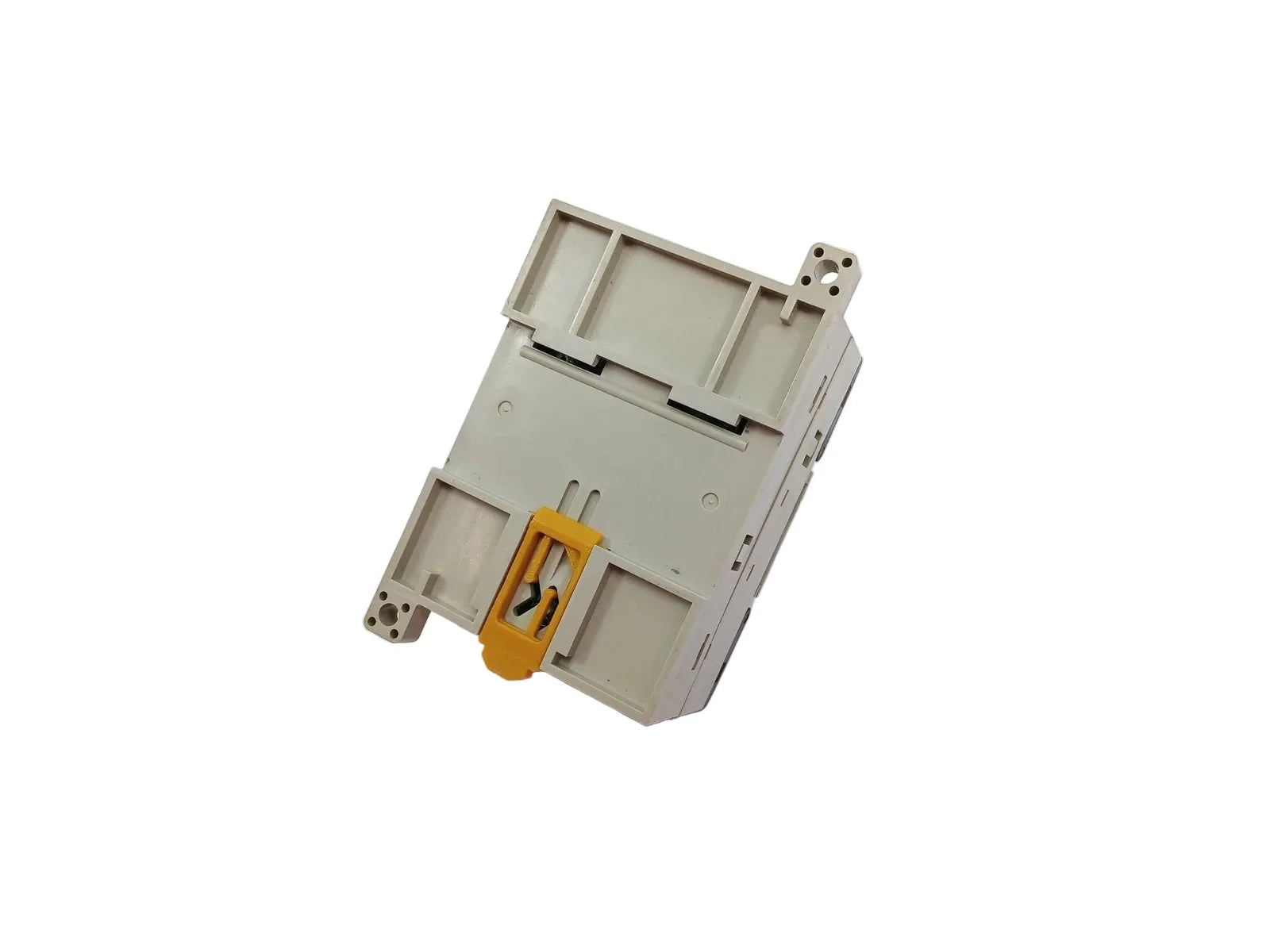

DIN Rail or Chassis Mount: Flexible installation options.
-
CPM1A Series Platform: Compact solution for discrete automation tasks.
The CPM1A-10CDR-D delivers the reliability and precision required for compact programmable control in small industrial automation systems.
