Description

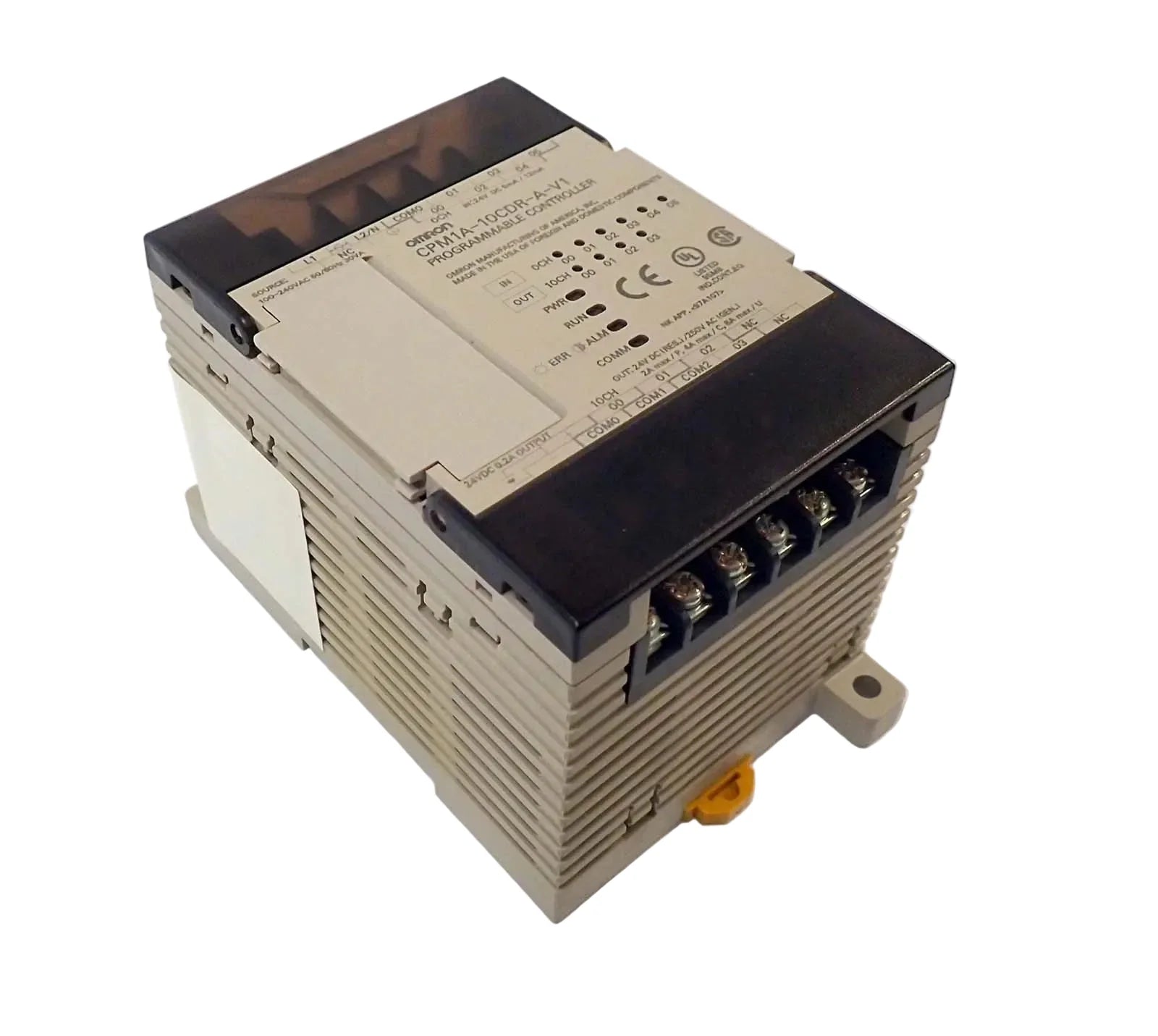

The Omron CPM1A-10CDR-A-V1 is a compact PLC CPU unit designed for small-scale control applications within the CPM1A Series. It operates on a 100–240 VAC power supply and provides 6 digital inputs and 4 relay outputs for discrete automation tasks. With integrated RS-232C communication and 1K words of memory, this controller supports reliable machine and process control functions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
CPM1A-10CDR-A-V1 |
| Subcategory |
PLC Controllers |
| Product Line |
CPM1A Series |
| Product Type |
Programmable Relay - CPU Unit |
| Number of Inputs |
6 Digital Inputs |
| Number of Outputs |
4 Relay Outputs |
| Output Type |
Relay |
| Supply Voltage |
100–240 VAC |
| Memory Size |
1K Words |
| Communication Port |
RS-232C |
| Mounting Type |
DIN Rail or Chassis Mount |
| Operating Temperature |
0°C to 55°C |
| Humidity Range |
10% to 90% (Non-condensing) |
| Dimensions |
90 mm x 70 mm x 66 mm |
| Compliance |
CE, CSA, Lloyd, NK, UL |
| Weight |
0.50 lbs (0.23 kg) |
Information About CPM1A-10CDR-A-V1
The CPM1A-10CDR-A-V1 is a programmable relay-style PLC controller developed for compact industrial automation systems. It features a non-expandable architecture with built-in I/O, making it suitable for standalone applications requiring straightforward logic control. The unit includes an RS-232C communication port for programming and serial device connectivity and is compatible with Omron CX-One software. Designed for DIN rail or chassis mounting, it operates within a temperature range of 0°C to 55°C and complies with CE, CSA, Lloyd, NK, and UL standards.
Key Features:
- 6 Digital Inputs: Supports discrete signal monitoring for basic automation functions.
- 4 Relay Outputs: Enables switching of AC loads through integrated relay contacts.
- 100–240 VAC Power Supply: Wide-range AC input for industrial compatibility.
- 1K Words Memory Capacity: Provides program storage for compact control logic.
- RS-232C Communication Port: Allows direct connection to programming tools and serial devices.
- Non-Expandable Design: Self-contained controller with built-in I/O configuration.
- DIN Rail or Chassis Mount: Flexible installation options for control panels.
- Certified Compliance: Meets CE, CSA, Lloyd, NK, and UL approval standards.
The CPM1A-10CDR-A-V1 delivers the reliability and precision required for compact PLC-based control in small industrial automation systems.
