Description

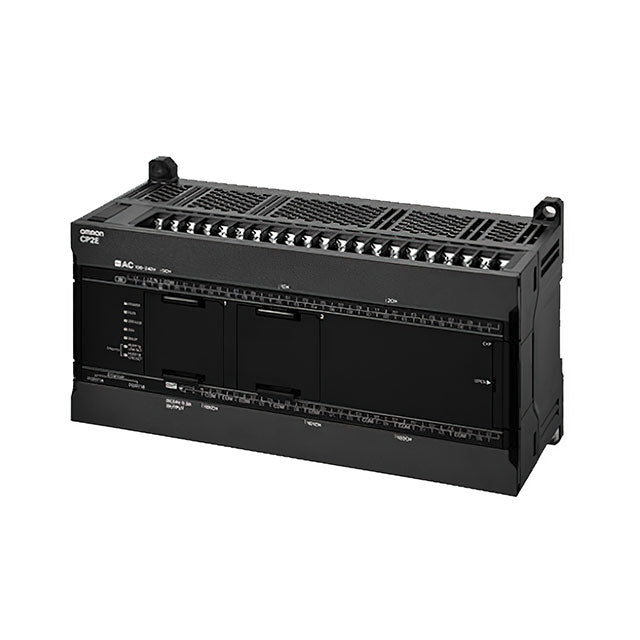

The Omron CP2E-N60DR-D is a compact programmable logic controller designed for control of medium-scale automation systems. It provides a combination of digital relay outputs, high-speed processing, and dual Ethernet connectivity. This PLC is suitable for machine control, data handling, and networked industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Programmable Logic Controllers |
| Part Number |
CP2E-N60DR-D |
| Subcategory |
Brick PLC |
| Series |
CP2E |
| Supply Voltage Type |
24 VDC |
| Digital Inputs |
36 |
| Digital Input Type |
PNP / NPN |
| Digital Outputs |
24 |
| Output Type |
Relay |
| Program Capacity |
20 K steps |
| Data Memory Capacity |
16 K words |
| Logic Execution Time |
0.23 µs |
| Communication Protocol |
Ethernet TCP/IP |
| Ethernet Ports |
2 |
| Encoder Input Channels |
6 |
| Max Encoder Frequency |
100 kHz |
| Max Expansion Units |
3 |
| Operating Temperature Range |
-20 to 60 °C |
| Weight |
805 g |
Information About CP2E-N60DR-D
The CP2E-N60DR-D is part of the Omron CP2E series, developed as an advanced replacement for earlier compact PLC platforms. It integrates digital I/O, Ethernet communication, and expandable architecture within a single brick-style housing. The controller supports PNP and NPN input types, enabling compatibility with a wide range of sensors and field devices. Its design supports reliable operation in demanding industrial environments with extended temperature tolerance.
Key Features:
-
Compact Brick PLC Design: Integrates CPU, I/O, and networking in one unit.
-
Dual Ethernet Ports: Enables Ethernet TCP/IP communication and network redundancy.
-
High-Speed Processing: Logic execution time of 0.23 µs for fast control response.
-
Flexible Digital I/O: Supports 36 digital inputs and 24 relay outputs.
-
Encoder Input Capability: Handles up to 6 encoder channels at 100 kHz.
-
Expandable Architecture: Supports up to 3 expansion units and 180 local I/O points.
-
Battery-Free Backup: Retains memory without the need for a backup battery.
The CP2E-N60DR-D delivers the reliability and precision required for compact PLC-based machine control systems.
