Description

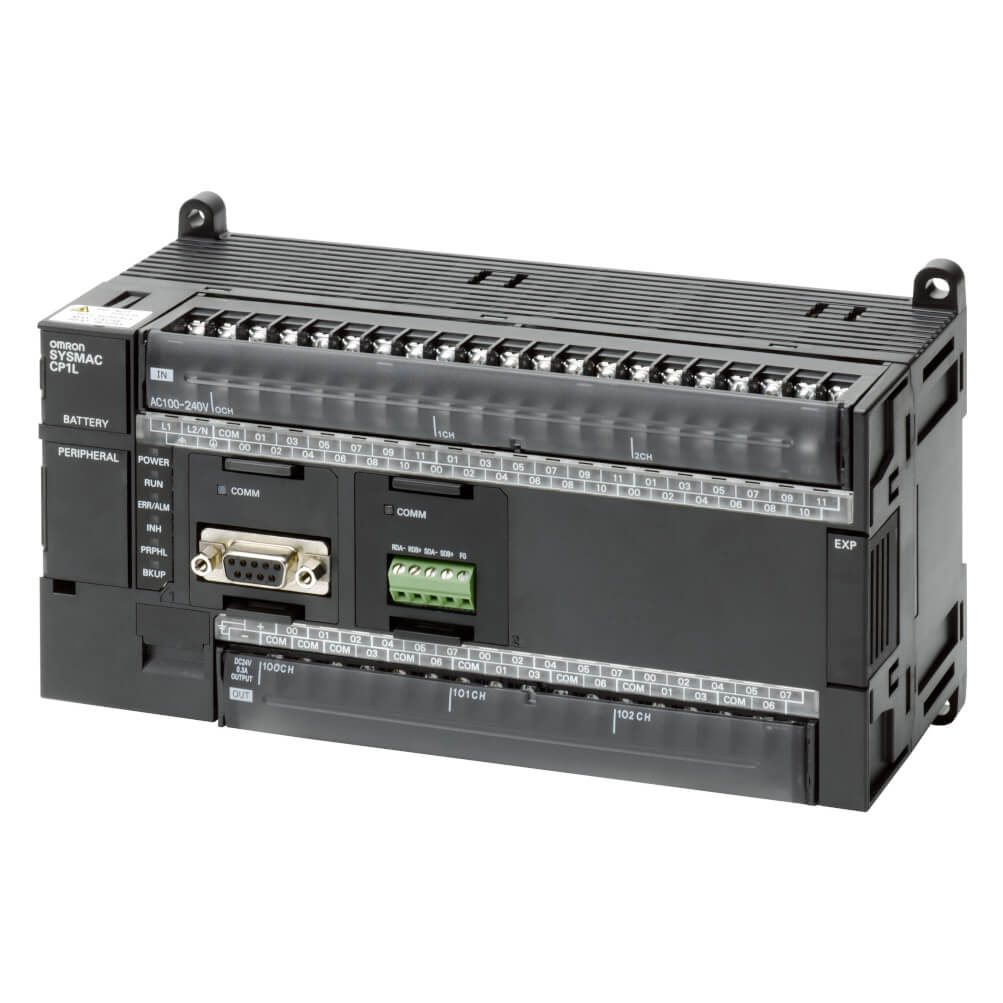

The Omron CP1L-M60DR-D is a compact programmable controller designed to deliver reliable logic control for small to mid-scale industrial automation systems. It features integrated digital inputs and relay outputs powered by a 24 VDC supply, enabling direct control of field devices. This PLC is commonly used in machinery, conveyors, and standalone automation applications requiring dependable performance and compact design.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CP1L-M60DR-D |
| Subcategory |
PLC Module/Rack |
| Product Type |
Programmable controller |
| PLC Series |
CP1L |
| Supply Voltage |
24 VDC |
| Digital Inputs |
36 × 24 VDC inputs |
| Digital Outputs |
24 × relay outputs |
| Output Rating |
2 A per relay |
| Program Capacity |
10K steps |
| Data Memory |
32K words |
| Reference Code |
(668676) |
| Application |
Machine and process control |
| Weight |
2.20 lbs |
Information About CP1L-M60DR-D
The CP1L-M60DR-D is part of Omron’s CP1L series, engineered to provide cost-effective and space-saving PLC solutions. It is built with an all-in-one architecture that integrates CPU, power supply, and I/O into a single unit for simplified installation. The controller supports structured ladder programming with ample program and data memory for typical machine control tasks. Its design ensures compatibility with Omron CP-series expansion and communication options for flexible system integration.
Key Features:
- Compact PLC Controller: Combines CPU, power supply, and I/O in a single housing.
- Integrated Digital Inputs: Provides 36 inputs operating at 24 VDC for sensor and signal monitoring.
- Relay Output Configuration: Includes 24 relay outputs rated at 2 A for flexible load control.
- 24 VDC Power Supply: Designed for standard industrial DC control environments.
- Program Memory Capacity: Supports up to 10K steps for control logic execution.
- Expanded Data Memory: Provides 32K words for data handling and process values.
- CP1L Series Compatibility: Supports Omron CP-series expansion and communication modules.
The CP1L-M60DR-D delivers the reliability and precision required for compact PLC control in industrial automation systems.
