Description

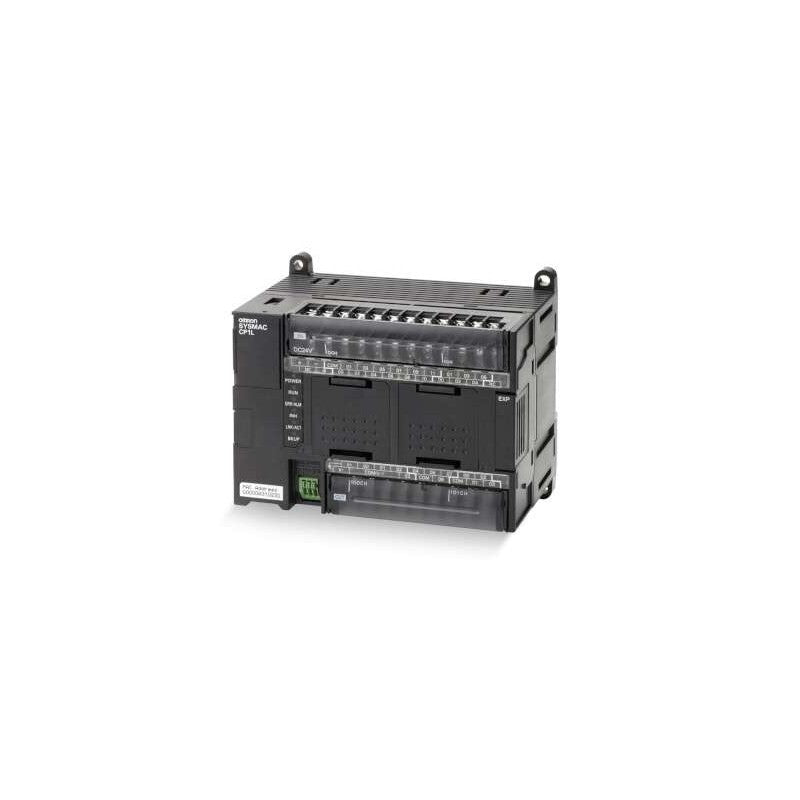

The Omron CP1L-EL20DT-D is a compact programmable controller designed for reliable logic control in small-scale industrial automation systems. It operates on a 24 VDC power supply and provides integrated digital I/O with high-speed processing performance. This PLC is suited for applications requiring efficient control, low power consumption, and stable operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLC Controllers |
| Part Number |
CP1L-EL20DT-D |
| Subcategory |
Compact PLCs |
| Series |
CP1L Series |
| Product Type |
Programmable Controller |
| Supply Voltage |
24 VDC |
| Operating Voltage Range |
20.4–26.4 VDC |
| Power Consumption |
13 W Max |
| Digital Inputs |
12 |
| Digital Outputs |
8 |
| Output Type |
Transistor (Sinking) |
| Total I/O Points |
20 |
| Control Method |
Stored Program Method |
| I/O Control Method |
Cyclic Scan with Immediate Refreshing |
| Program Language |
Ladder Diagram |
| Common Processing Time |
0.4 ms |
| Inrush Current |
30 A Max (20 ms) |
| Ambient Operating Temperature |
0°C to 55°C |
| Ambient Humidity |
10% to 90% (Non-Condensing) |
| Operating Environment |
No Corrosive Gas |
| Mounting Type |
DIN Rail / Panel Mount |
| Standards |
CE, UC1, N, L |
| Weight |
1.00 lbs (0.45 kg) |
Information About CP1L-EL20DT-D
The CP1L-EL20DT-D is part of Omron’s CP1L series, a family of compact PLCs engineered for cost-effective and space-saving automation solutions. It features built-in digital inputs and sinking transistor outputs, making it compatible with a wide range of sensors and actuators. The controller uses a stored program method with cyclic scan processing and supports ladder diagram programming. Designed for use in non-corrosive industrial environments, it delivers dependable performance across standard operating temperature and humidity ranges.
Key Features:
- Compact CP1L Series PLC: Designed for space-efficient industrial control applications.
- Integrated Digital I/O: Provides 12 digital inputs and 8 sinking transistor outputs.
- 24 VDC Power Operation: Suitable for low-voltage industrial control systems.
- High-Speed Processing: Achieves a common processing time of 0.4 ms.
- Low Power Consumption: Operates with a maximum power usage of 13 W.
- Ladder Diagram Programming: Supports standard PLC programming methods.
- Industrial Operating Range: Designed for stable operation from 0°C to 55°C.
The CP1L-EL20DT-D delivers the reliability and precision required for compact PLC control in industrial automation environments.
