Description

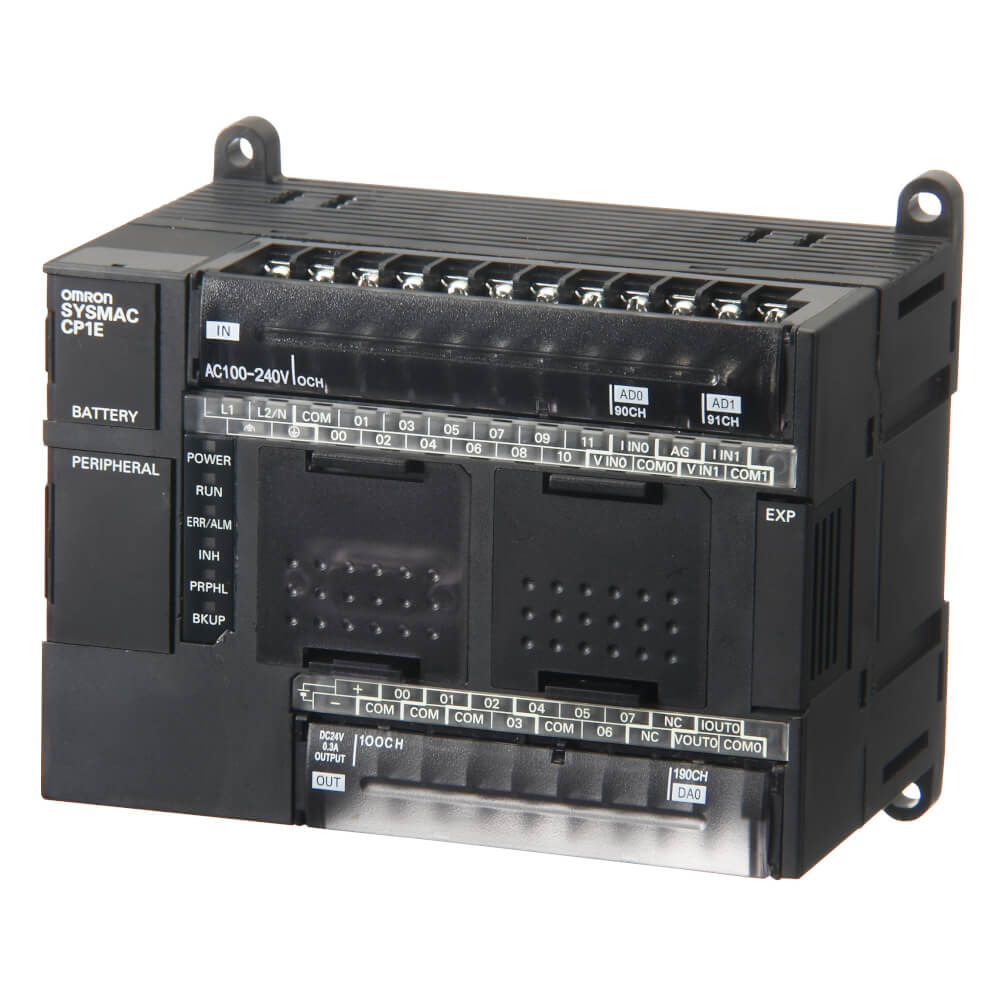

The Omron CP1E-NA20DT1-D is a compact programmable logic controller designed for DC-powered industrial automation systems requiring integrated digital I/O and serial communication. The CP1E-NA20DT1-D provides 12 digital inputs and 8 transistor PNP outputs for reliable control of sensors, actuators, and machine processes. It is intended for small to mid-scale PLC applications where fast execution and expansion flexibility are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
CP1E-NA20DT1-D |
| Subcategory |
Programmable Logic Controllers |
| Supply Voltage Type |
DC |
| Digital Inputs |
12 |
| Input Type |
PNP/NPN |
| Digital Outputs |
8 |
| Output Type |
PNP Transistor |
| Program Capacity |
8 K Steps |
| Data Memory Capacity |
8 K Words |
| Logic Execution Time |
1.19 µs |
| USB Ports |
1 |
| RS-232 Ports |
1 |
| Ethernet Ports |
0 (optional via expansion) |
| Max Encoder Input Frequency |
100 kHz |
| Max Pulse Output Frequency |
100 kHz |
| Max PTP Axes |
2 |
| Max Local I/O Points |
140 |
| Max Expansion Units |
3 |
| Operating Temperature Range |
0 to 55 °C |
| Dimensions (H × W × D) |
90 mm × 130 mm × 85 mm |
| Weight |
550 g |
Information About CP1E-NA20DT1-D
The CP1E-NA20DT1-D is a CPU unit from Omron’s CP1E series, engineered for compact machine control and automation panel installations. It operates on a DC supply and supports both PNP and NPN input wiring to accommodate common industrial input devices. The unit includes built-in USB and RS-232C communication ports, with support for optional Ethernet and serial expansion modules when additional connectivity is needed. It also provides high-speed pulse outputs, encoder input support, and expandable I/O architecture for scalable automation control designs.
Key Features:
-
Compact CP1E PLC CPU Unit: Designed for DC-powered machine automation and control panel installations.
-
12 Digital Inputs: Supports 12 DC inputs with PNP/NPN compatibility for flexible sensor integration.
-
8 Transistor Outputs: Provides 8 PNP digital outputs for fast switching of industrial loads.
-
Built-In Communication Ports: Includes USB and RS-232C connectivity for programming and device communication.
-
Fast Logic Execution Speed: Executes logic instructions at approximately 1.19 µs for responsive control.
-
High-Speed Motion Support: Handles encoder inputs and pulse outputs up to 100 kHz for motion-related control.
-
Expandable System Capacity: Supports up to 140 local I/O points and up to 3 expansion units.
-
Analog and Network Options: Compatible with optional analog boards and Ethernet/serial communication modules.
The CP1E-NA20DT1-D delivers the reliability and precision required for compact PLC-based machine automation and expandable industrial control systems.
