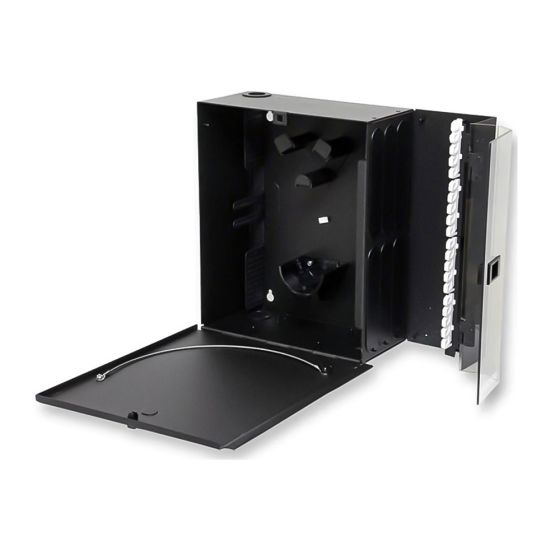

Wall Mount Fiber Connector Housing – Black
Holds (6) CCH Adapter Panels / Cassettes

This wall-mount fiber connector housing is designed for high-density interconnect and cross-connect applications in enterprise network environments. It supports a wide range of fiber termination and connectivity options using standard CCH connector panels, cassettes, or modules, making it suitable for main cross-connects, telecommunications rooms, and other indoor locations where space efficiency and organization are critical.

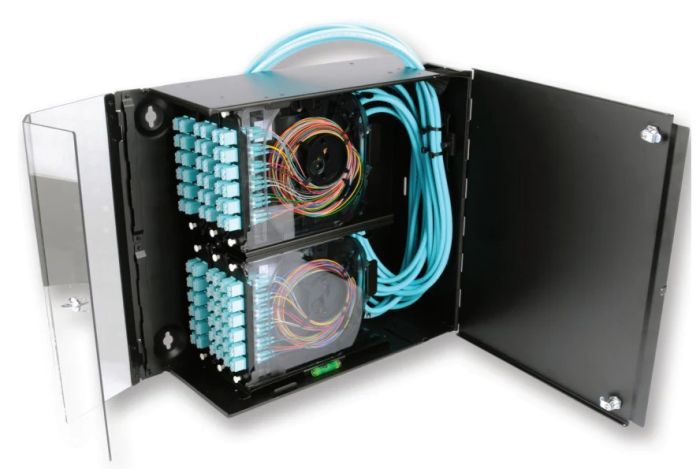

The enclosure features a rugged metal housing with segregated routing paths for cable and fiber slack to improve fiber protection and simplify management. A lockable, transparent jumper-side door provides clear visibility during installation, testing, and troubleshooting while maintaining security. Removable strain-relief brackets, integrated routing clips, and guides support clean cable routing and efficient moves, adds, and changes. A preinstalled bubble level and recessed mounting points allow fast, accurate wall mounting.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds (6) CCH connector panels, cassettes, or modules (not included)

  • Maximum fiber capacity: up to 144 fibers (depending on configuration)

• Construction:

  • Material: Metal housing

  • Color: Black

• Design Features:

  • Interconnect and cross-connect capability

  • Lockable, transparent jumper-side door

  • Removable strain-relief brackets

  • Segregated cable and fiber slack routing

  • Integrated routing clips and guides

  • Preinstalled bubble level for accurate installation

  • Recessed wall-mounting holes

  • Field-installable lock kits available for cable entry and jumper doors

• Mounting:

  • Wall-mountable enclosure

  • Accepts standard CCH panels, cassettes, and modules

• Dimensions:

  • 14.1" H × 16.1" W × 5.7" D

• Application:

  • Enterprise networks

  • Telecommunications rooms and wiring closets

• Notes:

  • Adapter panels, cassettes, and modules sold separately
