Description

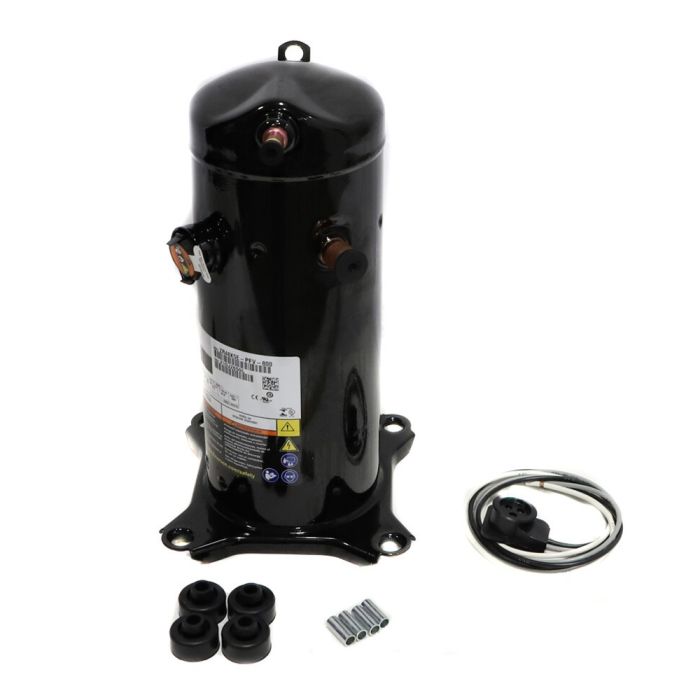

The Copeland ZR48K5E-PFV-800 is a hermetic scroll compressor designed for residential and light commercial HVAC air-conditioning systems requiring reliable mid-to-high cooling capacity. Delivering approximately 48,200 BTU/hr, this compressor operates on 208–230V single-phase power and is engineered for systems using R407C or R22 refrigerant. Its scroll compression technology provides efficient, low-vibration operation and dependable performance in condenser units and refrigeration circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Copeland |
| Category |
HVAC Components |
| Part Number |
ZR48K5E-PFV-800 |
| Subcategory |
Scroll Compressors |
| Compressor Type |
Scroll |
| Application |
HVAC / Air Conditioning |
| Cooling Capacity |
48,200 BTU/hr |
| Capacity Range |
46,200 – 61,900 BTU |
| Refrigerant Compatibility |
R407C, R22 |
| Voltage |
208 / 230 V |
| Phase |
Single Phase |
| Frequency |
60 Hz |
| Cooling Efficiency |
Up to 10.85 EER |
| Rated Load Current |
24.3 A |
| Maximum Continuous Current |
34.0 A |
| Locked Rotor Current |
137 A |
| Run Capacitor |
60 µF / 440 V |
| Start Capacitor |
88–106 µF / 330 V |
| Start Capacitor Part Number |
43-17075-04 |
| Start Relay Part Number |
42-25105-01 |
| Start Kit |
SK-A1 |
| Kick Start |
42-KS1 |
| Refrigerant Oil |
POE (85-32 CST) |
| Suction Line Size |
7/8 in |
| Discharge Line Size |
1/2 in |
| Overall Compressor Height |
16-7/16 in |
| Mounting Base Dimensions |
7-1/2 x 7-1/2 in |
| Length |
9.69 in |
| Crankcase Heater |
Not Included |
| Weight |
65 lb (approx.) |
Information About ZR48K5E-PFV-800
The ZR48K5E-PFV-800 is part of Copeland’s ZR series of scroll compressors developed for air-conditioning applications requiring efficient compression and long service life. It features a hermetic scroll design that reduces mechanical stress while improving operational stability and energy efficiency. The compressor is designed to operate with 208–230V single-phase electrical supply at 60 Hz, allowing compatibility with common residential and commercial HVAC installations. With support for R407C and R22 refrigerants, the unit serves as a reliable replacement compressor for existing air-conditioning systems and condenser assemblies.
Key Features:
- Advanced Scroll Compression: Uses scroll technology to provide smooth compression, reduced vibration, and increased durability.
- High Cooling Capacity: Delivers approximately 48,200 BTU/hr, suitable for mid-capacity HVAC air-conditioning systems.
- Single-Phase Electrical Operation: Designed for 208–230V single-phase power at 60 Hz, compatible with standard HVAC electrical systems.
- Dual Refrigerant Compatibility: Supports R407C and R22 refrigerants, enabling flexible system integration and replacements.
- Optimized Energy Efficiency: Achieves cooling efficiency ratings of up to 10.85 EER for improved system performance.
- Stub-Out Refrigerant Connections: Suction and discharge lines configured for simplified brazing and installation.
- Robust Electrical Performance: Rated load current of 24.3 A with locked rotor current of 137 A for reliable motor startup.
- Service-Friendly Design: Compatible with standard HVAC start kits, capacitors, and accessories for maintenance and replacement.
The ZR48K5E-PFV-800 delivers the reliability and precision required for consistent cooling performance in residential and light commercial HVAC condenser systems.
