Description

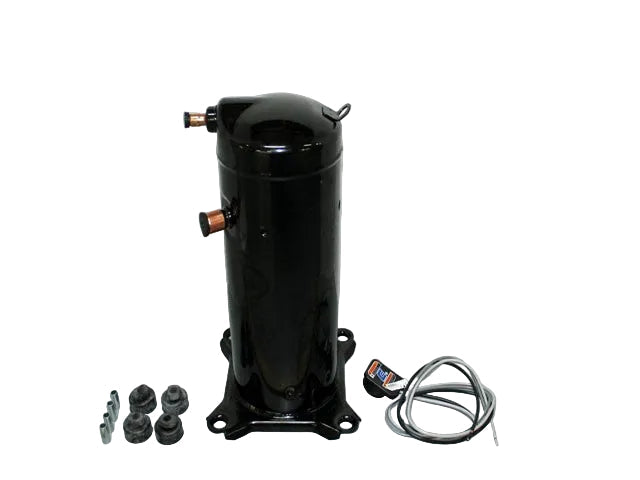

The Copeland ZR36K3-PFV-230 is a 3 HP scroll compressor designed for air conditioning and refrigeration systems operating with R22 or R407C refrigerants. It delivers approximately 38,000 BTU/hr of cooling capacity and operates on 208–230V single-phase power. Built with Copeland scroll compression technology, this compressor provides smooth operation, high efficiency, and dependable performance in residential and light commercial HVAC equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Copeland |
| Category |
HVAC Components |
| Part Number |
ZR36K3-PFV-230 |
| Subcategory |
Scroll Compressors |
| Compressor Type |
Scroll |
| Motor Power |
3 HP |
| Cooling Capacity |
36,900–38,000 BTU/hr |
| Refrigerant Compatibility |
R22, R407C |
| Input Voltage |
208 / 230 V |
| Phase |
1 |
| Frequency |
50 / 60 Hz |
| Rated Current |
Approximately 14.9 A |
| Power Input |
Approx. 3290 W |
| Oil Type |
Mineral Oil (for R22 systems) |
| Application |
Air Conditioning & Refrigeration Systems |
| Weight |
64 lbs |
Information About ZR36K3-PFV-230
The ZR36K3-PFV-230 is part of Copeland’s ZR series scroll compressors engineered for air conditioning and refrigeration applications using R22 and R407C refrigerants. It features a hermetically sealed compressor body with a built-in motor and internal protection to support stable long-term operation in HVAC systems. This model is commonly installed in split air conditioning units, packaged systems, rooftop equipment, and chillers requiring single-phase electrical supply. The scroll compression mechanism reduces moving parts, improving energy efficiency, lowering vibration levels, and providing reliable refrigerant compression compared with traditional reciprocating compressors.
Key Features:
- Scroll Compression Technology: Utilizes interleaving scroll elements to efficiently compress refrigerant with fewer moving parts and lower wear.
- 38,000 BTU/hr Cooling Capacity: Designed to support HVAC systems around 3 tons of cooling capacity.
- Dual Refrigerant Compatibility: Suitable for systems operating with R22 and R407C refrigerants.
- Single-Phase Electrical Operation: Runs on 208–230V, 1-phase, 50/60 Hz electrical supply.
- 3 HP Motor Rating: Provides stable compressor power for continuous cooling operation.
- Hermetic Sealed Construction: Protects internal components and ensures dependable long-term operation.
- Low Noise and Vibration: Scroll design significantly reduces pulsation and mechanical vibration.
- Flexible HVAC Applications: Suitable for split systems, packaged units, rooftop systems, and chillers.
The ZR36K3-PFV-230 delivers the reliability and precision required for residential and commercial HVAC compressor applications.
