Description

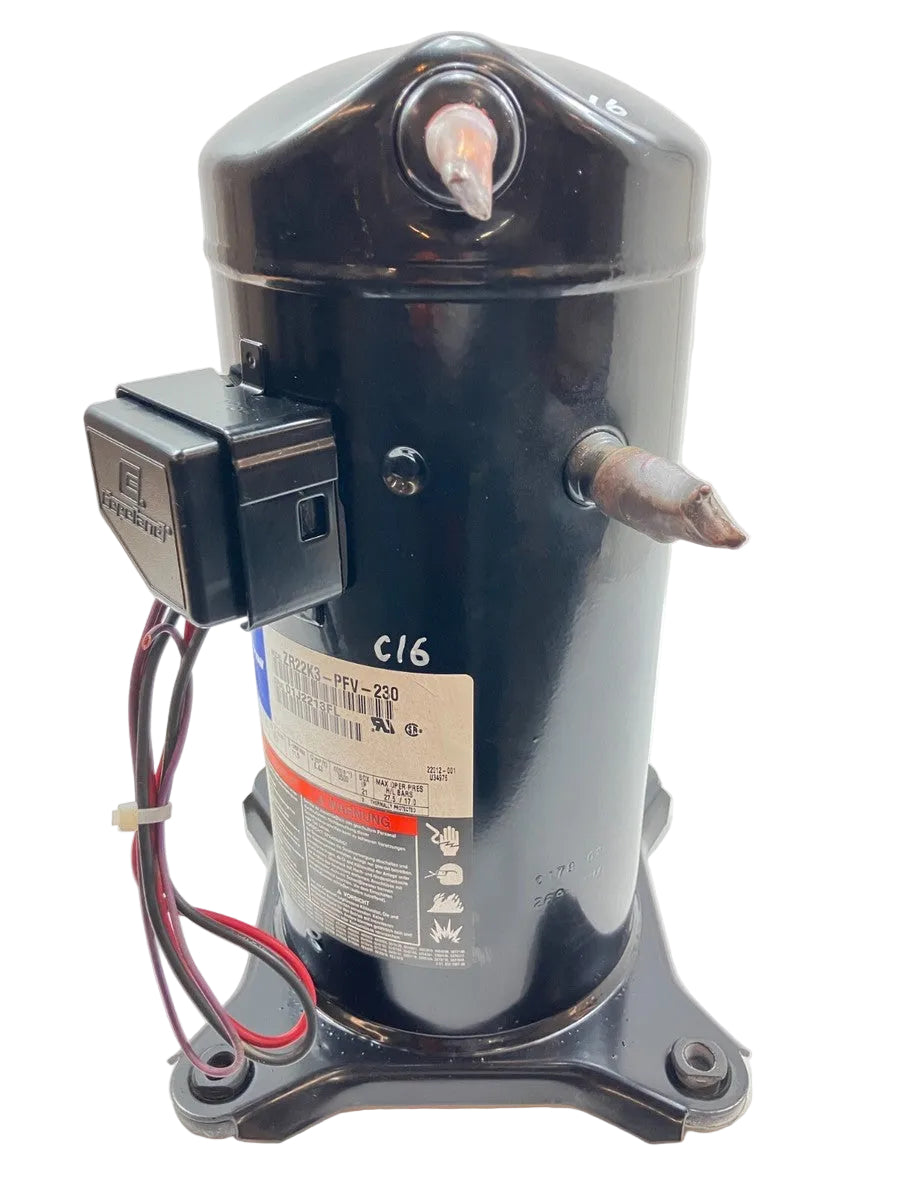

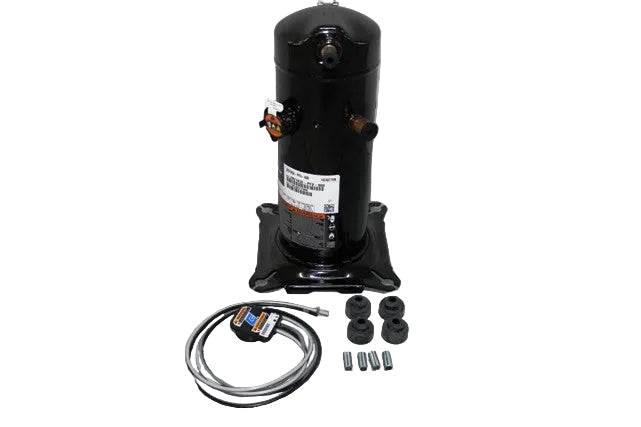

The Copeland ZR22K3-PFV-130 is a 2-ton scroll compressor designed for air conditioning systems operating with R-22 refrigerant. It delivers approximately 21,000 BTU/hr of cooling capacity while operating on 208–230V single-phase power. Engineered with Copeland scroll compression technology, the unit provides smooth, efficient refrigerant compression for residential and light commercial HVAC systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Copeland |
| Category |
HVAC Components |
| Part Number |
ZR22K3-PFV-130 |
| Subcategory |
Scroll Compressors |
| Compressor Type |
Scroll |
| Cooling Capacity |
21,000 BTU/hr |
| Refrigerant |
R-22 |
| Motor Phase |
1 |
| Input Voltage |
208 / 230 V |
| Frequency |
50 / 60 Hz |
| Rated Load Current |
12.0 A |
| Max Continuous Current |
16.8 A |
| Locked Rotor Current |
56.0 A |
| Run Capacitor |
35 µF / 370 V |
| Start Capacitor |
88–106 µF / 330 V |
| Start Kit |
SK-A1 |
| Suction Line Size |
3/4 in |
| Discharge Line Size |
1/2 in |
| Compressor Height |
15-5/16 in |
| Mounting Base Dimensions |
7-1/2 x 7-1/2 in |
| Refrigerant Oil |
Mineral (85-H2301) |
| Weight |
52 lbs |
Information About ZR22K3-PFV-130
The ZR22K3-PFV-130 is part of Copeland’s ZR series scroll compressors developed for dependable performance in air conditioning and refrigeration systems. It features a hermetically sealed design that protects internal components while maintaining consistent compressor operation. This model is commonly used in residential split systems, packaged HVAC units, and other cooling equipment requiring single-phase electrical supply. Its scroll compression mechanism reduces mechanical wear, lowers vibration levels, and improves efficiency compared with conventional reciprocating compressors.
Key Features:
- Scroll Compression Design: Uses precision scroll elements to provide efficient refrigerant compression with fewer moving parts.
- 21,000 BTU Cooling Capacity: Designed for approximately 2-ton air conditioning systems.
- R-22 Refrigerant Compatibility: Suitable for HVAC systems operating with R-22 refrigerant.
- 208–230V Single-Phase Operation: Supports common residential and light commercial electrical systems.
- Integrated Starting Components Compatibility: Supports specified start capacitor, relay, and start kit components for reliable motor startup.
- Hermetic Sealed Construction: Protects internal compressor components from contamination and external conditions.
- Low Noise and Vibration: Scroll mechanism minimizes pulsation and mechanical stress during operation.
- Standard HVAC Line Connections: Includes stub-out suction and discharge line configurations for simplified installation.
The ZR22K3-PFV-130 delivers the reliability and precision required for residential and light commercial air conditioning compressor applications.
