Description

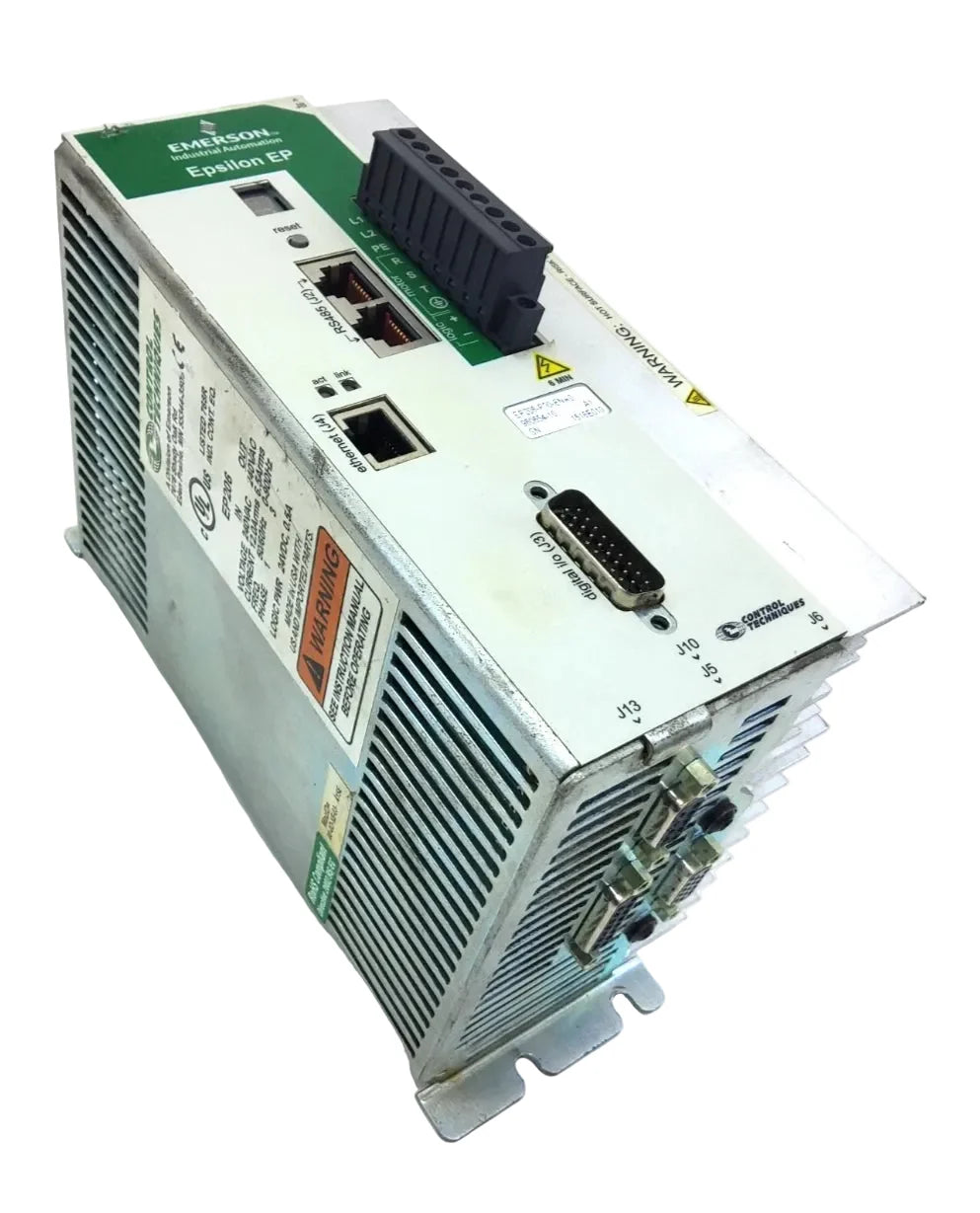

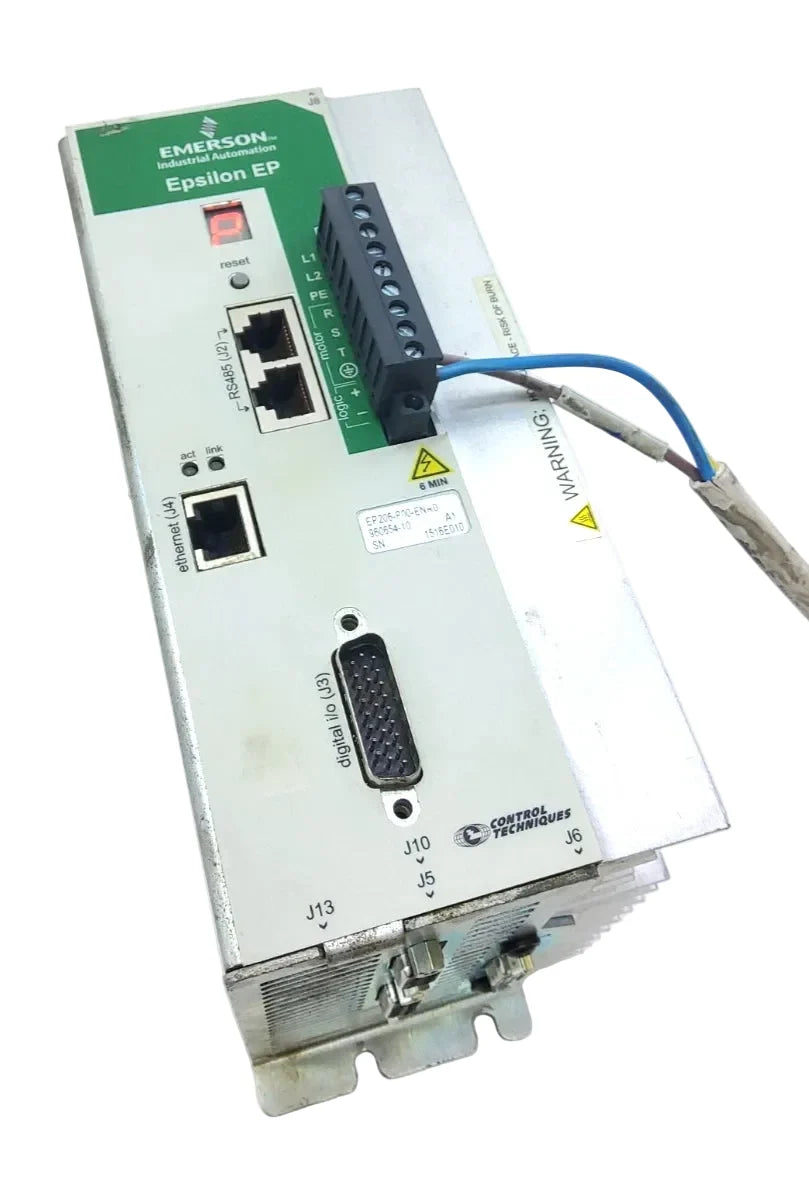

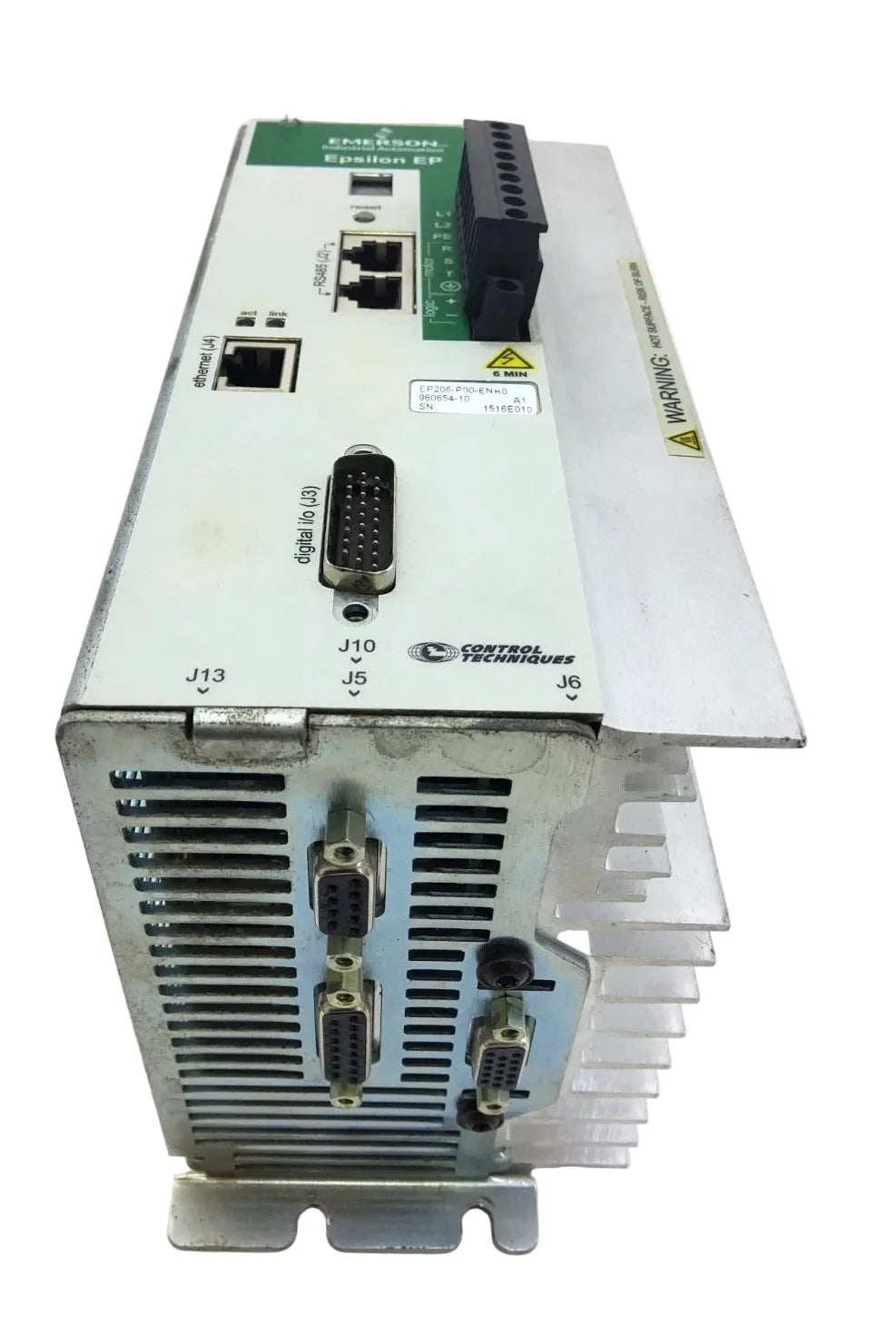

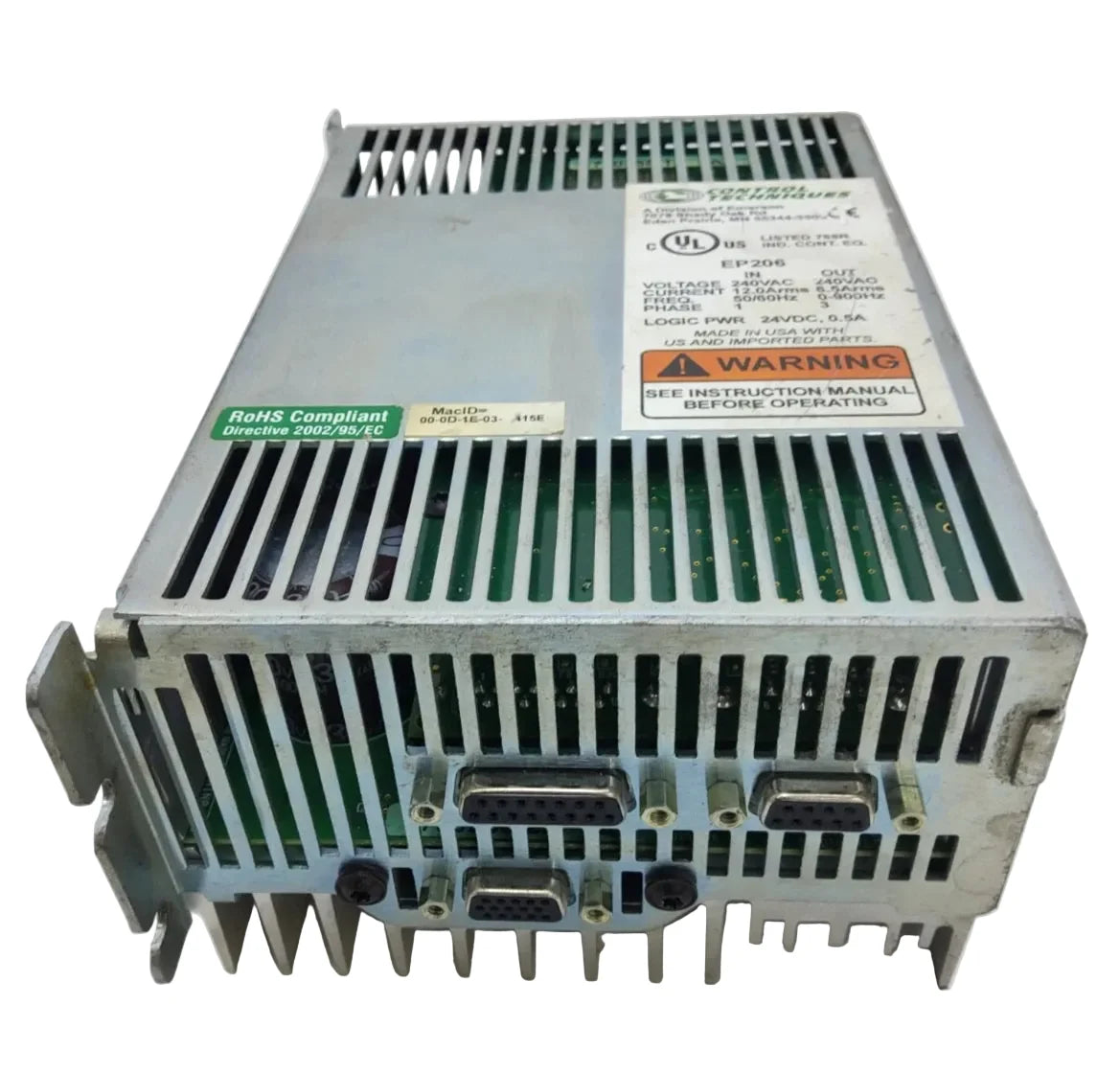

The Control Techniques EP206-P00-ENR0 is a programmable servo drive designed for precise motion control applications operating on a 230 VAC single-phase supply. It delivers 6.5 Arms continuous output current with a 13 Arms peak, making it suitable for dynamic positioning and high-performance automation tasks. This drive integrates encoder feedback to ensure accurate speed and position control in industrial systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Control Techniques |
| Category |
AC Variable Frequency & Servo Drives |
| Part Number |
EP206-P00-ENR0 |
| Subcategory |
Servo Drives |
| Series |
Epsilon EP |
| Input Voltage |
20–264 VAC |
| Input Frequency |
50/60 Hz |
| Input Phases |
1 Phase |
| Continuous Output Current |
6.5 Arms |
| Peak Output Current |
13 Arms |
| Horsepower Rating |
2 HP |
| Feedback Type |
Incremental Encoder |
| Communication Protocols |
Modbus RTU, Modbus TCP/IP, EtherNet/IP |
| Digital Inputs |
16 |
| Digital Outputs |
8 |
| Analog Inputs |
1 |
| Analog Outputs |
2 |
| Mounting Type |
Surface Mount |
| Enclosure Rating |
IP20 |
| Operating Temperature |
-4 to +104 °F |
| Dimensions (H x W x D) |
8.1 x 2.1 x 5.2 in |
| Weight |
4.5 lbs |
Information About EP206-P00-ENR0
The EP206-P00-ENR0 is part of the Epsilon EP series, engineered for compact and efficient servo control in demanding motion environments. It features a robust surface-mount design with IP20 protection, making it suitable for installation in control cabinets. The drive supports incremental encoder feedback and includes onboard communication protocols such as Modbus RTU, EtherNet/IP, and Modbus TCP/IP for seamless system integration. It is commonly used in applications like indexing tables, packaging machinery, and pick-and-place systems where precision and responsiveness are critical.
Key Features:
- High Output Performance: Provides 6.5 Arms continuous and 13 Arms peak current for demanding motion profiles
- Encoder Feedback Integration: Supports incremental encoder input for precise position and speed control
- Wide Input Voltage Range: Operates from 20 to 264 VAC, ensuring flexibility in various power environments
- Advanced Communication Protocols: Built-in Modbus RTU, Modbus TCP/IP, and EtherNet/IP for system connectivity
- Compact Surface Mount Design: Space-saving form factor suitable for control panel installation
- Flexible I/O Configuration: Includes 16 digital inputs, 8 digital outputs, 1 analog input, and 2 analog outputs
- Pulse Train Capability: Supports both pulse train input and output for motion synchronization
- Integrated PI Controller: Enables efficient closed-loop control for stable and accurate operation
The EP206-P00-ENR0 delivers the reliability and precision required for advanced servo motion control in industrial automation systems.
