Description

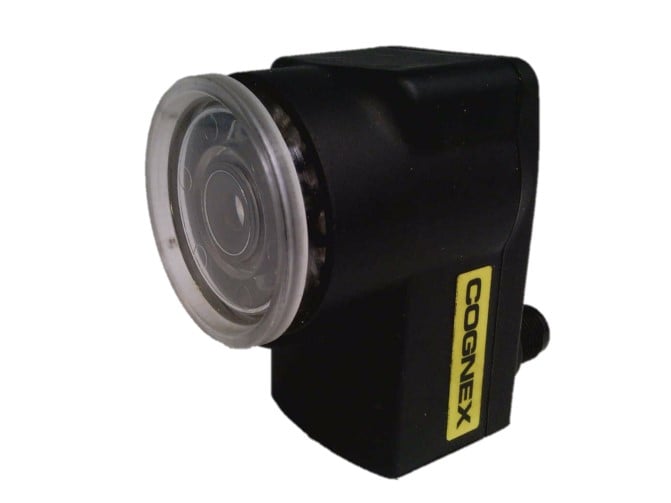

The Cognex 821-0022-2R is a compact machine vision sensor from the Checker 3G1 series, designed for high-speed inspection tasks in industrial automation. It features integrated lighting, variable focus, and built-in I/O capabilities, enabling rapid presence/absence detection and measurement verification at rates up to 6,000 parts per minute.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cognex |
| Category |
|
| Part Number |
821-0022-2R
|
| Subcategory |
CCD Camera |
| Device Type |
Camera |
| Function |
Inspection |
| Series |
Checker 3G1 |
| Output Specification |
Output / 250 mA / 22–26 V |
| Weight |
0.24 lbs |
Information About 821-0022-2R
The Cognex 821-0022-2R is a compact machine vision sensor from the Checker 3G1 series, designed for fast, accurate inspection tasks in automated industrial environments. It integrates lighting, optics, and control into a single rugged unit, enabling reliable detection of part presence, position, or measurement at high production speeds. With simple setup through a teach pendant and built-in I/O, it streamlines deployment in manufacturing lines. Engineered for flexibility and performance, it supports demanding applications where space, speed, and precision are critical.
Key Features:
- Integrated Vision System: Combines sensor, lighting, lens, and processor in a compact IP67-rated housing.
- High-Speed Detection: Capable of inspecting up to 6,000 parts per minute for presence, position, or measurement.
- Adjustable Optics: Features variable focus for adapting to different working distances and part sizes.
- Built-In I/O: Provides onboard inputs and outputs for direct integration with PLCs and control systems.
- SensorView Interface: Supports configuration via SensorView teach pendant for quick, intuitive setup.
- Durable Construction: Sealed against dust and water, suitable for harsh industrial environments.
- Flexible Mounting: Designed for easy installation in tight or moving production line areas.
- Checker Series Compatibility: Fully compatible with Checker 3G software and accessories.
- The 821-0022-2R delivers the compact design, speed, and intelligent functionality required for high-throughput, precision inspection in modern automated manufacturing environments.
