Description

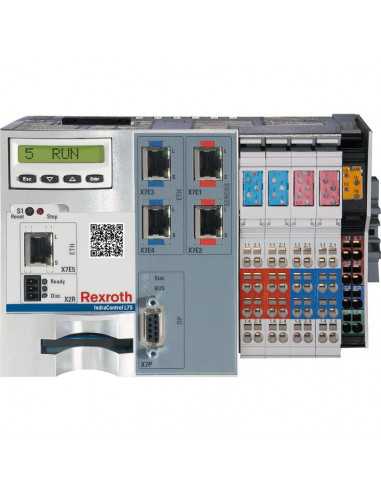

The Bosch Rexroth CML75.1-3P-905-NA-NNNN-NW is a high-performance embedded control unit designed for flexible and scalable automation systems. Featuring an Intel Atom DualCore processor, the controller supports a wide range of industrial applications requiring robust processing and communication. Its integrated digital I/Os and communication interfaces streamline control tasks in centralized or decentralized setups.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Rexroth |
| Category |
|
| Part Number |
CML75.1-3P-905-NA-NNNN-NW |
| Subcategory |
Embedded Controllers |
| Series |
75 Series
|
| Processor |
Intel Atom E3827 DualCore, 1.75 GHz
|
| DRAM |
4 GB
|
| NVRAM |
256 kB (RDS)
|
| Flash Storage |
CompactFlash, 1 GB
|
| Digital Inputs |
8
|
| Digital Outputs |
8 |
| Operating Voltage |
24 VDC (range: 19–30 VDC) |
| Max Current Consumption |
2.9 A |
| Power Consumption |
17 W |
| Communication Interfaces |
SERCOS III, PROFIBUS |
| Display Panel |
1-line, 4 keys |
| Cooling |
Ambient air |
| Protection Rating |
IP20 |
| Shock Resistance |
15g (EN 60068-2-27) |
| Operating Temperature |
+5 to +55 °C |
| Storage Temperature |
-25 to +70 °C |
| Battery |
3V Lithium (min. 5-year service life) |
| Dimensions (W x H x D) |
175 x 120 x 107.4 mm |
| Weight |
1.7 kg |
Information About CML75.1-3P-905-NA-NNNN-NW
The CML75.1-3P-905-NA-NNNN-NW is a compact embedded controller from Bosch Rexroth’s 75 series, offering reliable operation for industrial automation. It includes a 1.75 GHz Intel Atom E3827 DualCore CPU, 4 GB DRAM, and supports ambient air cooling for efficient thermal management. The unit features SERCOS III and PROFIBUS communication interfaces and supports 8 digital inputs and 8 digital outputs. Designed for use in harsh environments, it offers shock resistance, IP20 protection, and a wide operating temperature range from +5 to +55 °C.
Key Features:
- DualCore Processing: Equipped with a 1.75 GHz Intel Atom E3827 for efficient performance in control tasks.
- Integrated Digital I/Os: Supports 8 digital inputs and 8 digital outputs for flexible signal handling.
- Fieldbus Compatibility: Offers both SERCOS III and PROFIBUS interfaces for industrial network integration.
- CompactFlash Memory: Comes with 1 GB CompactFlash storage for system and application data.
- Rugged Design: Withstands 15g shocks per EN 60068-2-27 and operates in temperatures up to 55 °C.
- Ambient Cooling: Uses passive air cooling, reducing system complexity and noise.
- Display & Control Panel: Integrated 1-line display with 4 keys for local operation and diagnostics.
- Secure Power Management: Operates reliably with a 24 VDC supply and supports voltage variations from 19–30 VDC.
The CML75.1-3P-905-NA-NNNN-NW delivers the reliability and precision required for embedded industrial control in demanding automation systems.
