Description

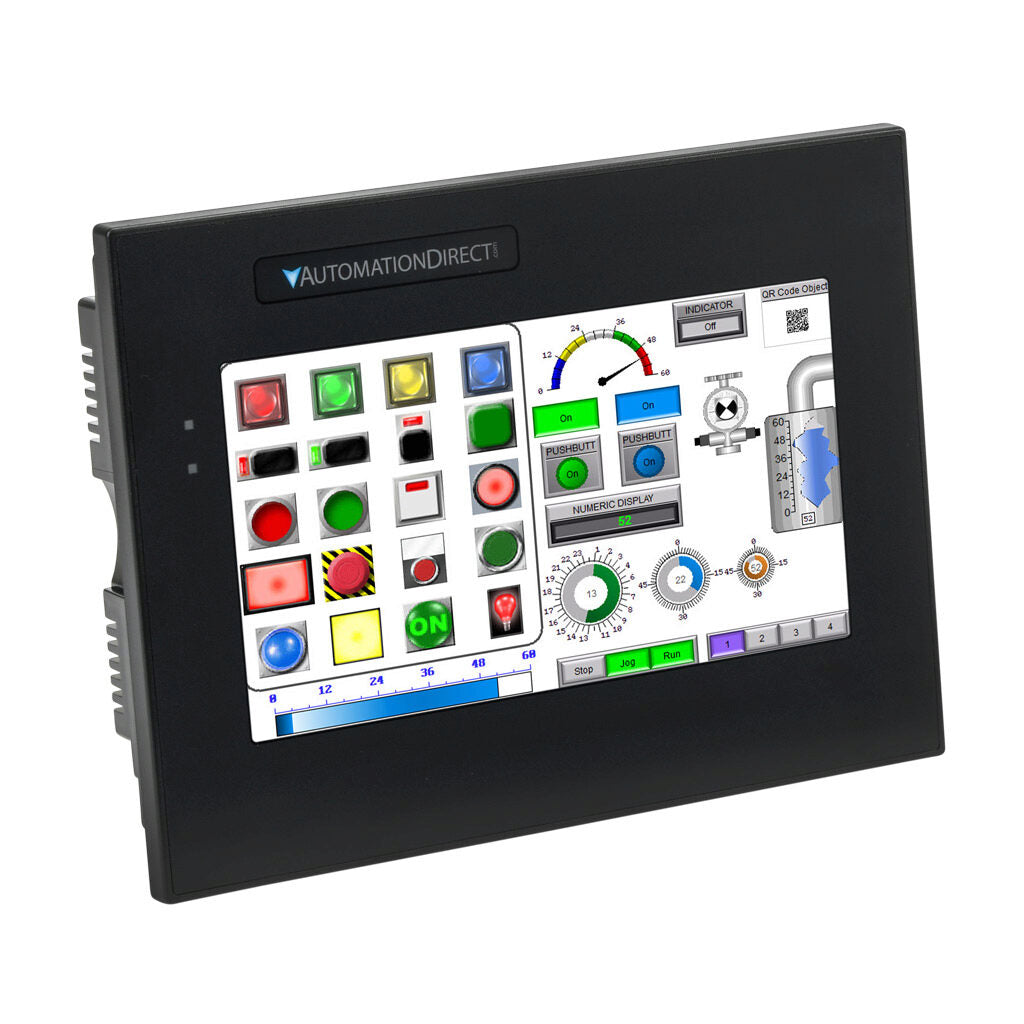

The AutomationDirect CM5-T7W is a C-more CM5 series 7-inch widescreen HMI designed for industrial machine interface and process visualization. It features a color TFT LCD display with resistive touch input for operator control and real-time monitoring. This panel-mounted HMI is used in automation systems requiring reliable graphical display, multi-protocol communication, and secure remote access capability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
AutomationDirect (C-more) |
| Category |
Industrial Automation Interfaces |
| Part Number |
CM5-T7W |
| Subcategory |
Human Machine Interfaces (HMIs) |
| Series |
CM5 |
| Display Size |
7 Inch (Widescreen) |
| Resolution |
800 x 480 (WVGA) |
| Display Type |
Color TFT LCD |
| Maximum Colors |
16.7 Million |
| Touch Panel Type |
Resistive Single-Touch |
| Brightness |
310 nits |
| CPU Speed |
800 MHz |
| Power Requirement |
12–24 VDC |
| Ethernet Port |
10/100Base-T (RJ45) |
| Serial Ports |
RS-232 (RJ12), RS-232/422/485 (DB15) |
| USB Ports |
(1) USB A, (1) USB B |
| IP Rating |
IP65 |
| Housing Rating |
NEMA 4/4X |
| Mounting Type |
Panel Mount |
| Weight |
1.10 kg |
Information About CM5-T7W
The CM5-T7W is part of the AutomationDirect C-more CM5 family of human-machine interface panels engineered for industrial control environments. It incorporates a 7-inch WVGA (800 x 480) color TFT LCD with LED backlight and supports both landscape and portrait orientation. Powered by a 12–24 VDC supply, the unit includes Ethernet, serial, and USB communication ports for integration with PLCs, drives, and networked automation equipment. Designed for panel mounting, it carries NEMA 4/4X and IP65 ratings for protection against dust and water in indoor industrial applications.
Key Features:
- 7-Inch WVGA Display: 800 x 480 resolution with 16.7 million color support for clear visualization.
- Resistive Touchscreen: Single-touch interface for reliable operator input.
- Multi-Protocol Communication: Supports EtherNet/IP, Modbus RTU/TCP, MQTT, Siemens, Omron, Mitsubishi, and more.
- Ethernet and Serial Ports: Includes RJ45 Ethernet and RS-232/422/485 connectivity.
- Secure Webserver Access: HTTPS support for remote configuration and monitoring.
- SD Card Slot: Enables data logging and project backup via removable media.
- 800 MHz CPU: Provides responsive screen updates and communication performance.
- NEMA 4/4X and IP65 Rated: Suitable for protected industrial panel environments.
The CM5-T7W delivers the reliability and precision required for industrial operator interface and machine visualization applications.
