Description

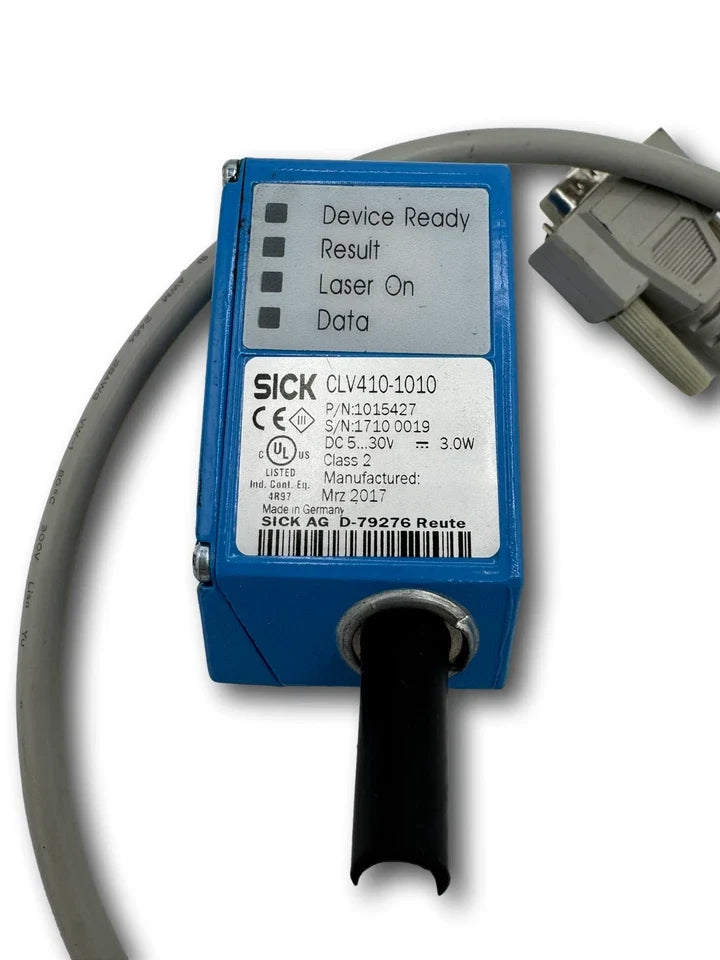

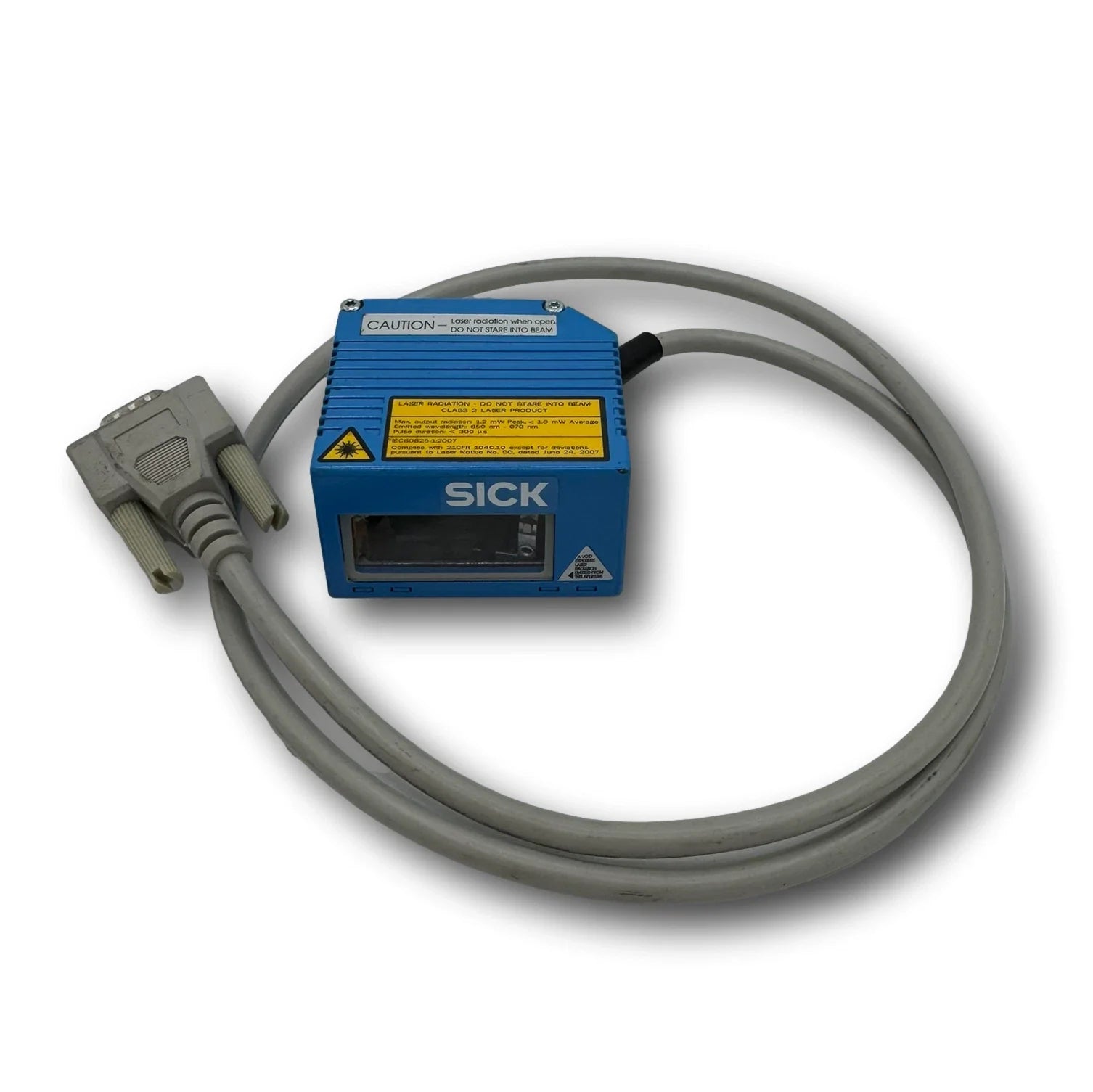

The SICK CLV410-1010 is a fixed-mount barcode scanner designed for reliable identification in industrial automation and logistics systems. It uses raster scanning with a visible red laser to read barcodes accurately within a mid-range working distance. This scanner is commonly used on conveyors, production lines, and material handling systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Identification |
| Part Number |
CLV410-1010 |
| Subcategory |
Fixed Mount Barcode Scanners |
| Series |
CLV41x |
| Scanner Design |
Raster scanner |
| Reading Field |
Front |
| Optical Focus |
Fixed focus |
| Light Source |
Visible red laser, 670 nm |
| Laser Class |
Class 2 (DIN EN 60825-1) |
| Reading Distance |
50 to 380 mm |
| Aperture Angle |
≤ 60° |
| Scanning Frequency |
200 to 800 Hz |
| Code Resolution |
0.2 to 1.0 mm |
| Supply Voltage |
5 to 30 V DC |
| Power Consumption |
3 W |
| Interfaces |
Digital I/O, serial interface |
| Electrical Connection |
15-pin D-Sub HD male, 0.9 m cable |
| Enclosure Rating |
IP65 |
| Housing Material |
Die-cast zinc |
| Housing Color |
Light blue (RAL 5012) |
| MTBF |
20,000 hours |
| Dimensions (L × W × H) |
59 × 62.7 × 35.2 mm |
| Operating Temperature |
0 to +40 °C |
| Weight |
250 g |
Information About CLV410-1010
The CLV410-1010 is part of SICK’s CLV41x series of fixed-mount barcode scanners engineered for continuous industrial operation. It features a fixed-focus optical system with a raster scanning design to reliably capture barcodes with varying orientations. The device supports a wide range of common barcode symbologies and integrates easily with control systems via digital I/O and serial interfaces. Its compact die-cast housing and IP65 protection rating make it suitable for demanding factory and warehouse environments.
Key Features:
- Mid-Range Raster Scanner: Designed for reliable barcode reading across variable positions and orientations.
- Visible Red Laser Source: Uses a 670 nm Class 2 laser for accurate barcode detection.
- Wide Reading Distance: Supports barcode reading from 50 mm to 380 mm.
- High Scanning Frequency: Operates between 200 Hz and 800 Hz for fast-moving applications.
- Multiple Barcode Support: Reads all common code types including Code 39, Code 128, GS1-128, and EAN/UPC.
- Compact Industrial Housing: Die-cast zinc enclosure with IP65 protection for harsh environments.
- Integrated I/O and Indicators: Includes digital inputs, outputs, LEDs, and an acoustic indicator.
The CLV410-1010 delivers the reliability and precision required for fixed-position barcode identification in industrial automation systems.
