Description

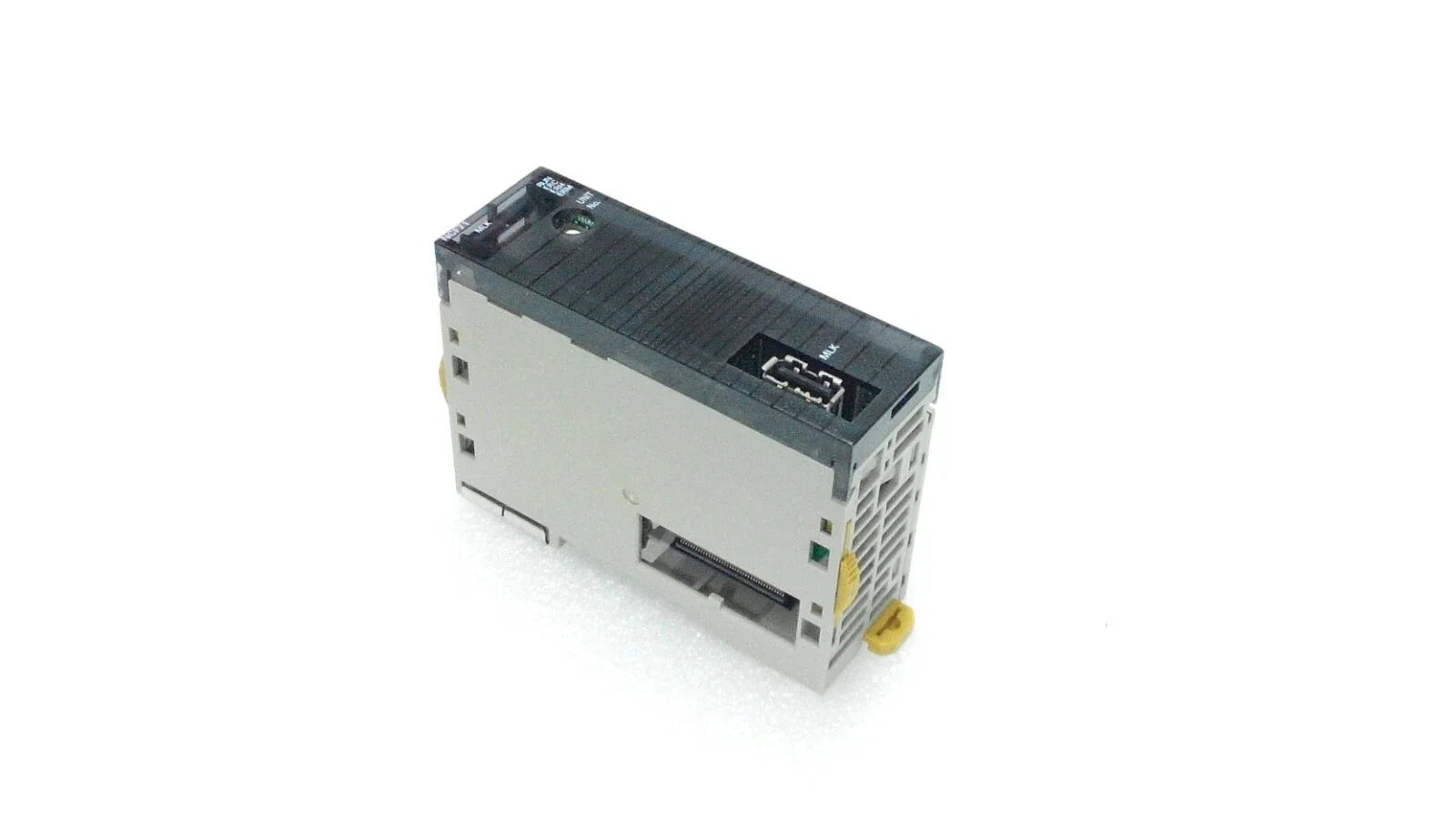

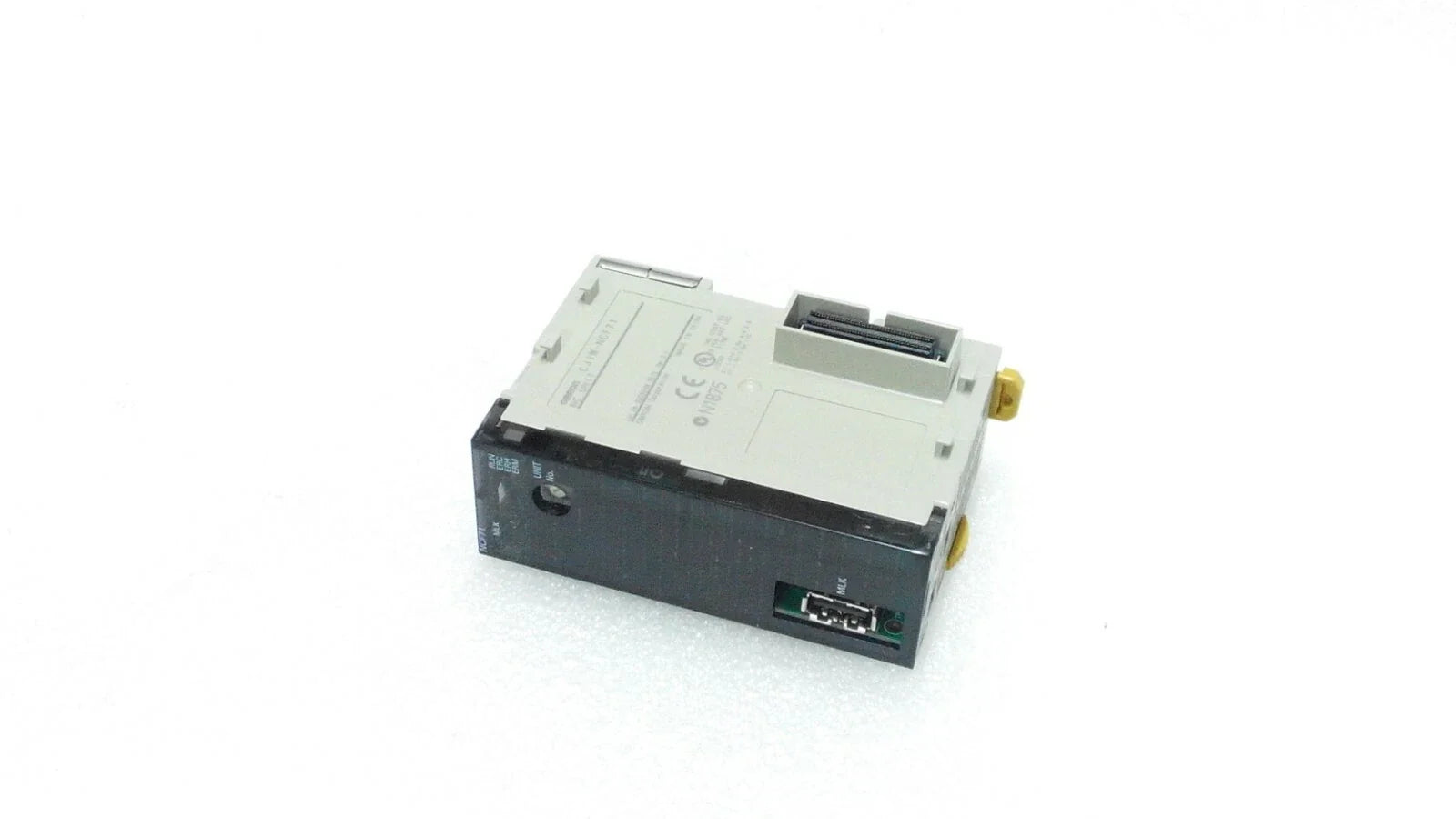

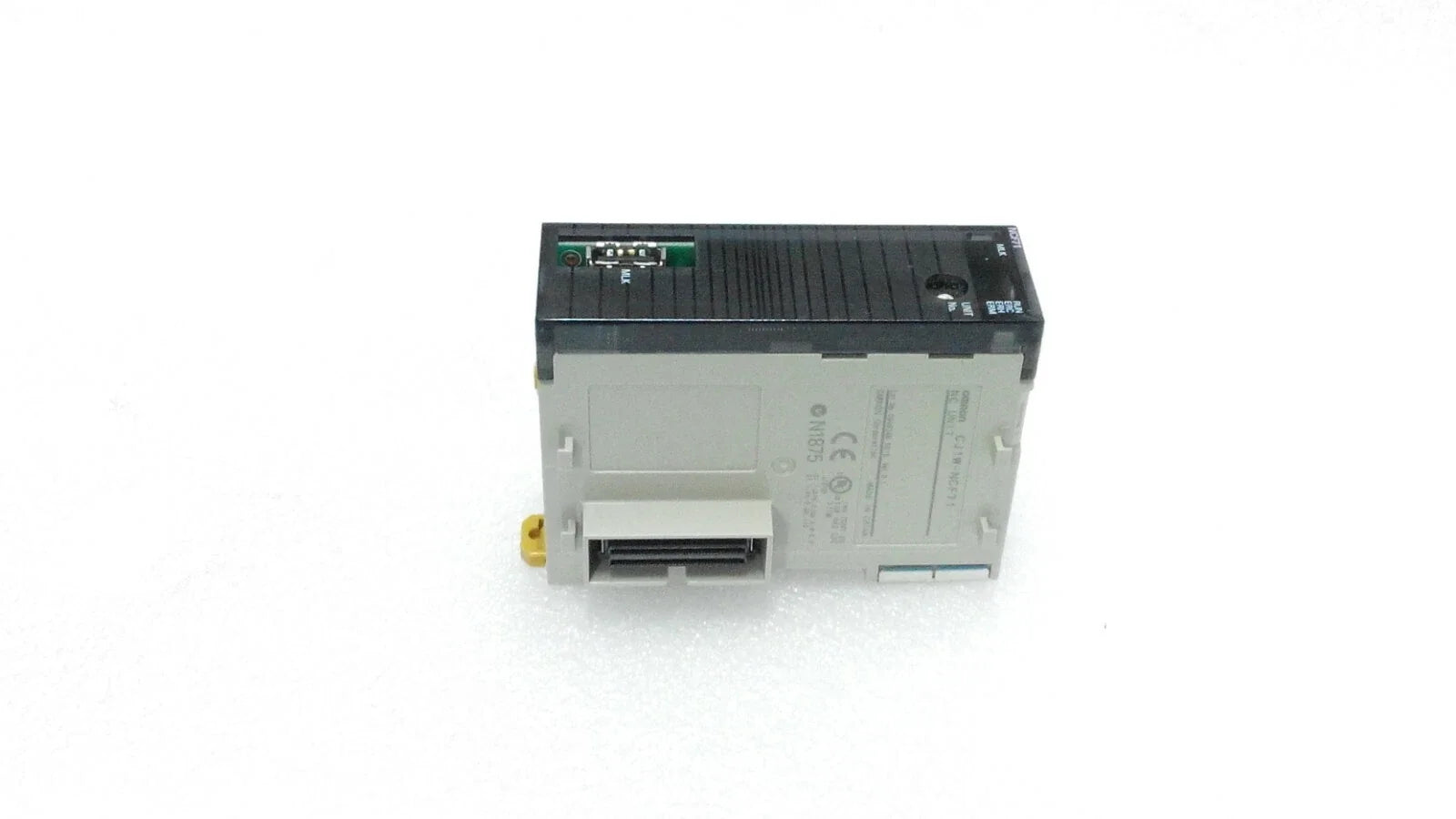

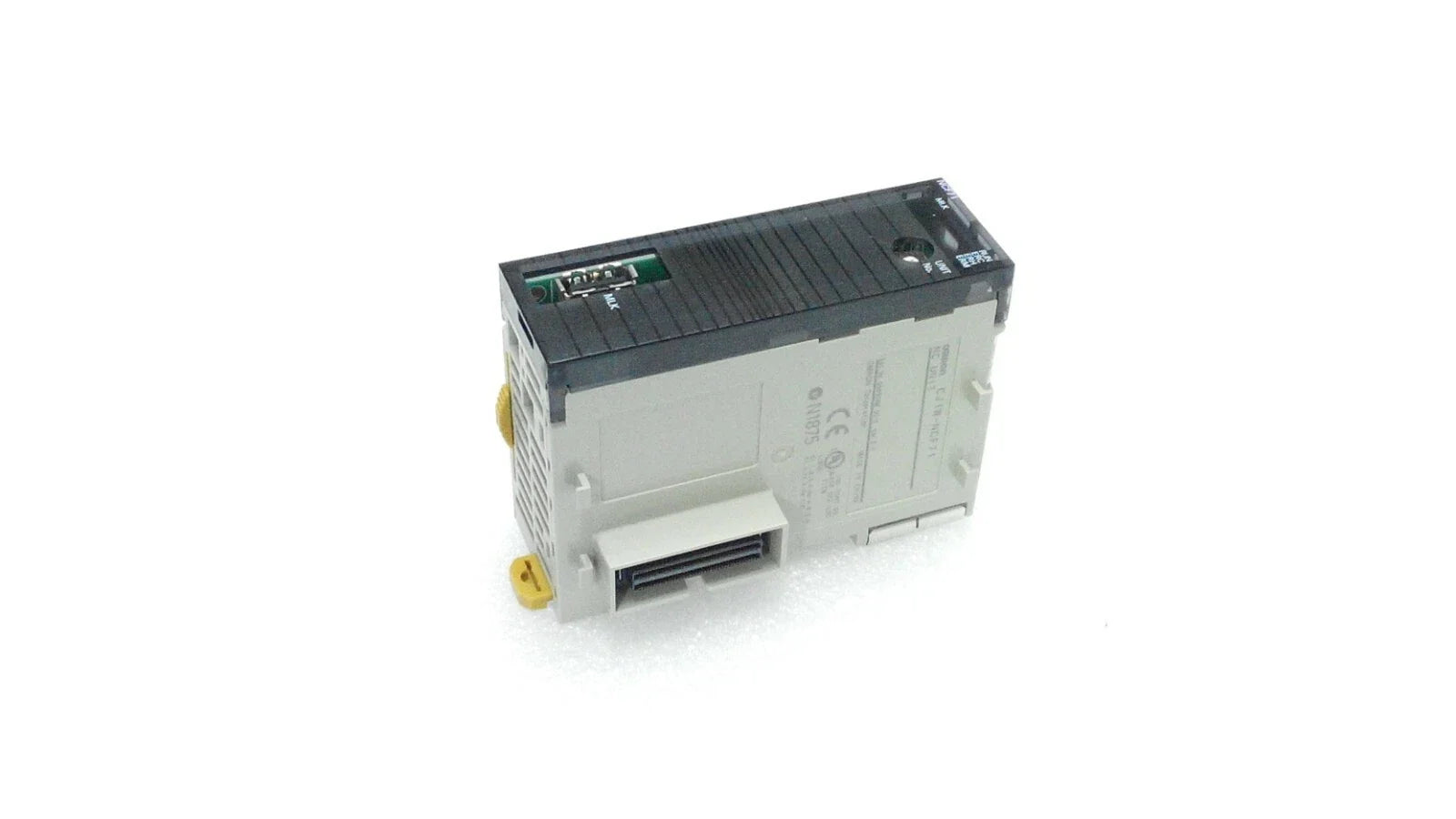

The Omron CJ1W-NCF71 is a high-performance position control module designed for multi-axis motion control within CJ1 Series PLC systems. It supports up to 16 axes and communicates via MECHATROLINK-II for synchronized servo drive control. This module is ideal for precision automation applications requiring coordinated movement and high-speed data exchange.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CJ1W-NCF71 |
| Subcategory |
PLC Module/Rack |
| Module Type |
Position Control Module |
| Series |
CJ1 Series |
| Number of Controlled Axes |
16 Axes |
| Communication Protocol |
MECHATROLINK-II |
| Mounting Type |
DIN Rail / PLC Rack Mount |
| Compatible PLC Family |
Omron CJ1 Series CPUs |
| Network Interface |
Dedicated MECHATROLINK-II Port |
| Application Type |
Multi-Axis Servo Positioning |
| Industrial Use |
Packaging, Assembly, Material Handling |
| Weight |
0.77 lbs |
Information About CJ1W-NCF71
The CJ1W-NCF71 is a CJ1 Series position control module engineered for advanced motion applications in industrial automation systems. It mounts directly onto a CJ1 PLC rack and integrates seamlessly with Omron CJ1 CPUs. Featuring MECHATROLINK-II communication, it enables deterministic, high-speed networked control of multiple servo drives over a single network. The module is commonly used in packaging, material handling, assembly machinery, and other applications that require synchronized multi-axis positioning.
Key Features:
- 16-Axis Motion Control: Controls up to sixteen servo axes for coordinated machine movement.
- MECHATROLINK-II Network: High-speed deterministic communication for precise servo synchronization.
- CJ1 Series Compatibility: Designed for direct integration with Omron CJ1 PLC systems.
- DIN Rail Mounting: Standard mounting format for secure installation in control panels.
- High-Speed Data Exchange: Enables rapid command updates and real-time position feedback.
- Centralized Motion Management: Reduces wiring complexity by networking multiple drives.
- Industrial Application Ready: Suitable for packaging, robotics, indexing tables, and transfer systems.
The CJ1W-NCF71 delivers the reliability and precision required for advanced multi-axis motion control in automated manufacturing systems.
