[shortdesc]

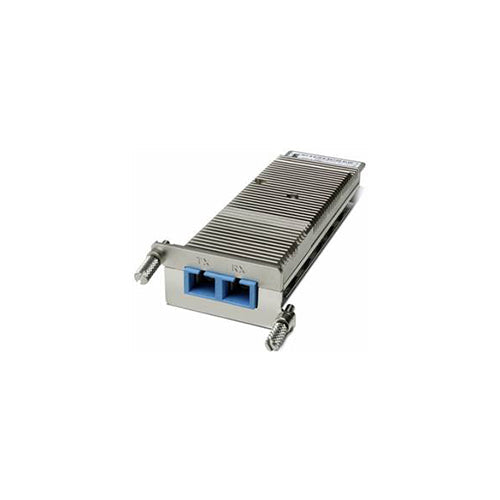

- XENPAK transceiver module
- 10 GigE
- 10GBase-LRM
- SC/PC multi-mode
- up to 722 ft
- 1310 nm
- for P/N: 4-10GE
[/shortdesc]
[specifications]
| Specifications |
XENPAK-10GB-LRM |
| Description |
Cisco 10GBASE-LRM XENPAK Module for MMF. It supports link lengths 220m on standard FDDI-grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. |
| Product Type |
Transciever |
| Connector |
Dual LC/PC |
| Transmit Power Range (dBm) |
-6.5 to 0.5 |
| Receive Power Range (dBm) |
-8.4 to 0.5 |
| Wavelength Range (nm) |
1310 (1260 to 1355) |
| DOM |
Yes |
| Temperature Range |
0 and 40°C (32 to 104°F) |
| Dimensions |
4.76” x 1.42” x 0.47” in. (121 x 36 x 18 mm) |
| Wavelength (nm) |
Fiber Type |
Core Size (μm) |
Modal Bandwidth
(MHz* Km) |
Operating Distance (m) |
| 850 |
MMF |
62,5 |
500 |
220m |
| 50 |
400 |
100 |
| 50 |
500 |
220m |
[/specifications][accesories]
| CAB-GELX-625= |
Mode conditioning patch cable 62.5um, dual SC connectors |
| CAB-MCP50-SC= |
Mode conditioning patch cable 50um, dual SC connectors |
| CAB-INF-28G-1= |
1 m cable for 10GBase-CX4 module |
| CAB-INF-28G-5= |
5 m cable for 10GBase-CX4 module |
| CAB-INF-28G-10= |
10 m cable for 10GBase-CX4 module |
| CAB-INF-26G-15= |
15 m cable for 10GBase-CX4 module |
[/accesories]
The range of Cisco 10GBASE XENPAK modules offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
