[shortdesc]
- Direct-attach cable
- QSFP+ to QSFP+
- 10 ft
- Twinaxial
- orange
- for Catalyst 3016; Nexus 3016
- 3064-E
[/shortdesc]
[specifications]
| Description |
Cisco 40GBASE-CR4 QSFP direct-attach copper cable, 3-meter, passive |
| Dimensions |
13.5 x 18.4 x 72.4 mm |
| Cable Type |
Direct-attach copper cable assembly |
| Cable Distance |
3m |
| Power Consumption (W) |
1.5 |
| Pull Tab Color |
Orange |
| Commercial temperature |
0 to 70C (32 to 158F) |
| Storage temperature |
-40 to 85C (-40 to 185F) |
| Standards |
GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
IEEE 802.3ba (-SR4, -LR4)
IEEE 802.3ae (-CSR4)
QSFP+ MSA SFF-8436
SFP+ MSA SFF-8431 and -8461
RoHS 6 |
| Safety |
Cable jacket of QSFP copper modules is UL E116441 Compliant
QSFP copper cables are ELV Compliant |
[/specifications]
High-Performance 40G Connectivity for Top-of-Rack and Rack-to-Rack Links

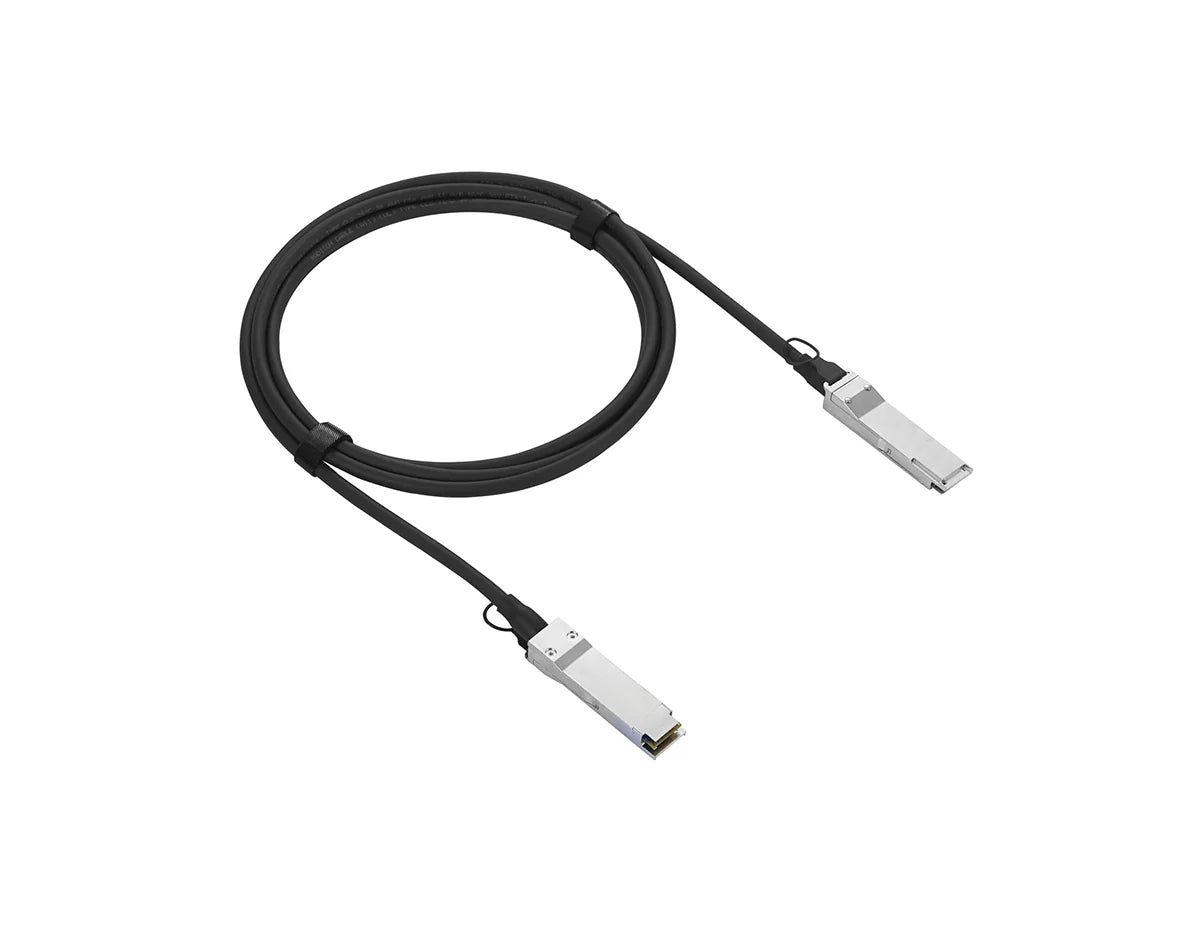

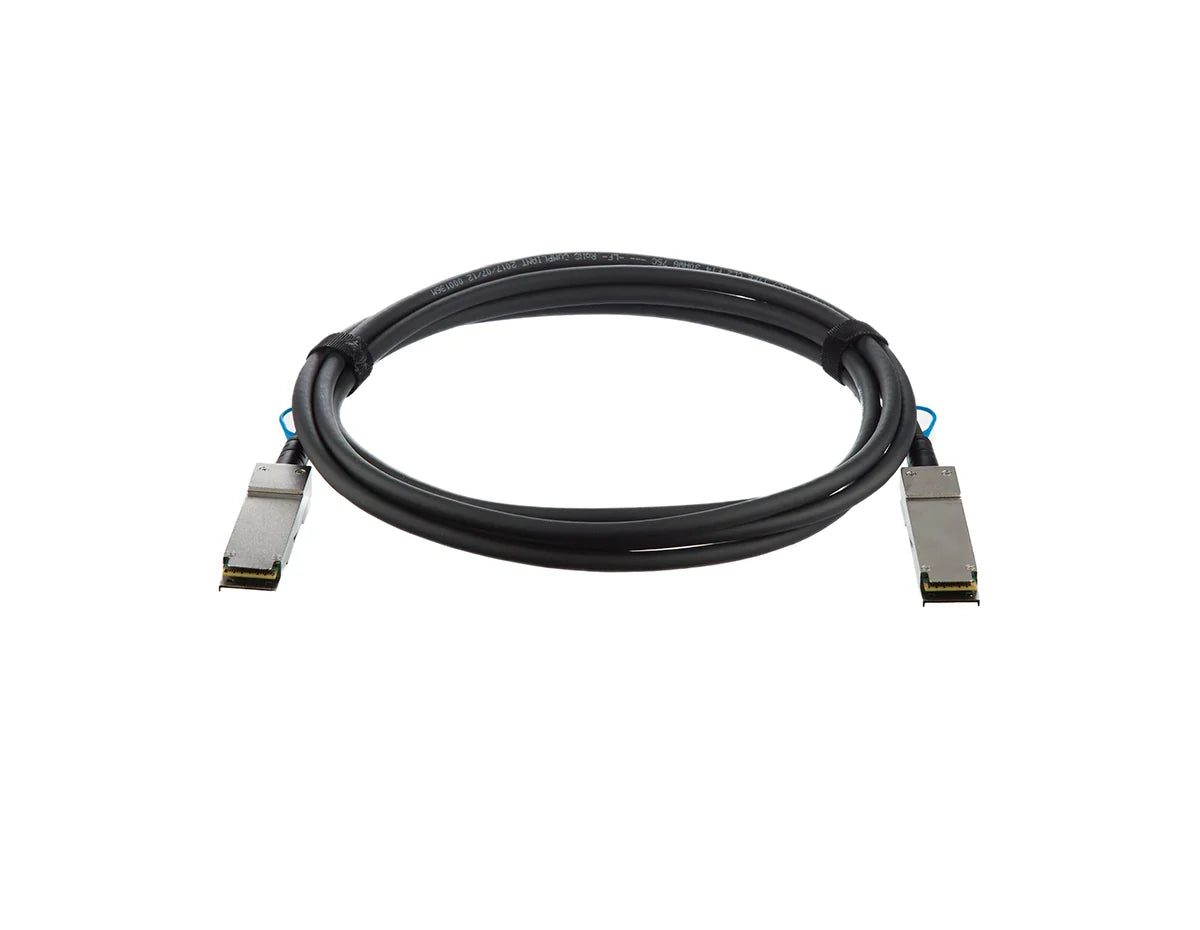

The Genuine Cisco QSFP-H40G-CU3M is a 3-meter 40GBASE-CR4 Direct Attach Copper (DAC) cable designed for short-distance, high-speed connections between Cisco QSFP+ ports. Ideal for rack-to-rack links, Top-of-Rack (ToR) to end-of-row switches, or connecting switches and routers in dense data center environments.
As a passive copper DAC, it delivers near-zero power consumption, ultra-low latency, and maximum signal integrity—making it the most cost-effective solution for 40G Ethernet in modern data centers.
Why Choose the QSFP-H40G-CU3M?
- Rack-to-Rack Flexibility: 3-meter length is perfect for interconnecting switches across adjacent racks or long ToR runs.
- Low Latency, Low Power: Passive copper means no transceivers, no optical conversions, and near-zero power draw.
- Cost-Effective 40G: Eliminates the need for expensive optical transceivers and patch cables.
- Factory-Sealed Cisco Quality: Guaranteed compatibility, hot-swappable, and built for mission-critical uptime.
Technical Features:
-
Data Rate: Up to 40 Gbps (40GBASE-CR4)
-
Cable Type: Passive Twinax Direct Attach Copper (DAC)
-
Length: 3 meters (9.8 feet)
-
Connectors: QSFP+ to QSFP+
-
Wire Gauge: 30 AWG
-
Power Consumption: Near-zero (Passive)
-
Hot Swappable: Yes
-
Operating Temp: 0°C to 70°C
-
Compliance: MSA Compliant, IEEE 802.3ba, RoHS
For detailed specifications, refer to the Cisco QSFP-H40G-CU3M datasheet in the tabs above.
