- 160W of continuous output power
- Wide input voltage range of 18-60V DC
- DIN rail-mountable
- IP67 rated for dust and water ingress protection
- PoE compliant
- Reliable and efficient
- Cost-effective
[/shortdesc]
[properties]
| Product Name |

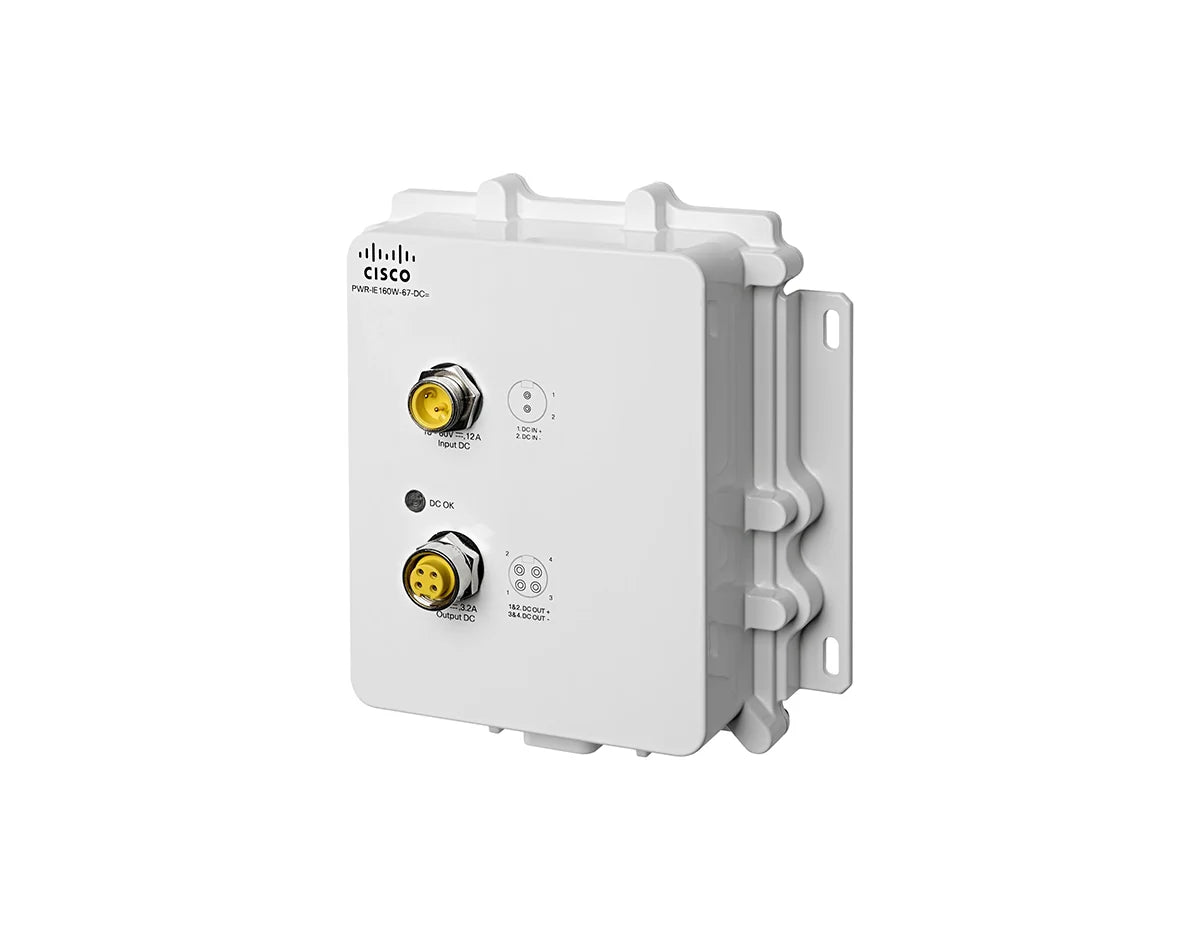

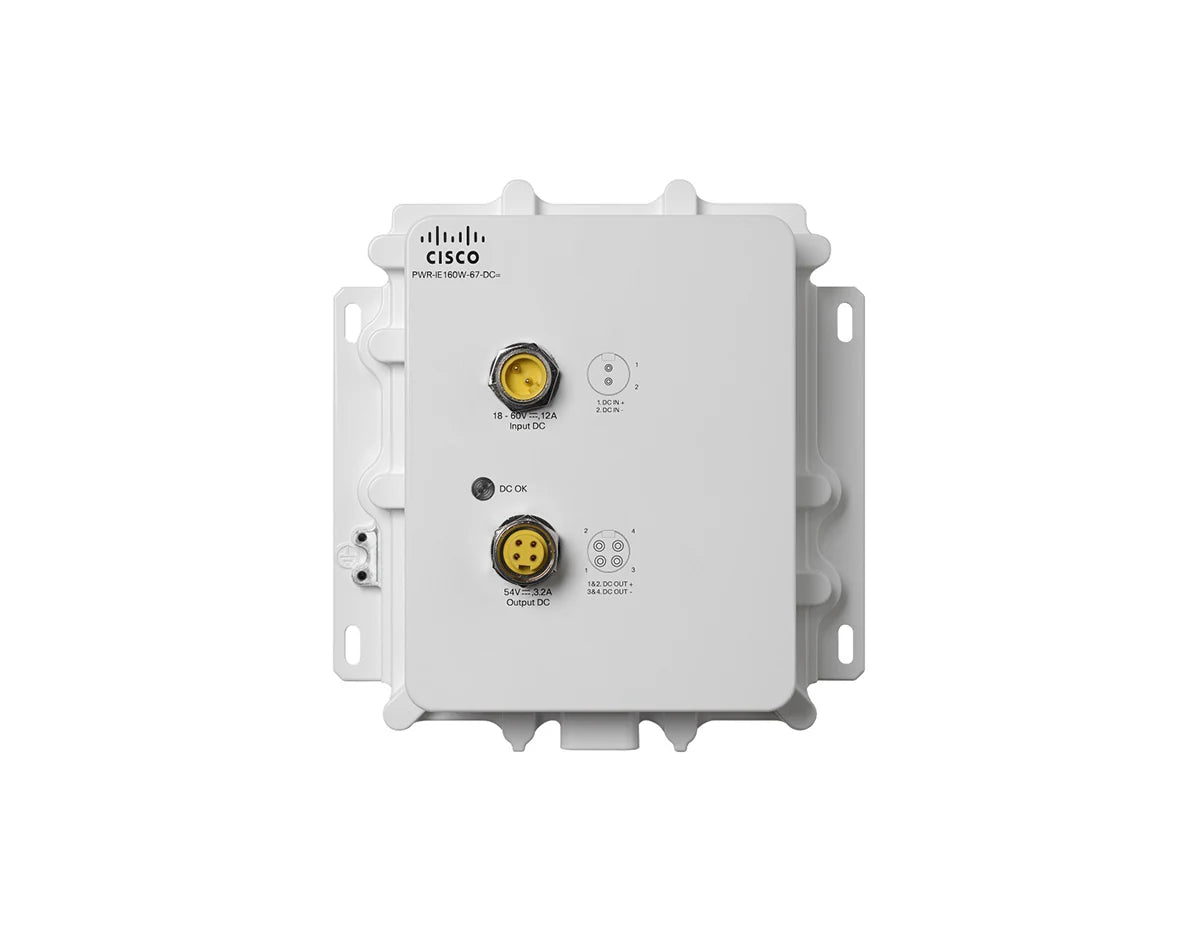

Cisco PWR-IE160W-67-DC Power Supply |
| Product Description |
160W DC input power module designed for IP67-rated Cisco IE2000 series switches, suitable for harsh industrial environments |
| Product Type |
Power Supply Module |
| Output Power |
160 W |
| Output Voltage |
54 V DC |
| Input Voltage Range |
18–60 V DC |
| Input Current |
12 A at 18 V DC; 3.6 A at 54 V DC |
| Mounting Type |
DIN rail |
| Ingress Protection Rating |
IP67 (dust and water ingress protection) |
| PoE Compliance |
Yes |
| Dimensions (H x W x D) |
2.17 x 4.29 x 6.69 inches (55 x 109 x 170 mm) |
| Weight |
2.2 lbs (1 kg) |
| Operating Temperature Range |
-40°F to 167°F (-40°C to 75°C) |
| Operating Humidity |
5% to 95% (non-condensing) |
[/properties]
[specifications]
| Cooling Method |
Convection |
| MTBF |
Over 500,000 hours |
| Compliance Standards |
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Environmental Standards |
IEC 60068-2-2 Environmental Type Tested to +85°C for 16 hours |
| Safety Certifications |
CE Marking, cULus, CB, CCC, EAC |
| Designed For |
Cisco Industrial Ethernet 2000 IP67 Series switches |
| Additional Features |
Supports redundant power configurations for increased reliability |
| Storage Temperature Range |
-40°F to 185°F (-40°C to 85°C) |
[/specifications]
The PWR-IE160W-67-DC is a 160W DC Input Power Module for IP67 IE2000 series switches. It is a DIN rail-mountable power supply that is designed to be used in harsh environments. The power module is rated for 160W of continuous output power and has a wide input voltage range of 18-60V DC.
The PWR-IE160W-67-DC power module is a reliable and efficient power supply that is ideal for use in industrial and outdoor applications. It is also a cost-effective solution for providing power to IP67 IE2000 series switches.
