[shortdesc]
- Power supply
- hot-plug (plug-in module)
- AC 100-240 V
- 125 Watt
- for P/N: C9200-24T-A
C9200-24T-E
C9200-48T-A
C9200-48T-E
[/shortdesc]
[properties]
| Properties |
Cisco PWR-C5-125WAC Power Supply |
| Description |
The Cisco PWR-C5-125WAC is a 125-watt power supply unit designed for Cisco networking equipment, ensuring reliable and efficient power to support the performance of your network devices |
| Compatibility |
Designed for Cisco Catalyst 9200 Series Switches |
| Product Type |
Power Supply- hot-plug / redundant |
[/properties] [specifications]
| Specifications |
Cisco PWR-C5-125WAC |
| Power Device |
| Form Factor |
Plug-in module |
| Power Supply Compatibility |
Network hardware |
| Power Type |
AC |
| Voltage Provided |
12 volt |
| Voltage Required |
Voltage Required |
| Power Provided |
125 watt |
| Max Electric Current |
10.5 ampere |
| Frequency Required |
50 - 60 hertz |
| Input Connector Type |
Power IEC 60320 C14 |
| Physical Characteristics |
| Height |
1.6" |
| Width |
4" |
| Depth |
7.6" |
| Weight |
23.98 oz |
| Environmental Parameters |
| Min Operating Temperature |
23 degree Fahrenheit |
| Max Operating Temperature |
113 degree Fahrenheit |
| Humidity Range Operating |
5 - 90% (non-condensing) |
[/specifications] [accesories] [/accesories]

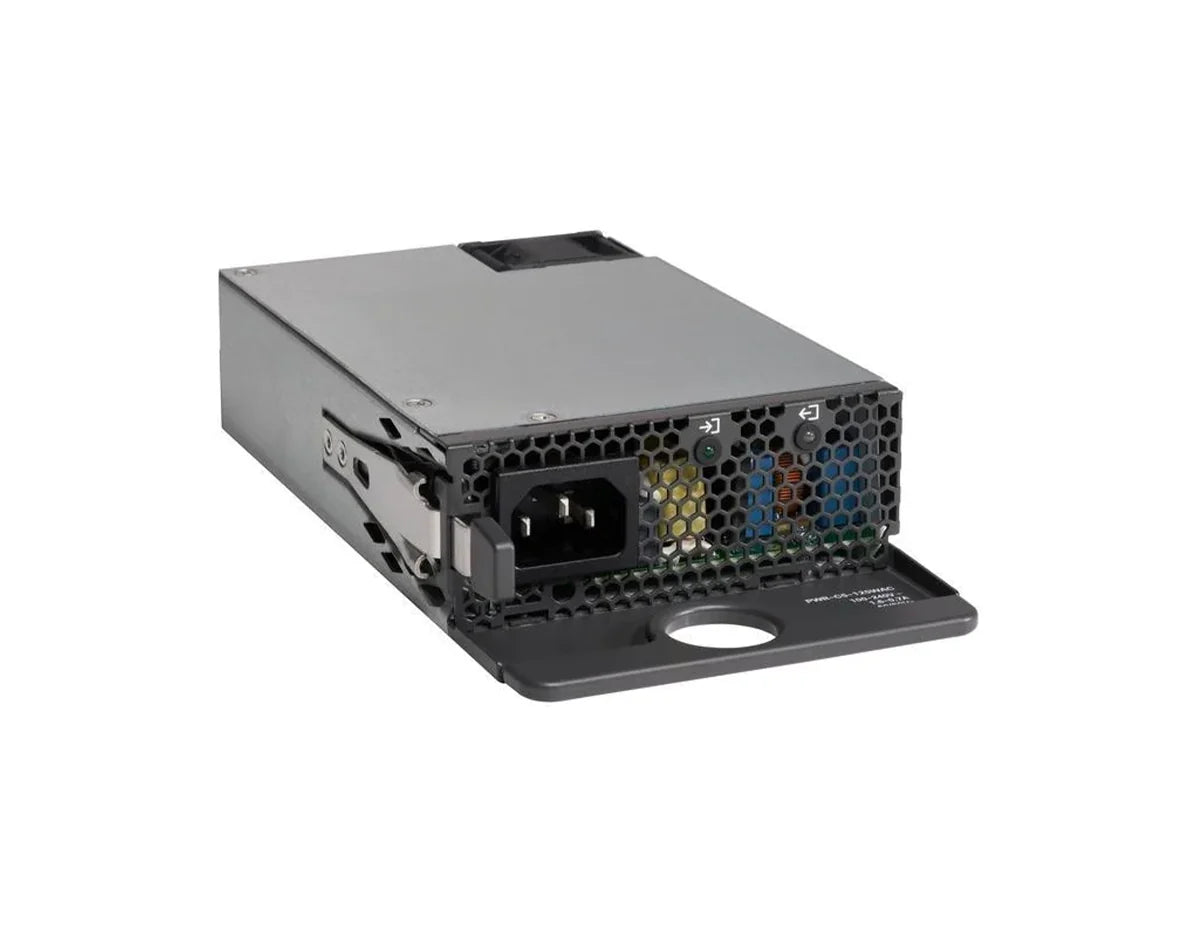

Cisco PWR-C5-125WAC Power Supply
ThE PWR-C5-125WAC is a hot-plug power supply provides a power of 125 watts. The Cisco AC Config 5 Power Supply is designed to power the Cisco Catalyst 9200 Series switches.
Key Features:
- 125W
- AC Config 5
- For Catalyst 9200 Series
For detailed specifications, refer to the PWR-C5-125WAC datasheet in the tabs.
