[shortdesc]
- Power Supply (plug-in module)
- AC 100-240 V
- 1025 Watt
- FRU
- for Catalyst 2960XR-24
- 2960XR-48
[/shortdesc]
[properties]
| Properties |
Cisco PWR-C2-1025WAC Power Supply |
| Description |
1025W AC power supply for Cisco Catalyst 2960-XR Series Switches, designed for high-performance and redundancy |
| Compatibility |
Cisco Catalyst 2960-XR Series Switches |
| Product Type |
Power Supply – hot-plug / redundant |
[/properties]
[specifications]
| Specifications |
Cisco PWR-C2-1025WAC |
| Power Device |
| Power Type |
AC |
| Voltage Input |
115–240 VAC (autoranging) |
| Frequency |
50–60 Hz |
| Input Current |
12–6 A |
| Output Ratings |
+12 V @ 20.83 A, –54 V @ 14.6 A |
| Maximum Output Power |
1025 W |
| Total Output BTU |
3497 BTU/hr (1025 W) |
| Total Input BTU |
3801 BTU/hr (1114 W) |
| Physical Characteristics |
| Dimensions (H x W x D) |
1.58 x 3.75 x 13.25 in (4.0 x 9.5 x 33.7 cm) |
| Weight |
3.4 lb (1.6 kg) |
| Environmental Parameters |
| Operating Temperature |
23 to 113°F (–5 to 45°C) |
| Storage Temperature |
–40 to 158°F (–40 to 70°C) |
| Relative Humidity |
10–95% (non-condensing) |
| Altitude |
Up to 10,000 ft (3,000 m) |
[/specifications]
[accesories]
| Included Accessories |
| — |
No additional accessories included in the box |
| Optional Accessories |
| PWR-C2-BLANK |
Power supply slot blank cover |
| PWR-C2-640WAC |
640W AC power supply (alternative model) |
| CAB-AC |
Standard AC Power Cable |
[/accesories]

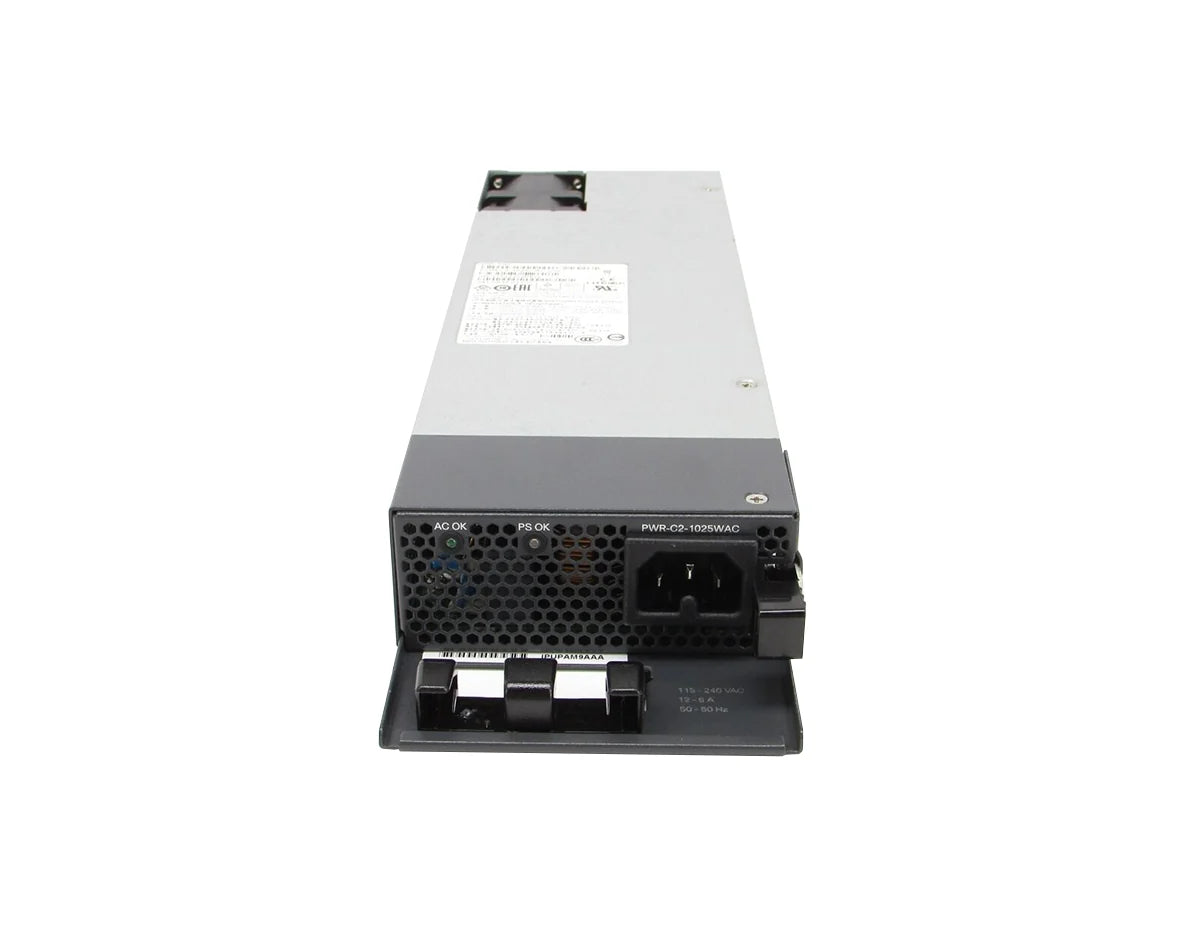

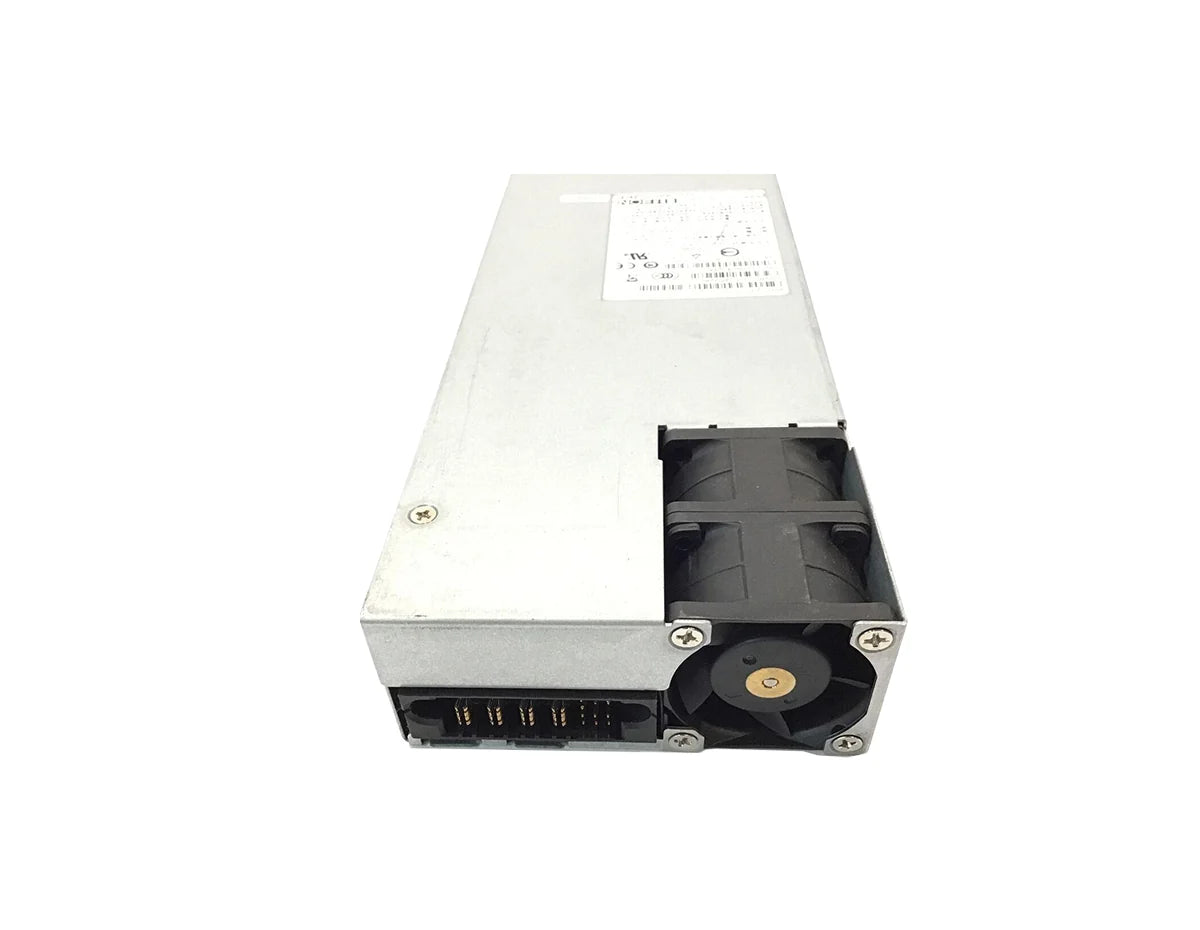

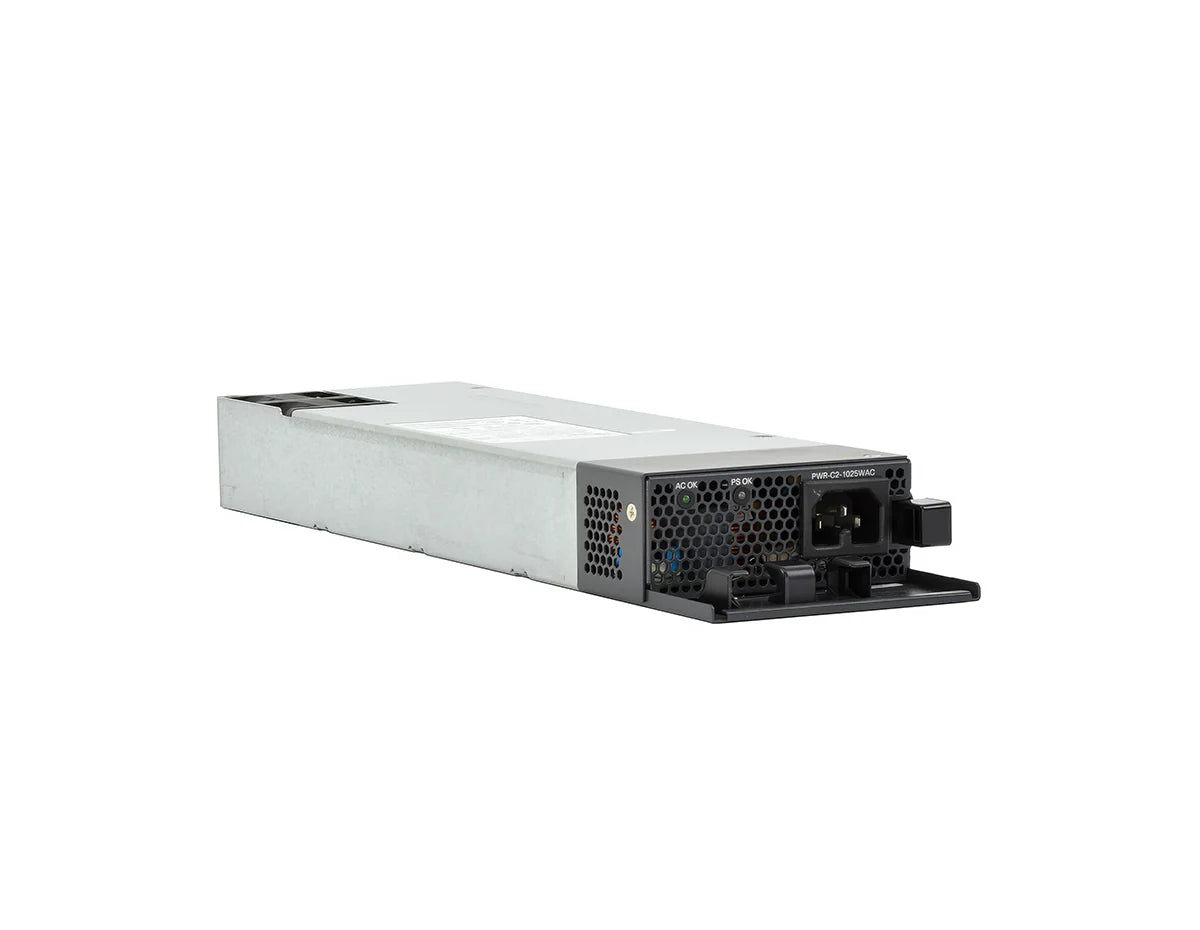

Cisco PWR-C2-1025WAC Power Supply
Cisco PWR-C2-1025WAC Power Supply is an auto-ranging unit, providing support for input voltages between 100 and 240 VAC. Cisco PWR-C2-1025WAC power supply provides 1025W output power. It has a compact form factor for easy portability and its field-replaceable unit is designed for uninterrupted computing experience.
Key Features:
-
1025W
- High-quality materials
- For Catalyst 2960 and 3650 Series
For detailed specifications, refer to the Cisco PWR-C2-1025WAC datasheet in the tabs.
