[shortdesc]
- Voice DSP module
- for Cisco 4451-X
[/shortdesc]
[properties]
| Properties |
Cisco PVDM4-256 |
| Description |
256-channel high-density voice DSP module |
| Product Family |
Cisco PVDM4 Series |
| Product Type |
Digital Signal Processor Module |
| Supported Devices |
Cisco 4000 Series ISRs (except ISR 4461) |
| Channels Supported |
256 (Low), 192 (Medium), 128 (High complexity) |
| Form Factor |
On-board motherboard or T1/E1 module slot |
| Connectivity Technology |
Wired |
Mean Time Between Failures
MTBF (hours) |
System dependent |
[/properties] [specifications]
| Specifications |
PVDM4-256 |
| DSP Technology |
Multicore DSP |
| Interface |
Integrated Services Card (ISC) slot on motherboard or T1/E1 NIM |
| Supported Channels |
256 (Low Complexity), 192 (Medium), 128 (High) |
| Operating Temperature |
32° to 122°F (0° to 50°C) |
| Voltage |
3.3V |
| Current |
1.47A |
| Power |
4.85W (typical) |
| Dimensions (H x W x D) |
0.67 x 2.50 x 2.62 in. (1.7 x 5.1 x 6.7 cm) |
| Weight |
0.08 lb (36 g) |
| Supported Codecs |
G.711, G.722, G.726, G.728, G.729, G.729a, G.729b, G.729ab, iLBC, Fax relay, Modem relay, iSAC (transcoding only) |
| Media Enhancement Features |
Echo cancellation (G.168, 128ms), Tone detection, Noise reduction, Gain control, Acoustic shock prevention |
| Compliance & Safety |
UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1, NOM-019-SCFI-1998 |
| EMC Certifications |
CISPR22 Class B, EN55022, EN61000-3-2, EN61000-3-3, EN 55024, EN 61000-4 series |
[/specifications] [accesories]
| Compatible Accessories |
| SM-X-PVDM-500= |
768-channel Enhanced DSP Module |
| SM-X-PVDM-1000= |
1024-channel Enhanced DSP Module |
| SM-X-PVDM-2000= |
2048-channel Enhanced DSP Module |
| SM-X-PVDM-3000= |
3080-channel Enhanced DSP Module |
[/accesories]

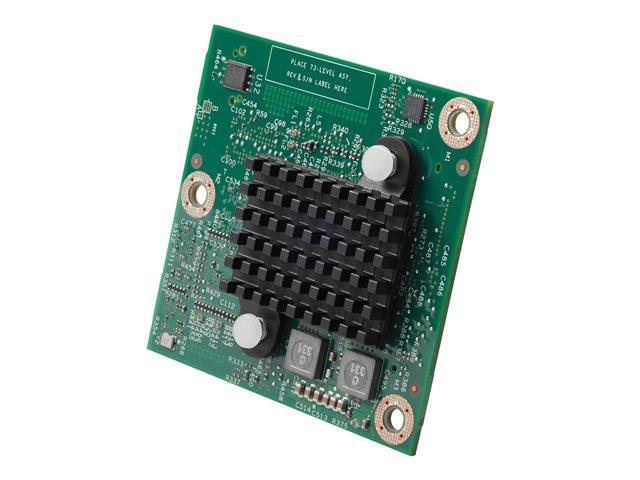

Cisco PVDM4-256 Expansion Module
The PVDM4 modules are supported on the Cisco 4451-X platform. You can plug them directly into the single slot on the router motherboard or onto the network interface module (NIM) that supports T1/E1 ports. Enhanced DSP architecture accommodates a packet-processing engine optimized for rich-media voice applications, while concurrently supporting the time-division multiplexing IP (TDM-IP) voice framework. A PVDM4 module plugged onto the motherboard delivers IP-based voice services such as conferencing, media optimization, and transcoding. A PVDM4 module plugged onto the NIM daughter card would be used for voice T1/E1 connectivity. All the PVDM4 modules have the same form factor and are field-upgradable to allow you to easily scale your voice deployments.
