[shortdesc]
- Expansion module
- T1/E1 x 4
- T-1/E-1
- For Cisco 4451-X
[/shortdesc]
[specifications]
| Clear-Channel Data |
Yes |
| MFT Packet Voice |
Yes |
| Unstructured E1 (G.703) Support |
No |
| Channelized Data |
No |
| Data Only |
| Serial data (channel-group) |
2 per port |
| E1 unframed G.703 |
Not Supported |
| Voice channel associated signaling (CAS) (ds0-group) |
24 per port (T1)
31 per port (E1)
1 per timeslot |
| Voice and Data |
| PRI (pri-group) |
1 per port |
Drop and insert
(tdm-group)
|
24 per port (T1)
31 per port (E1)
1 per timeslot |
| Dimensions (H x W x D) |
1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
| Environmental |
Operating temperature: 0 to 50C (32 to 122F)
Storage temperature: -20 to +65C (-4 to 148F)
Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating |
| T1 Compliance (partial list) |
TIA-968-A
CS-03
Jate
ANSI T1.403 |
| E1 Compliance (partial list) |
TBR4, TBR12, and TBR13
ITU-T G.703, G.704, G.823, and I.431
S016 (Australia) |
| Weight |
0.44 lb (200g) |
[/specifications]

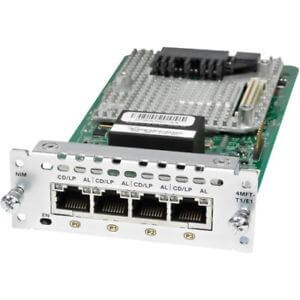

Install Cisco NIM-4MFT-T1/E1 Expansion Module for Data & Voice Applications
Cisco NIM-4MFT-T1/E1 Expansion Module is the fourth-generation multiflex trunk voice and WAN Network Interface Module. It supports data and voice applications on the Cisco 4451-X integrated services routers. Find it in the combination of WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1).
Key Benefits of Cisco NIM-4MFT-T1/E1 Expansion Module
Cisco NIM-4MFT-T1/E1 Expansion Module is designed to provide unique flexibility, versatility, and guarantee investment protection through their several uses. If you want to integrate data and voice in multiple steps, Cisco NIM-4MFT-T1/E1 Expansion Module can be your right investment choice. It contains an onboard Cisco Packet Voice Digital Signal Processor Module 4 slot and requires a fourth-generation PVDM4 module. It is necessary for voice application features and provides for echo cancellation of up to 128-ms echo-tail length for demanding network conditions.
Cisco NIM-4MFT-T1/E1 Expansion Module Overview
| Number of Ports |
4 |
| Clear-Channel Data |
Yes |
| MFT Packet Voice |
Yes |
| Unstructured E1 (G.703) Support |
No |
| Channelized Data |
No |
