[shortdesc]
- Expansion module
- FXS/DID x 2
- For Cisco 4451-X
[/shortdesc]
[properties]
| Properties |
Cisco NIM-2FXSP |
| Description |
2-Port FXS Network Interface Module with DID Support |
| Product Family |
Cisco Voice NIM |
| Product Type |
Analog Voice Module (FXS/DID) |
| Supported Devices |
Cisco 4300 and 4400 Series ISR |
| Ports |
2 x FXS (Foreign Exchange Station) |
| Form Factor |
Single-wide NIM Slot |
| Connectivity Technology |
Wired (Analog Voice over TDM) |
| DSP |
Integrated DSP with Echo Cancellation |
[/properties] [specifications]
| Specifications |
NIM-2FXSP |
| Number of Ports |
2 x FXS or DID |
| Software Compatibility |
IOS XE 16.5 or later |
| DSP Features |
Echo cancellation (128ms), VAD, CNG, RTCP, T.38 fax relay, modem support |
| Voice Protocol Support |
H.323, SIP, MGCP, SCCP |
| Audio Codec Support |
G.711, G.729a, G.726, G.723, iSAC (planned), iLBC (roadmap) |
| Caller ID Support |
Yes (FXS only) |
| Loop Start / Ground Start |
Supported |
| MWI Support |
Yes (Message Waiting Indicator) |
| Physical Dimensions (Weight) |
0.42 lb (191 g) |
| Compliance |
UL 60950-1, EN 60950-1, CS-03, AS/CA S003, TIA-968-B |
[/specifications] [accesories]
| Included Accessories |
| — |
No additional accessories included in the box |
| Optional Accessories |
| CAB-CONSOLE-RJ45 |
RJ45 Console Cable for configuration |
| CISCO-SM-NIM-CARRIER |
NIM Carrier Module for SM-X slot conversion |
| RACK-MOUNT-KIT |
Standard rack-mounting accessories for 4000 Series ISR |
[/accesories]

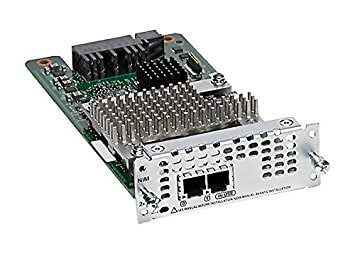

Cisco NIM-2FXSP Expansion Module for Increased Capability
Cisco NIM-2FXSP Expansion Module has hosting solutions of Cisco 4000 series integrated services routers (ISRs). It has evolved from the advanced high-speed WAN interface card (EHWIC) that results in increased port density and module capability.
Key Benefits of Cisco NIM-2FXSP Expansion Module
Cisco NIM-2FXSP Expansion Module has three integrated slots on the 4000 series. It results in flexible configurations and supports online insertion and removal (OIR). This improvement also helps in reducing downtime.
